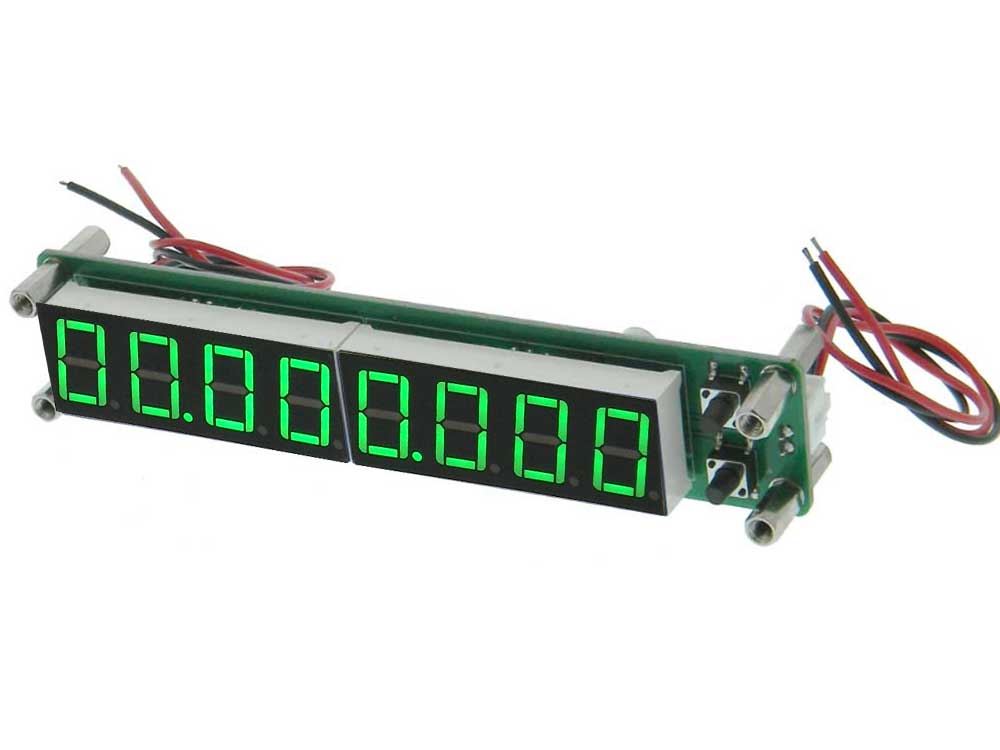

PLJ-8LED is a cost-effective microprocessor based, eight-digit digital frequency display. It can be used for conventional frequency measurement. Features: small size and reliable performance.
Settings are automatically saved
Processor: Microchip PIC16F648A
Power: 9V ~ 15VDC (with reverse polarity protection )
Operating current up to 160 mA
Eight 0.56in. High brightness Green LED Display
8 Display Brightness settings (factory set to the highest)
Zero auto blanking,
2.5ppm Voltage Controlled TCXO Frequency reference
Unique gate control & accurate time algorithm (non-timed interrupt mode).
Multi Gate time:
Three Measurement modes (Low, High & Automatic)
Low Frequency Mode
Range: 0.1 MHz ~ 60 MHz
Accuracy: ± 100Hz (0.01sec. Gate)
± 10Hz (0.1 sec. Gate)
± 1Hz (1.0 sec. Gate)
1 MHz to 60 MHz: better than 60 mVPP
High Frequency Mode
Range: 20 MHz to 2.4 GHz
Accuracy: ± 6400 Hz (0.01sec. Gate)
± 640Hz (0.1sec. Gate)
± 64Hz (1.0 sec. Gate)
Sensitivity : 20 MHz ~ 30 MHz: Better than 100mVPP
30 MHz ~ 60 MHz: Better than 50mVPP
60 MHz ~ 2.4GHz: Not tested
Automatically selects the High or Low Mode according to the input signal frequency, The crossover frequency is 60 MHz.
DC IN: HX2.54-2P socket
RF IN: HX2.54-2P socket
ICSP: (programming interface) 2.54-6P pin L: 4-7/8 W: 1 H: 7/8 WT: .12
