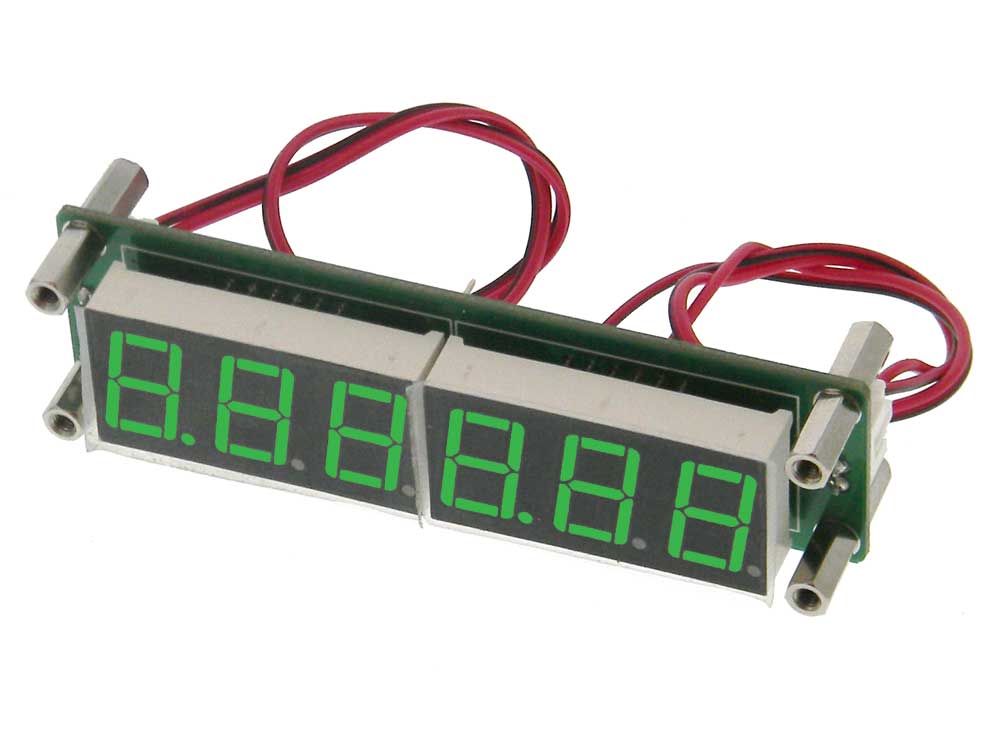

PLJ-6LED is a cost-effective microprocessor based, six-digit digital frequency display/counter. It can be used for conventional frequency measurement or as a transceiver band displ;ay.
Features: small size and reliable performance.
Settings are automatically saved
Processor: Microchip PIC16F648A
Power: 8V ~ 15VDC (with reverse polarity protection )
Operating current: <90 mA
Display: 0.56in. High Brightness 7 segment Green LED
8 Display Brightness settings (factory set to the highest)
Zero auto blanking,
2.5ppm Voltage Controlled TCXO Frequency reference
Unique gate control & accurate time algorithm (non-timed interrupt mode).
Dual IF Offset Adjustments (Independent + & - adj.)
Range: 0.1 MHz ~ 65 MHz
Accuracy: ± 10Hz (0.1 sec. Gate)
Sensitivity: 1 MHz to 60 MHz: better than 60 mVPP
DC IN: HX2.54-2P socket
RF IN: HX2.54-2P socket
ICSP: (factory programming interface) 2.54-6P pin
INCLUDES 6in. PIGTAIL POWER & INPUT LEADS L: 3-5/8 W: 1 H: 7/8 WT: .08
