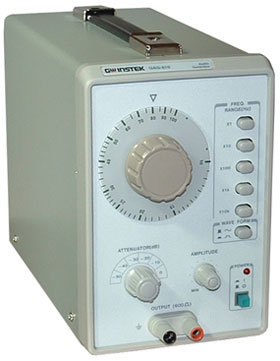

MFG: Instek
Model: GAG-810
Power: 120VAC 50/60Hz
Bench top Frequency generator covers 10 Hz to 1MHz in 5 switch select ranges. Top handle. CE Listed. Includes: AC Cord, 1M Alligator Clip cable, Manual
OUTPUT:
Connections: Banana Jacks
Waveforms: Selectable Sine or Square Wave
Rise/Fall Time: Square : <200nS
Level: 0-5rms 600ohms.
Attenuator: Selectable 0,-10,-20,-30,-40,-50db
SYNC INPUT:
Connection: Rear Panel Banana Jacks
Impedance: 150K ohms
Sync. Range: +-1%/Vrms
Input: Sine Wave 0-15V(DC+ACpeak)
Distortion: 500-20KHz: <0.02%
100-100kHz: <0.05%
20-500KHz: < 0.5%
10-1MHz: <1.5%
H: 8.27" W: 5.2" D: 11.5" WT: 6.2
Generator & Accessories Shp: WT: 7.3
