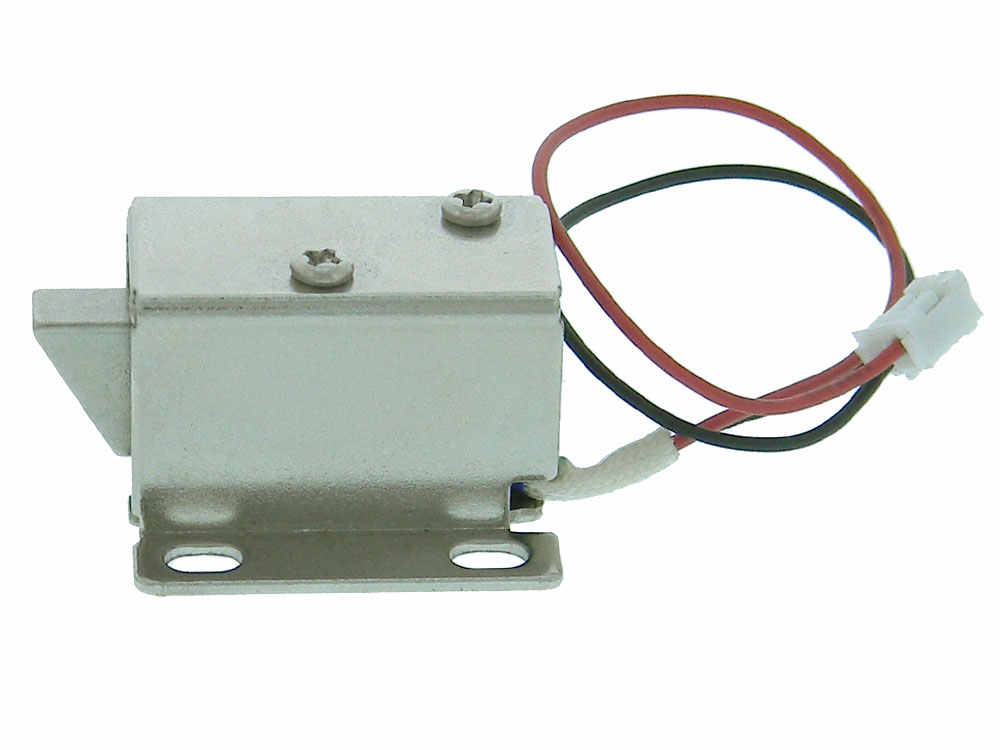

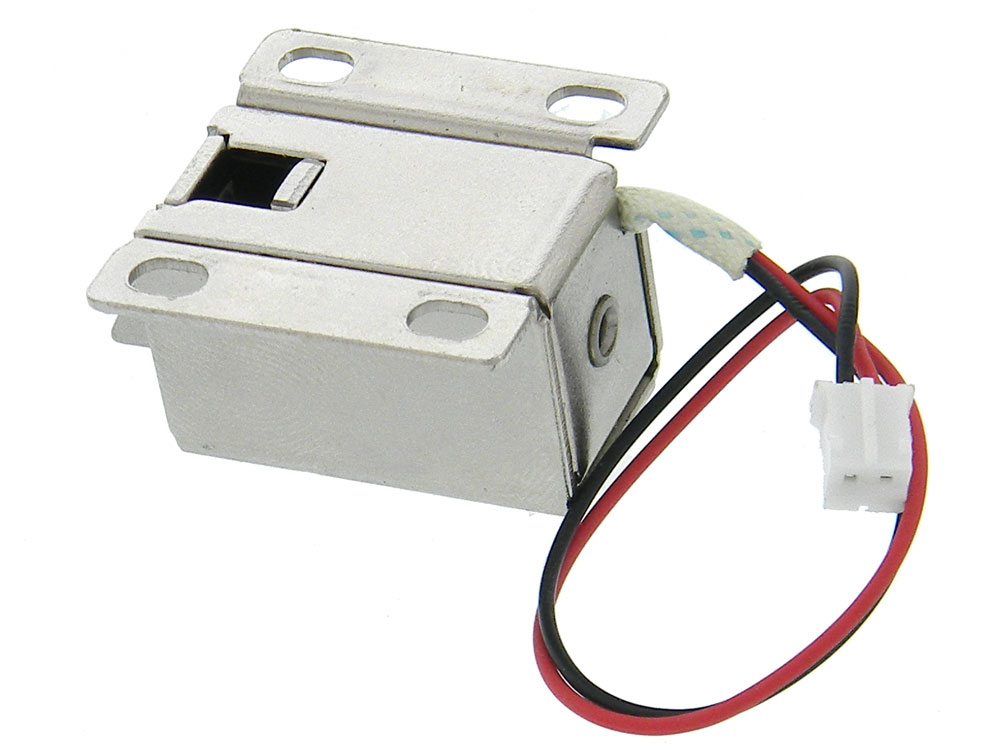

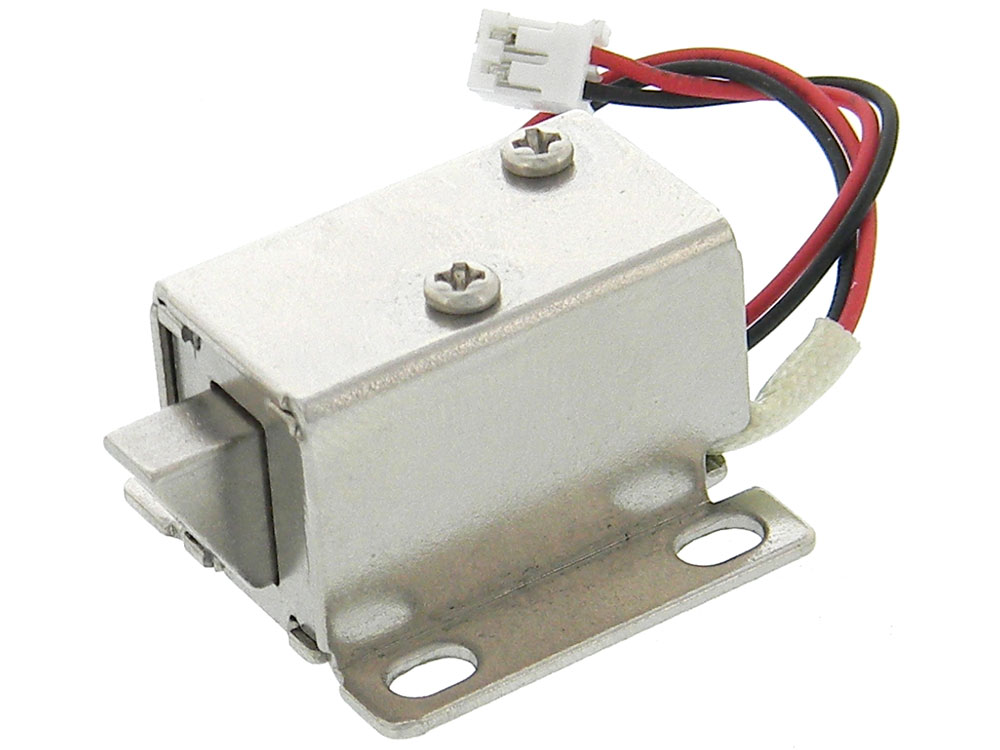

Electric Strike Drawer Lock - 6-12VDC - Upper Latch
Nickel plated steel body. Upper latch For security drawer, cabinet or window. Fail locked, open when energized
Voltage: DC: 6V @ 0.8A /12V @ 0.4A
Energized time: Recommended 0-5 seconds
NOTE: Should not be energized frequently or for extended time as will cause excessive lock temperature.
Retraction length: ~4mm
4" Wire leads to micro connector.
4 Slot adjustable Mounting. L: 27mm W: 27mm H: 20mm WT: .1
