Dual Panel Meter AC: 80-150V DC: 0-600V

Dual Panel Meter AC: 80-150V  DC: 0-600V

34842-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 34842 ME
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$16.95
$8.95


Availibilty: In Stock   Units: 14
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

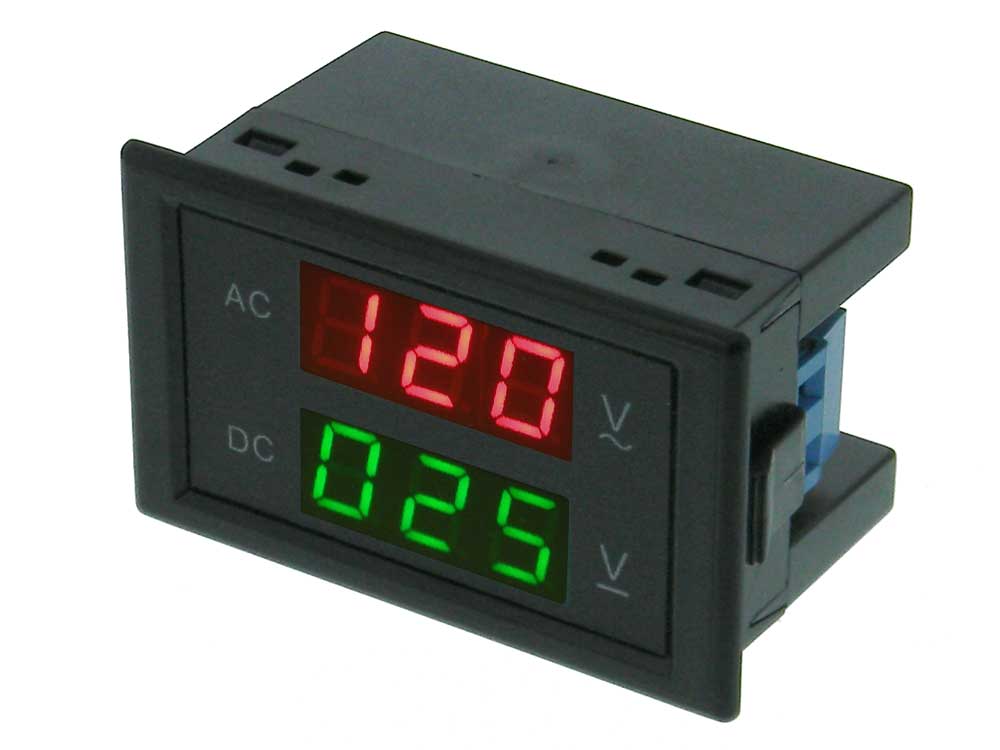

Snap-in LED panel meter contains both a 3 digit AC Volt Meter (Red) and a 3 digit DC Volt meter. (Green)
NOTE: AC & DC are Isolated from each other
The Meter Requires the AC be applied for powering

Character Height: 0.39in.
Voltage:
AC: 80-150V Resolution: 1V
DC: 0-600V Resolution:1V NOT POLARITY SENSITIVE
Accuracy: 1% +-2LSD
Cutout: 68mm X 38mm
W: 2-3/4" H: 1-5/8" D: 1-9/16” WT: .25

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
Easy to Read but Lacks Low-voltage DC Resolution
This dual-display panel meter works as advertised and has large, bright, easy-to-read red and green numerals. The AC voltage reading was very accurate on the meter I received, but the DC reading was 2 volts off at 30v. While not recommended for the fainthearted, the snap-together case can be opened and the circuit board removed to access trim pots that allow the AC and DC displays to be calibrated. My only negative comment is that the large DC voltage range is not auto-ranging, even though each digit display has a decimal point that could be used to show tenths or hundredths of a volt at lower ranges. For a high-voltage power supply of several hundred volts where a whole-number display would be appropriate, this would be an excellent meter having the added benefit of simultaneously monitoring AC line voltage. The whole-number DC display makes it much less useful as a 12v, 24v, or 48v battery system monitor.
- Bud, KS
