Dual "H" Bridge DC Motor Driver

Dual

35567-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35567 MP

Be the first to review this item
$22.95


Availibilty: In Stock   Units: 21
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET

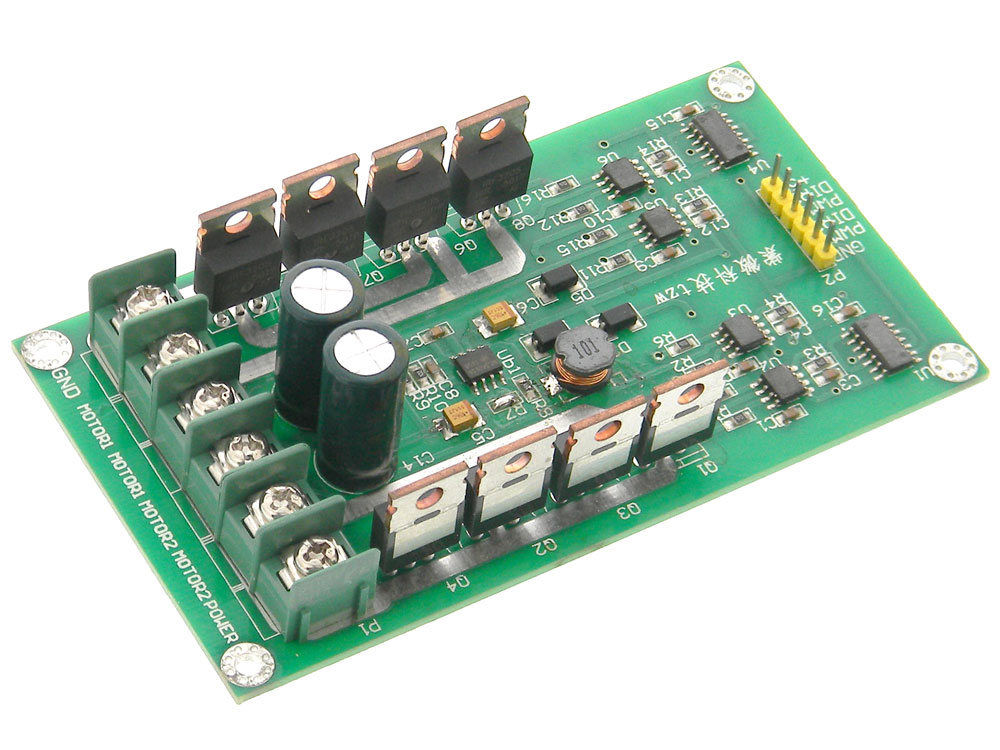

Dual Half-Bridge Driver board for microcontrollers. Drives 2 DC motors. Uses PWM driven IRF3205 MOSFET transistors for low switching losses.
Logic Power: 5VDC
Motor Power: 5-35VDC
Output: 10A Max (Above need Heatsinks for transistors)
NOTE: Transistors must be Electrically Isolated from Heatsink
PWM Input: Logic levels from microcontroller 0-99% duty cycle
Motor Forward: DIR = logic "1" PWM =Waveform 0-99% Duty
Motor Reverse: DIR = logic "0" PWM = Waveform 0-99% Duty
Breaking: DIR = X PWM = logic "0" (X is an arbitrary state)
NOTE: Cannot operate at 100% Requires either a "0" or a waveform
Connections: 6 Pin Header, 0.1" Pitch for Logic Input & Power
Terminal Strip for Motor Outputs & Power
L: 4-1/4" W: 2-3/8" H: 1-1/8" WT: .13
