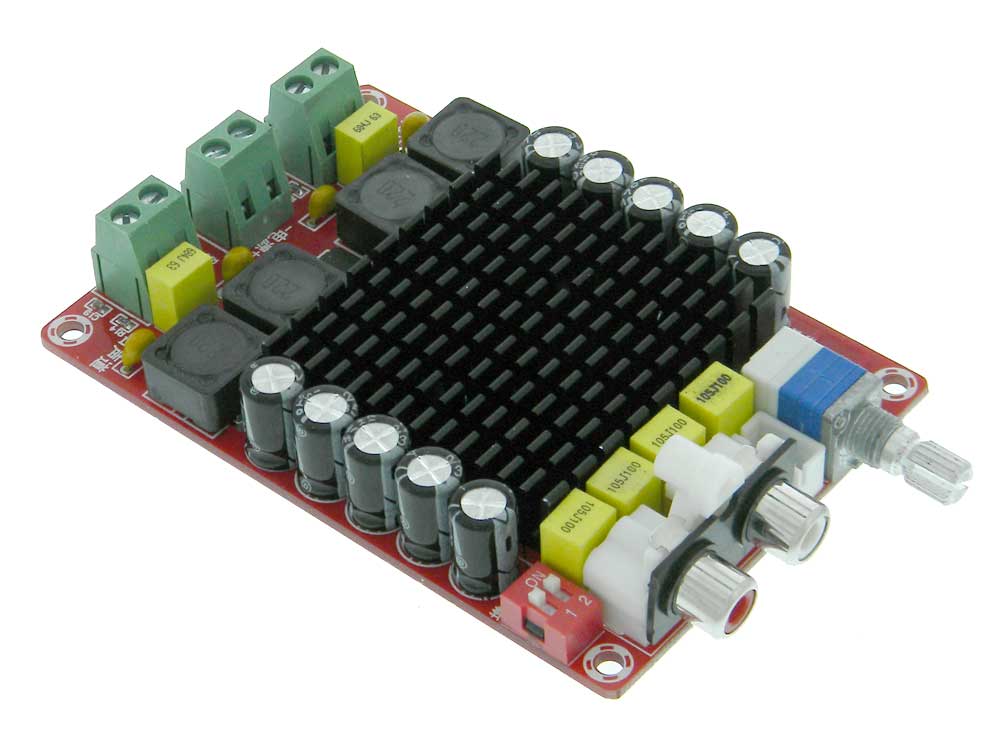

Dual 100W Class D Amplifier Module, TDA7498

Dual 100W Class D Amplifier Module, TDA7498

34447-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 34447 MP
 Review Average:
 Number of Reviews: 5
 View ReviewsReview this item

Availibilty: In Stock   Units: 15

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

Compact Class “D” stereo amplifier using the TDA7498 BTL (Bridge Tied Load) Chip. Over temperature & Output Short protected.
4 Fixed Gain Selections: 21.6db, 27.6db, 31.1db & 33.1db
Min Impedance: 6 Ohm
S/N Ratio: 110db
Power Supply Volts: Max 36V with 6Ohm Load (100 + 100W)
Max 34V with 8Ohm Load (80 + 80W)
Power Supply Current: <6A Load Dependent
Audio Inputs: 3 Pin, 0.10” Pitch Header
Left & Right RCA Jacks
Onboard Volume Control Pot with Knob
Outputs: 2X Terminal strips
Power: Terminal strip
Power “ON” LED
L: 4-1/2” O/A W: 2-1/2” H: 1” O/A WT: .22

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Home gym amplifier
I drive 2 Bose 301s with this amp in my home gym and the sound is superb, more than loud enough with no clipping or muddiness. I wish I had a use for another one.
- Dave King, KY
Works well. Compact & efficient
I wanted a small amplifier to use with a tablet computer and a couple of speakers in the kitchen. Space is at a premium. Its footprint is smaller than the tablet, and it scarcely gets warm at all. Sounds good! Im happy.
- Karl, CT
More information on the TDA7498
This is a very interesting article if you are considering buying one of these as I am. https://trevormarshall.com/class-d-tutorial/ The hardware is very similar to that in the article.
- Brian Wilson, OR
Great little amplifier
The subwoofer channel on it comes through really clear with little clipping at high volumes when you have the settings correct. I powered it with 24v supply
- S Johnston, GA
Just so so
Ive used many TDA7498 amp boards in projects in the past so I thought Id give this one a chance in my next powered speaker project. Ive tested this on many different speaker systems and types and find inferior sound. Little bass, muddy mids...and total lack of wattage output..even when gain set at highest. May not even be a 7498 but a Chinese one-off. Poor components make a second rate amplifier.
- Robert Lewis, AZ
