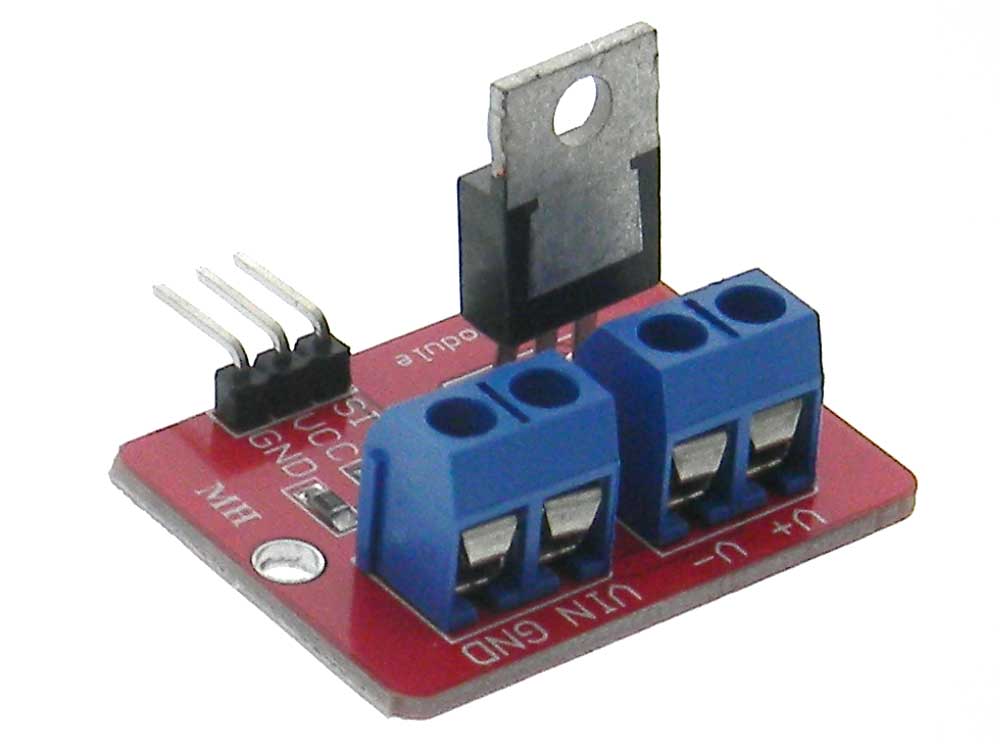

Driver Board for DC Motors

Driver Board for DC Motors

35380-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35380 MD
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$0.99


Availibilty: In Stock   Units: 56
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


Simple Driver board for interfacing Logic to DC Motors, solenoids etc.
A basic breakout board using the IRF520 MOS transistor
Low side switching (Current Sink, +In & + Out are Connected)
Power Input: 5-30VDC
Output: ~5-24V 50W
5Amax (Above 1A use a heatsink)
Trigger: 3.3-5V (Logic compatable)
Connections: Terminal Strip for Power In/Out
Logic: 3 pin .1" pitch Header
LED I nput signal Indicator
L: 1-5/16" W: 1" H: 1" WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
works good with DC motors
have not had any problem with any of my DC motors, solid investment on my part.
