Doppler RADAR Motion Sensor 3.2GHz
Stock No: 34685 MP
Review Average:
Number of Reviews:
3
View Reviews
|
Review this item
$1.95
$1.49
Availibilty:
In Stock
Units:
816
Quantity
SHARE
Tweet
Share
Detailed Description
DATA SHEET
Schematic

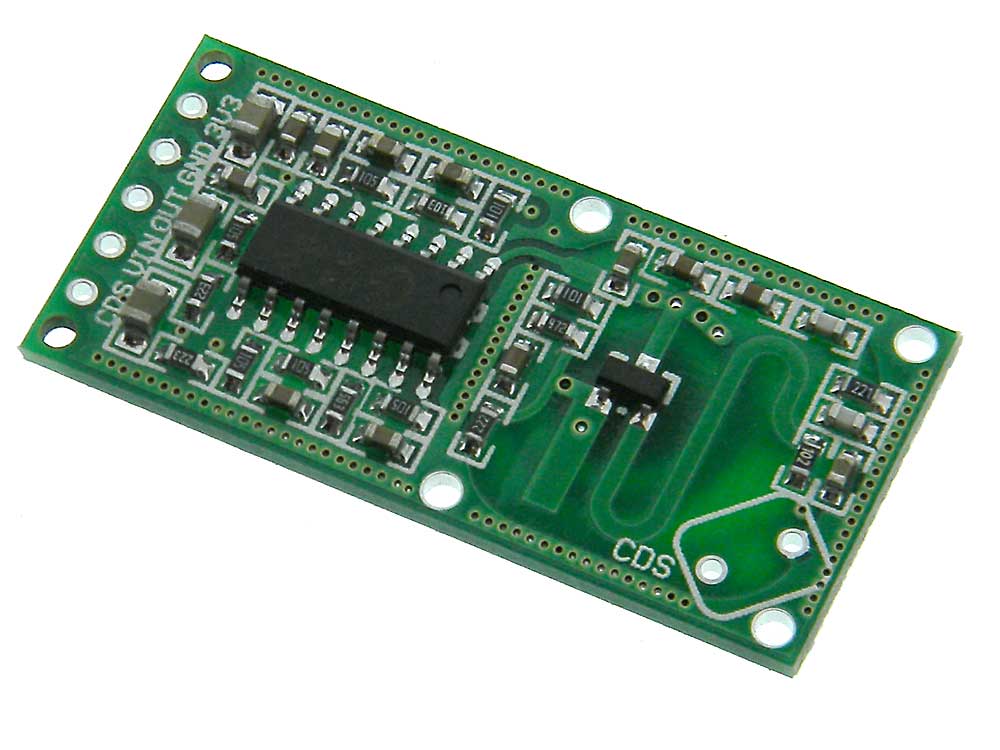

Doppler RADAR module using the RCWL-9196 chip that supports repeat trigger, and 360 degree detection area with no blind spot. Best sensitivity is component side.
Supports: Output On/Off
Adjustable repeat trigger time and detecting distance by
add the SMD components to the corresponding Pads
Specifications
Power: 4-28VDC @ <3mA
Detection Range: ~5-9m
Frequency: ~ 3.2GHz
Transmitting Power: 20mW (typical); 30mW (max)
Output Level: ~3.4V High <0.7 Low
Output Drive: ~100mA
Output Timing: ~2sec Retrigger with motion
Operating Temperature: -20~80 celsius
Storage Temperature: -40~100 celsius
Terminals: 0.1 Pitch solder holes
L:
1-3/8
W:
13/16
H:
3/16
WT:
.005
WARNING:
This product can expose you to chemicals including
Nickel
which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Product Reviews
Click here to review this item
New use
Just mounted one of these into A Mason Jar connected to a low power transmitter. Now have a driveway alarm for less than $5.00! Use my Ham rig as the receiver. Solar powered to boot.
- Carl Lyster, TN
Unbelievable price for a radar
Worked to about 18 feet. Draws about 2.8 mA in standby.
- Frank, IA
Very sensitive
This detects human motion even thru an interior wall! Range about 20 feet, bigger objects perhaps further. Easy to hook-up and very low power.
- Carl L., TN
