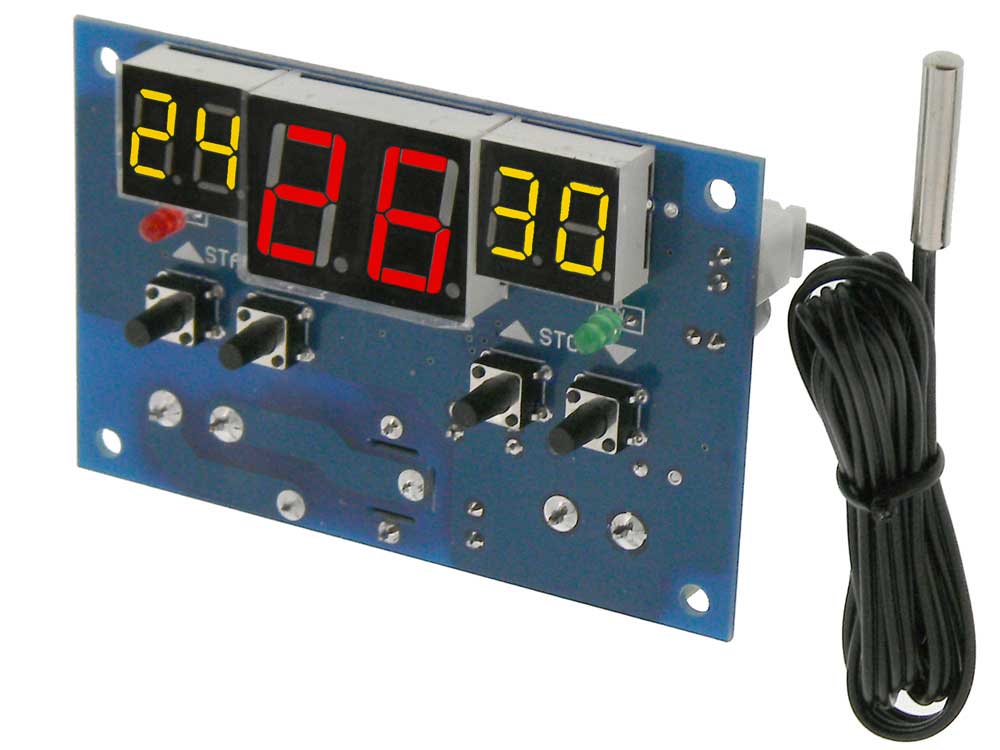

Compact, microprocessor based, dual threshold digital PID thermostat with isolated relay output for cooling and heating applications. Three, 2 digit LED displays for Ambient, Start & Stop temperatures.
Features: Programmable set Points:
“Start” point closes Relay, “Stop” point releases Relay. Retains Settings with Power Removed
Temperature Range: -9 to +99 deg. C
Power: 9-14VDC (12VDC nominal) <1W
Refresh rate: 0.5sec.
Accuracy: Measurement: 1deg.
Relay: SPST-NO 10A/250/125VAC/30VDC
Sensor: 10K ohm NTC probe (1m leads)
Operating Temp. Range: -10 to 60deg. C; 20-85% humidity
Terminal Strips for Power & Relay contacts. W: 3-1/6” H: 2-1/16” D: 1-1/16” WT: .12
