Digital Multimeter 4 Digit True RMS


Digital Multimeter 4 Digit True RMS
Stock Number: 35999 TE
  Be the first to review this item
$19.95


Availibilty: In Stock   Units: 94
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

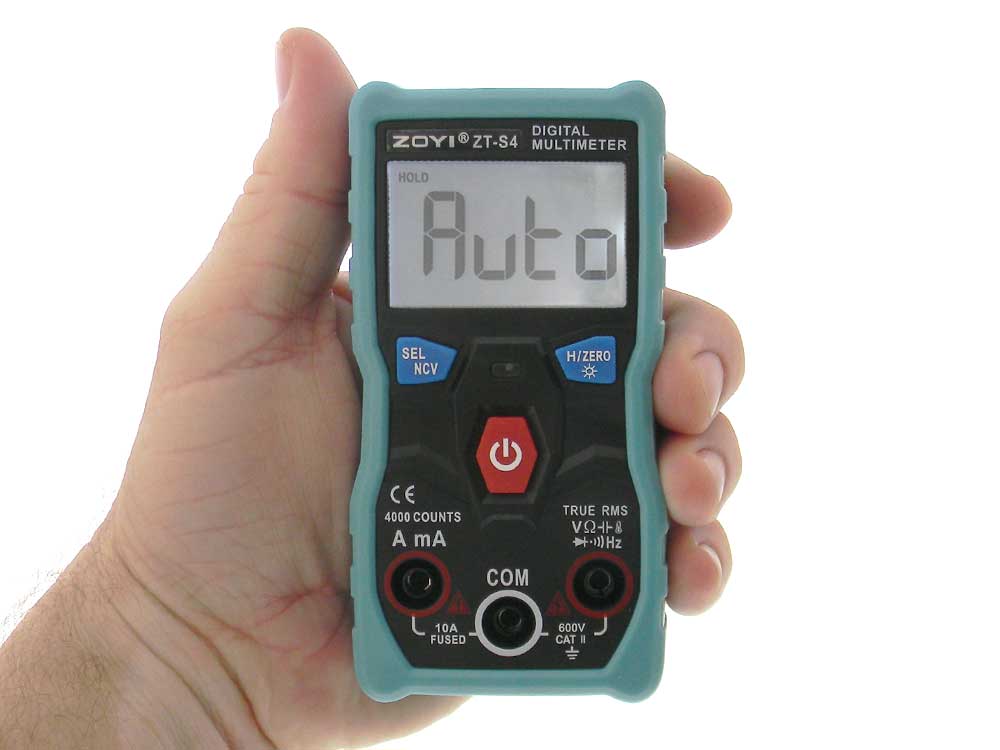

4 Digit 4000 count Pocket Size, True RMS Auto Range multimeter with Backlight & Auto Off (~15min)
10 function, Backlight, .7" height LCD display.

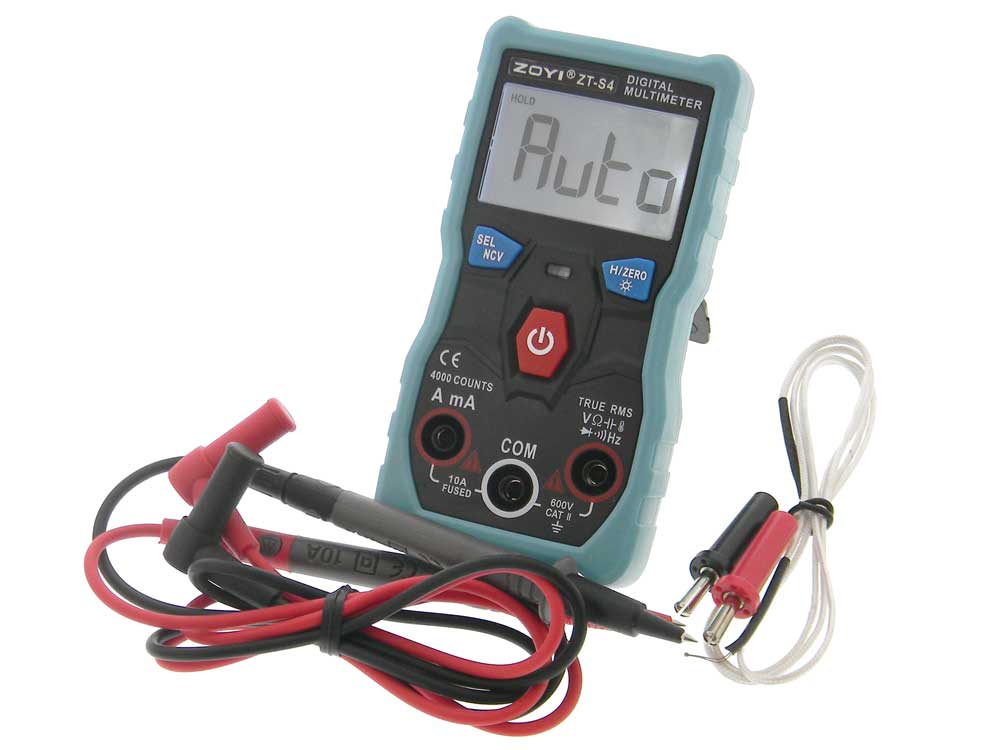

Includes: 30" test leads, 30" Temperature probe, instructions
Fuse Overload protection.
CAT II/600V
SPECIFICATIONS
DC VOLTS: 4.000V/40.00V/400.0V/600V Accuracy: 0.5%+3 LSD
AC VOLTS: 4.000V/40.00V/400.0V/600V Accuracy: 1.0%+3 LSD
DC CURRENT: 999.9mA Accuracy: 1.0%+4 LSD
9.999A Accuracy:: 1.0%+4 LSD
AC CURRENT:
999.9mA Accuracy: 2.0%+3 LSD
9.999A Accuracy: 2.0%+3 LSD
RESISTANCE: 4.000k ohm Accuracy: 1.5%+3 LSD
40.00k ohm/400.0k ohm/4.000M ohm Accuracy: 1.0%+3 LSD
40.00M ohm Accuracy: 1.5%+3 LSD
CAPACITANCE: 4.000nF Accuracy 5.0%+20 Counts
40.00nF/400.0nF/4.000F/40.00F/400.0F Accuracy: 3.5%+4 LSD
4mF Accuracy: 5.0%+5 LSD
FREQUENCY: 4Hz-10MHz Accuracy: 1%+2 LSD
TEMPERATURE: -30C to 1000C (-22F to 1832F) Accuracy: 3%+5 LSD
DIODE
CONTINUNITY: <50 ohm Buzzer
NCV: (Non-Contact AC V Near field)
Requires 2 AAA Batteries (Not Included)
L: 4-5/8" W: 2-3/8" T: 1-1/8" WT: .55
