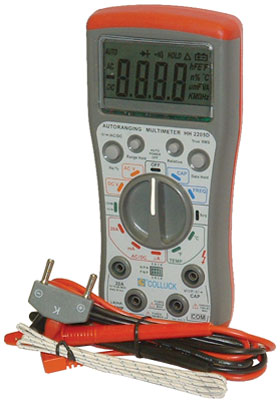

UL Listed, Auto Ranging, Quality 3-3/4 digit (4000 count) DMM with .8" char. ht. LCD display. Data & Range Hold, AC & DC voltage/Current, Frequency, Resistance, Temerature, Capactance, Fused input. Includes Test leads & Temp. probe
Batteries not Included (2 X AA)
DC VOLTS .4V to 1KV, Accuracy .8% +1 LS digit, Impedance 10 Mohm
DC CURRENT 400uA to 20A, Accuracy 1.2% + 5 LS digit, 2% +5LS digit on 20A. Overload .5A Fuse on uA,mA. 20A: 15sec on/30min off. Fused @ 20A
AC VOLTS 4V to 750V, Accuracy 0.8% +8 LS digit, Impedance 10 Mohm
AC CURRENT 400uA to 20A, Accuracy 1.2% + 8LS digit, 3%+5 LS digit on 20A, Overload fuse.
20A: 15sec on/30min off. Fused @ 20A
RESISTANCE 400 to 40M Ohm, Accuracy .8% + 5LS digit, 1.2% + 10LS digit on 40M Ohm.
CAPACITANCE 4nF-100uF, Accuracy 6%+6 LS digit on 40nF, 2% +5 LS digit other ranges
FREQUENCY 4Hz-400KHz, Accuracy .1% + 3 LS digit,
250V max
DUTY CYCLE 0.1%~99.9%, Accuracy1.2% + 2 LS digit, Pulse Width: 100uS~100mS
TEMPERATURE
C: -20~ 300deg Accuracy 3deg. C + 3 LS digit
F: -4~ 572deg Accuracy 3deg. F +6 LS digit
OTHER Continunity buzzer <20Ohm,
Diode/Transistor HFE
T: 7-1/4" W: 3-3/8" D: 1-3/4" WT: 1.1
