Desktop Computer ATX Power Supply Breakout Adapter


Desktop Computer ATX Power Supply Breakout Adapter
Stock Number: 38335 MI
  Be the first to review this item
$3.95


Availibilty: In Stock   Units: 26
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

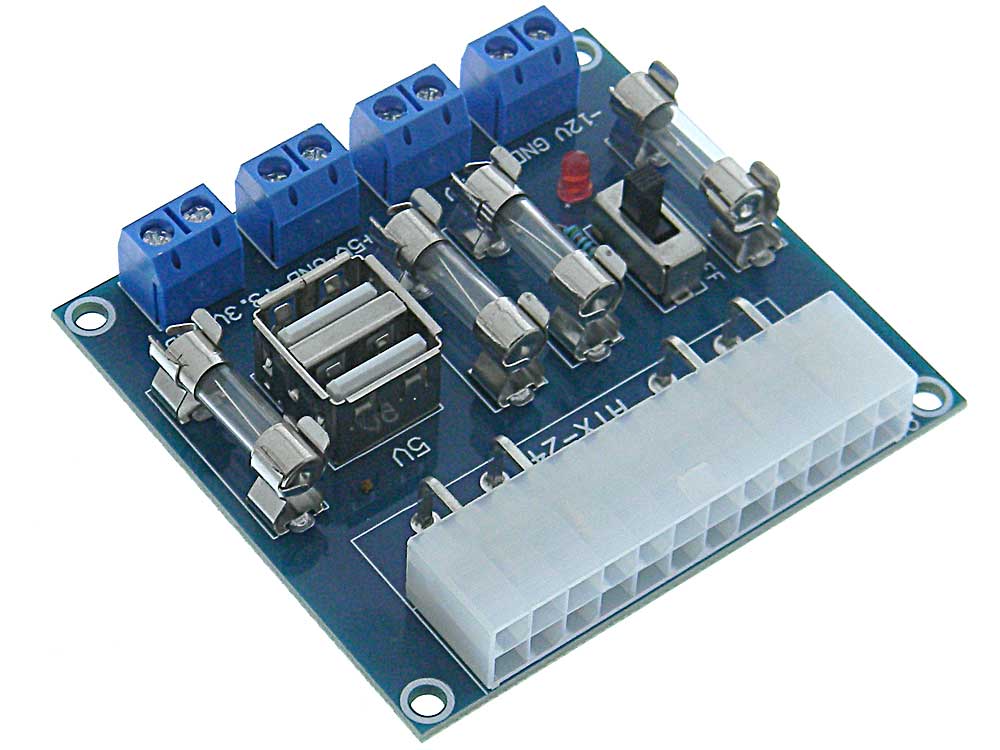

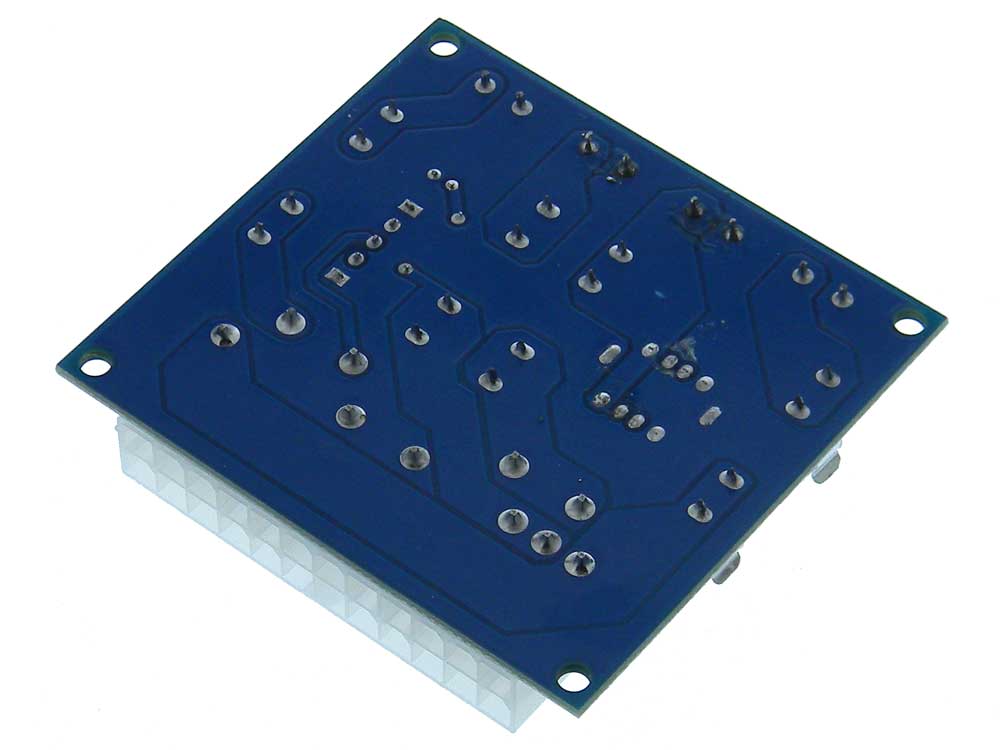

Handy board to use to breakout & enable ATX power Supplies for testing or converting for other uses.
Slide Switch to enable Power Supply.
Power Active LED
Terminal strips for Outputs.
2 USB Type A Jacks. (Powered from the +5V terminal Strip output 5A max total)
All Outputs Fused at 5A
24Pin Connector for power supply, Terminal strips for Voltage breakout.
If power supply has 20Pin Connector; insert in board connector at the end with small Dot on the board.
Grounds (GND) are common
Paired by Voltage
-12V to GND, GND is the positive pole, -12V is the negative pole, the voltage is DC-12V
+12V to GND, +12V is the positive pole, GND is the negative pole, the voltage is DC+12V
-12V to +12V, +12V is the positive pole, -12 is the negative pole, the voltage is DC24V
NOTE: -12VDC is a Low current output, <300ma limitting the 24VDC to ~300mA (Some Supplies may have higher output Check Nameplate on your supply)
+5V to GND, +5V is the positive pole, GND is the negative pole, the voltage is DC+5V
+3.3V to GND, +3.3V is the positive pole, GND is the negative pole, the voltage is DC+3.3V
W: 69mm (2-11/16" L: 64mm (2-7/16" H: 14mm (5/8") WT: .08
