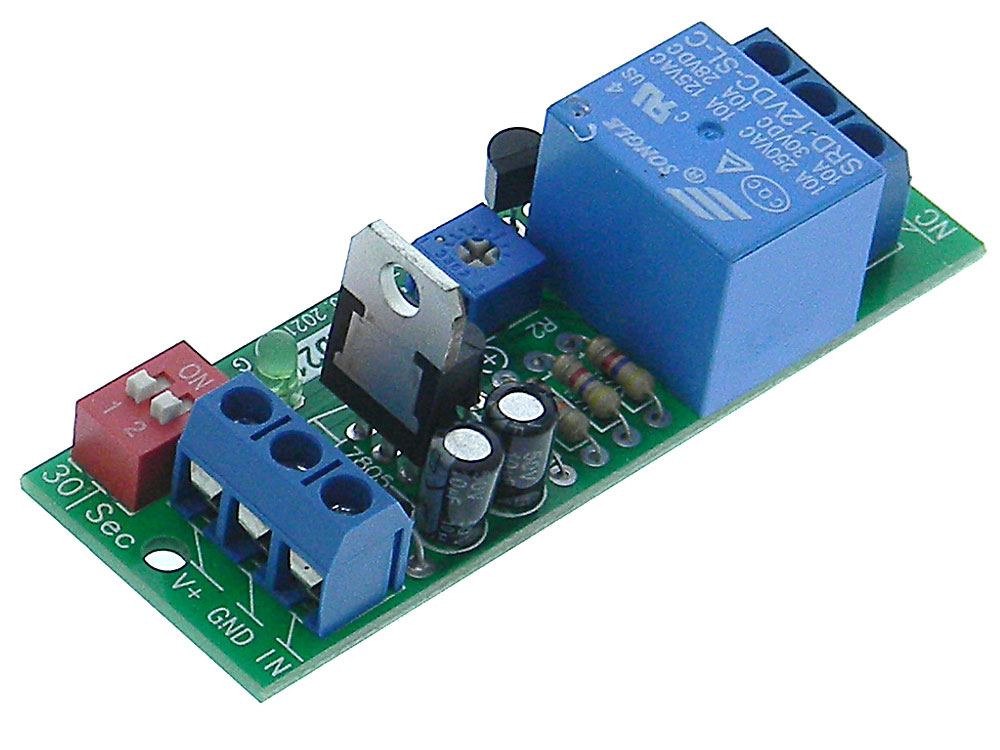

Delay on Break Relay, 4 Range - High Trigger - 12VDC


Delay on Break Relay, 4 Range - High Trigger - 12VDC
Images/37719-large.jpg   California Proposition 65 Warning
Stock Number: 37719 RL
  Be the first to review this item
$6.95


Availibilty: In Stock   Units: 6
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

General use Delay on Break relay module provides 4 Adjustable Timing Ranges.
Momentary Trigger Input turns ON Relay. Delay starts AFTER Trigger Signal is removed.
After Delay, Relay turns OFF.
Power: 12VDC @ <50mA energized
Trigger: HIGH level signal : >1V <20mS (Power +)
Range:
A: 0.2 sec. to 30 sec, accuracy: 0.1 sec.
B: 0.2 sec. to 300 sec. (5 min.), accuracy: 0.3 sec.
C: 0.2 sec. to 30 min, accuracy: 1.8 sec.
D: 0.2 sec. to 300 min. (5 hours), accuracy: 18 sec.
NOTE: Control is a single Turn. Precise Adjustment
is tricky
"Energized" LED flashes during countdown.
Relay: SPDT 10A @125/250VAC/28VDC .
Terminal strips In & Out.
Operating Temperature: -25°C ~ 85°C
Humidity: 5% to 95% RH
L: 70mm (2-3/4”) W: 25mm (1") H: 20mm (3/4”) WT: .06
