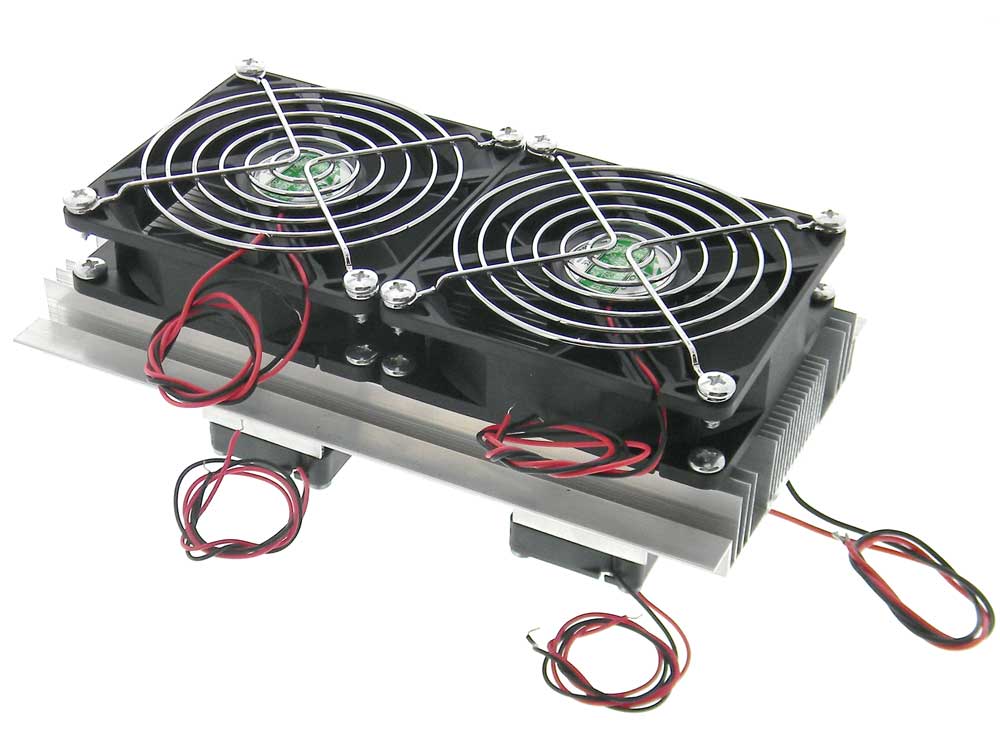

12VDC, Dual TEC module heatpump assembly with Hot and Cold Side heatsinks and fans.
NOTE: Do Not Operate without the fans
A suitable cold side insulated enclosure is required.
Hot & cold side airflo must be isolated from each other.
Current: ~9.5A @12VDC
TEC Modules: 2x TEC1-12706
Max. Voltage: 15.4V
Max. Current: 6.4A
Qmax (watts): 50W@25ºC Hot Side 57W@ 50ºC Hot Side
Delta T max: 66ºC@25ºC Hot Side 75ºC@50ºC Hot Side
Cold: 2x 1-9/16"sq x 7/16"
Hot: 2x 3-5/8"sq x 1"
Wire Leads: ~10"
Heat sink (120*200*25MM) L: 7-7/8" W: 4-11/16" H: 3-5/8" WT: 1.8
