DC System Monitor 0-33V. 0-9.99A


DC System Monitor  0-33V. 0-9.99A
Stock Number: 36386 ME
  Be the first to review this item
$11.95


Availibilty: In Stock   Units: 10
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

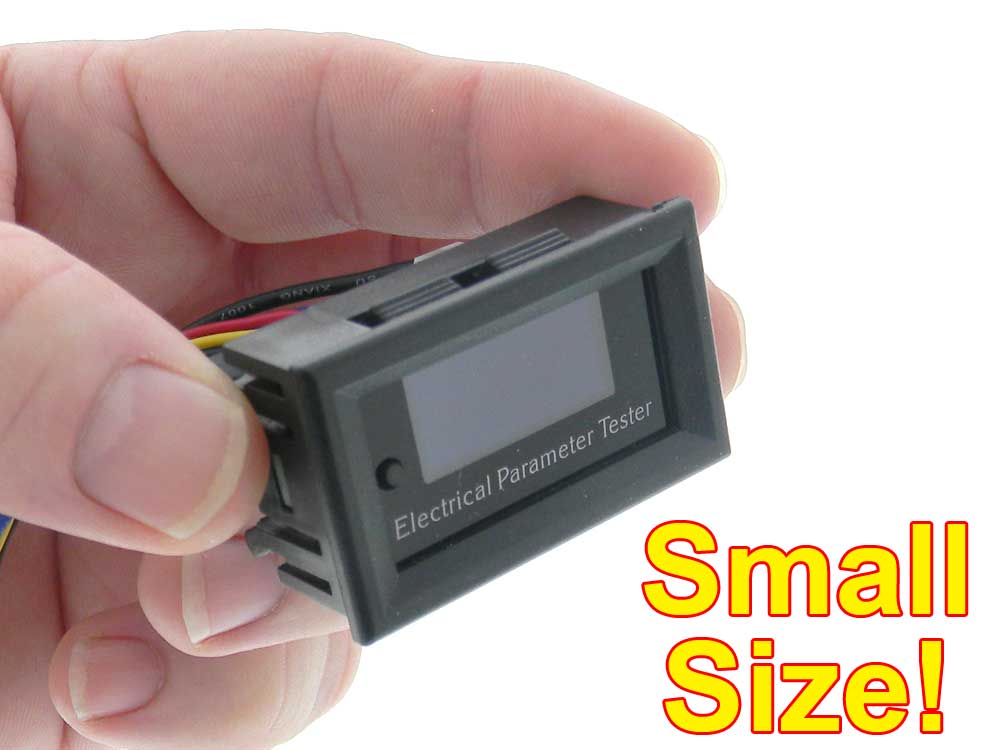

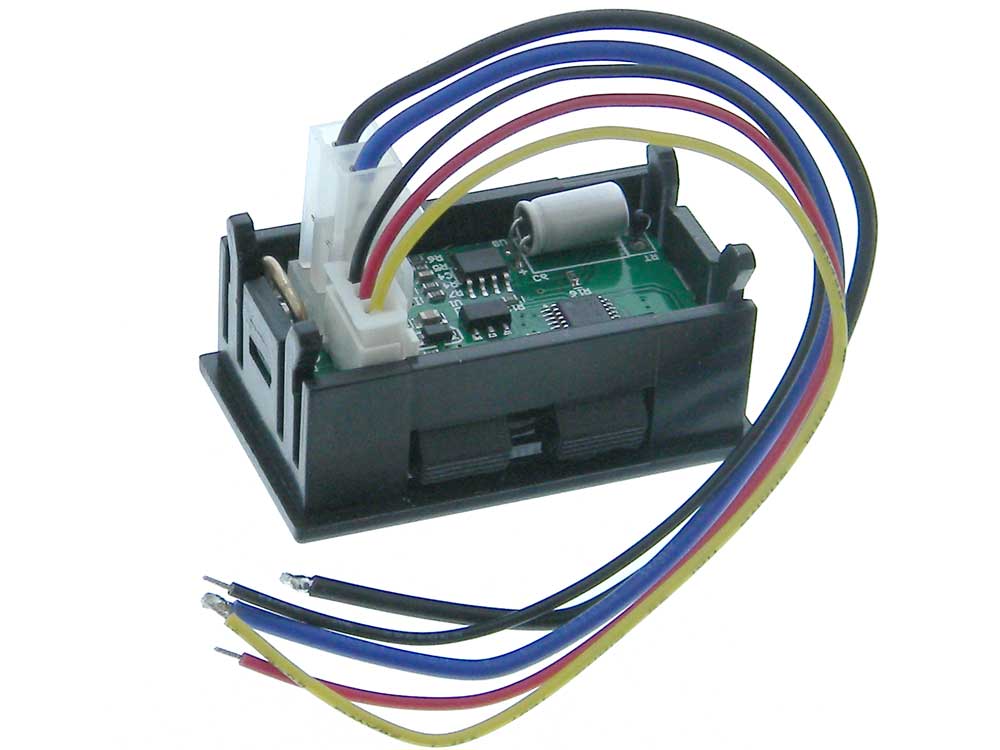

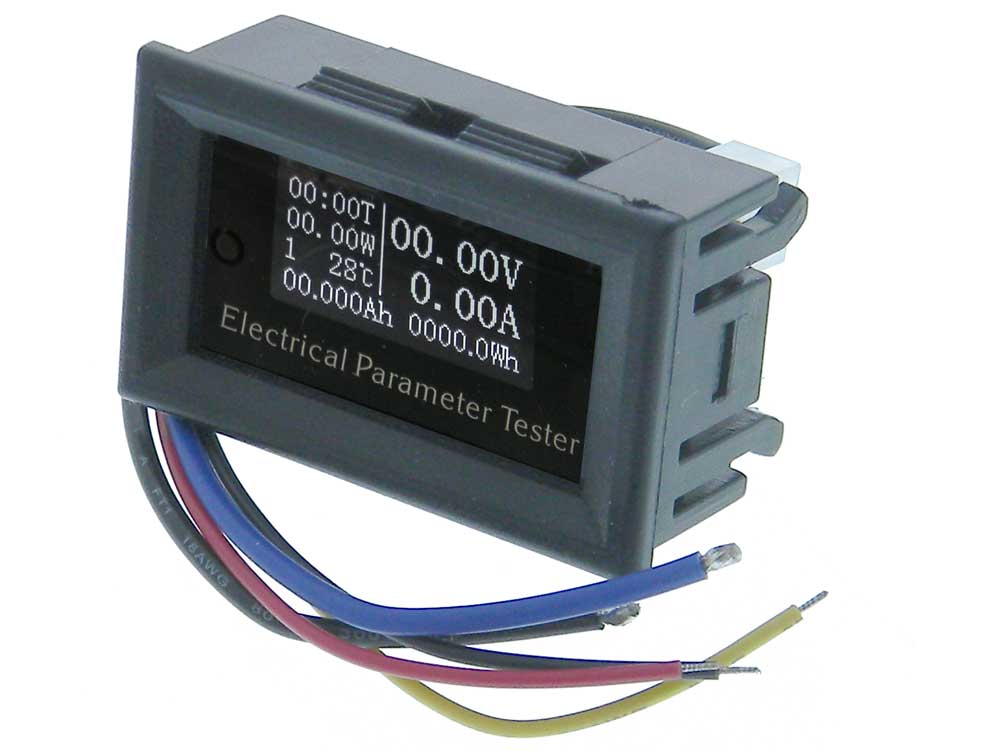

TINY, snap-in 7 function DC power monitor with a White OLED Display. Measures: Load Voltage, Current & Watts, Energy used, Capacity (Battery), Run Time & Temperature.
Smallest Character Hight: ~2mm
Meter Power: 4-20V
Voltage Measurement Range: 00.00-33.00V DC
NOTE: 0-20V when using a Common Power Source
Current - & Power - are Internally Connected
Accuracy: (0.3% + 2 digits)
Current Range: DC0.00-9.99A
Accuracy: (0.8% + 3 digits)
Time Range: 0-99h59min
Power (W) Range: 0-99.99W-330.0W
Temperature Range: -15 C to 60 C
Capacity Range: 00.000-99.999Ah
Energy Range: 0-3300.00Wh
Cutout: 46mm x 27mm
W: 1-7/8" H: 1-1/8" D: 1" (Body) WT: .06
