DC Over-Under Current Detector, 12VDC, 10A


DC Over-Under Current Detector, 12VDC, 10A
Stock Number: 38420 MI
  Be the first to review this item
$10.95


Availibilty: In Stock   Units: 13
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

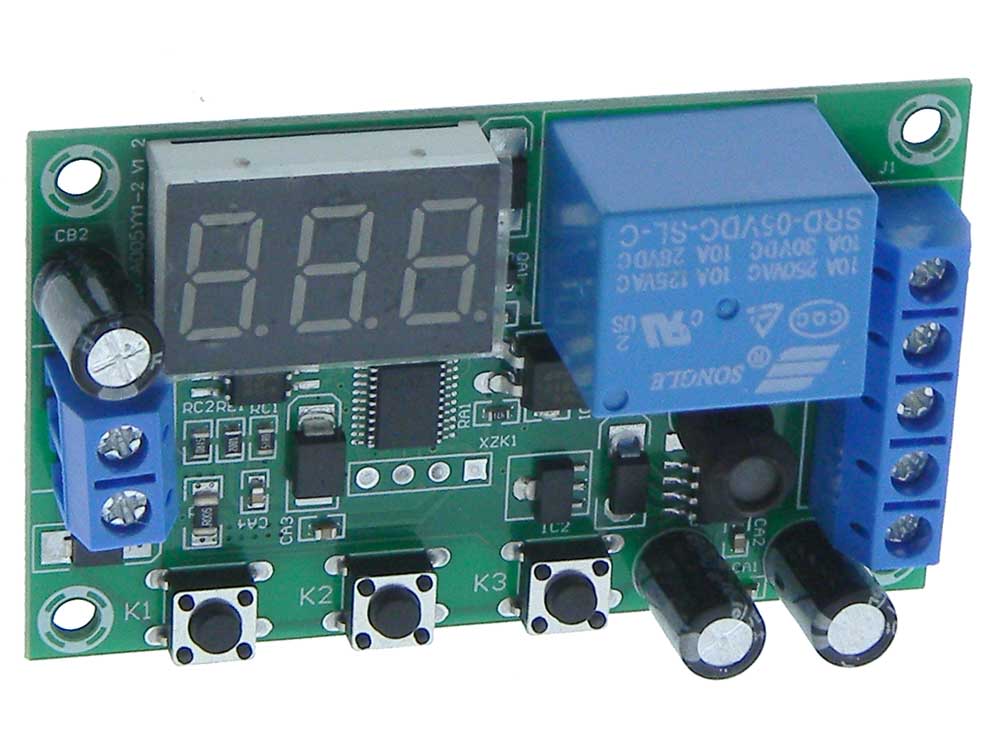

Sensor board for montioring Over and Under current flow in a 12VDC load. Isolated Relay contacts provide output oportunities for alarms, fans, load control.
Adjustable High & Lower Limits
Selectable Modes for the relay output.
NOTE: Load is Connected Between IN+ & IN- Terminals. DC- (Minus) and IN - Are Common.
Load Power Is Supplied By The Board .
Removing Power From Board; Removes Power From Load.
Power: 12VDC
Standby Current: ~20mA
Load Current: 10A Max
Meausurment Range: DC 0~10A
Accuracy: 0.01A(10mA)
Display: 3 digit 0.36-inch Red LED
Relay: SPDT
Rated: 10A @ 251/125VAC/30VDC
L: 65mm (2-9/16”) W: 40mm (1-9/16”) H: 20mm (3/4”) WT: .06
