Constant Voltage or Current LED or Li Battery Driver/Charger
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

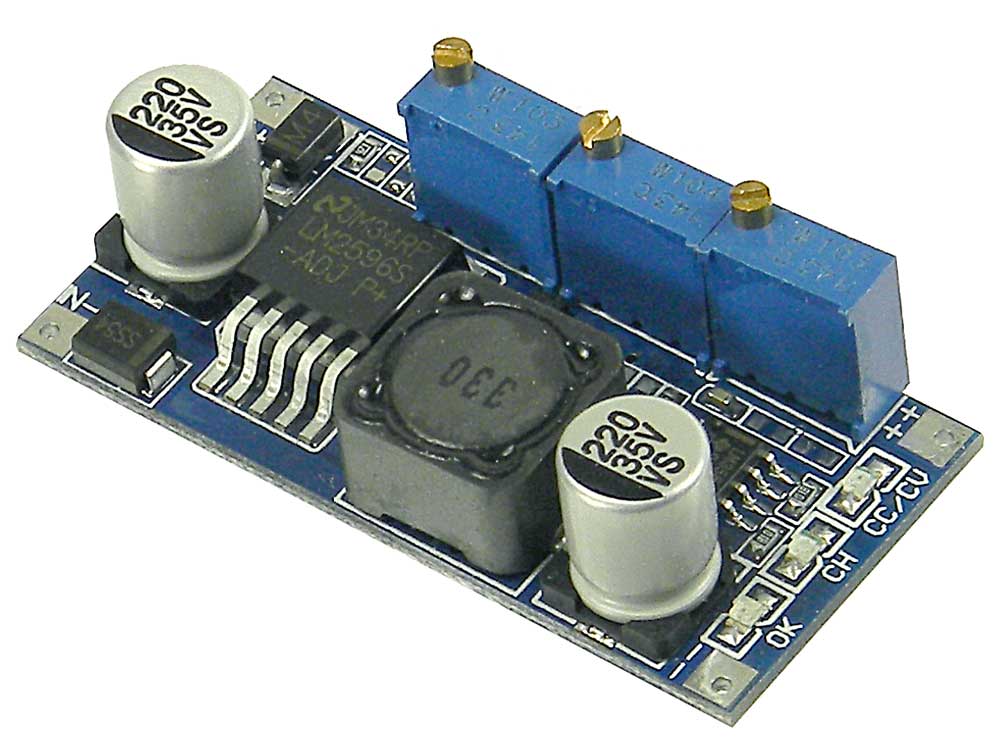

Non Isolated, adjustable DC/DC Buck (Step Down) Converter, Driver, Regulator with adjustable Constant Voltage out or adjustable Constant Current output for charging batteries or driving LEDs
Input: 5-35VDC Output: 1.5-30VDC
Input/Output Differential: 2V min.
Rated Current: 3A (10Watt limit without Heatsink)
Current limit: adj. 0-3A sets Max current
Charge Adj. : sets the threshold of toggle the Charg/Full Charge LEDs
Regulation: 1% L: 2" W: 15/16" H: 5/8” WT: .06
