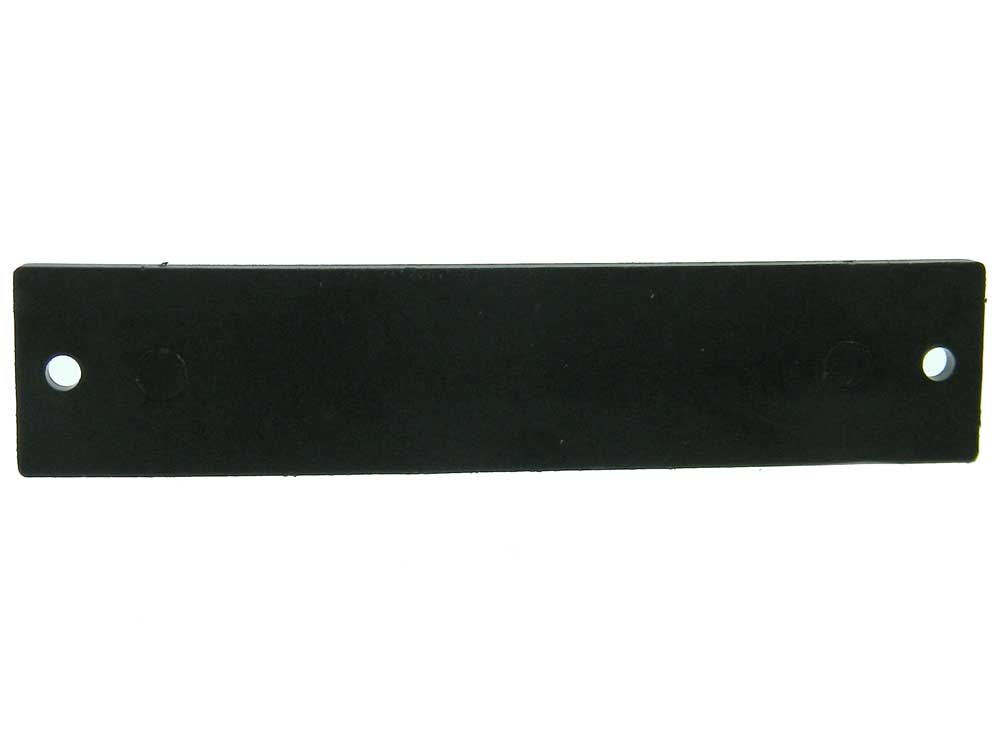

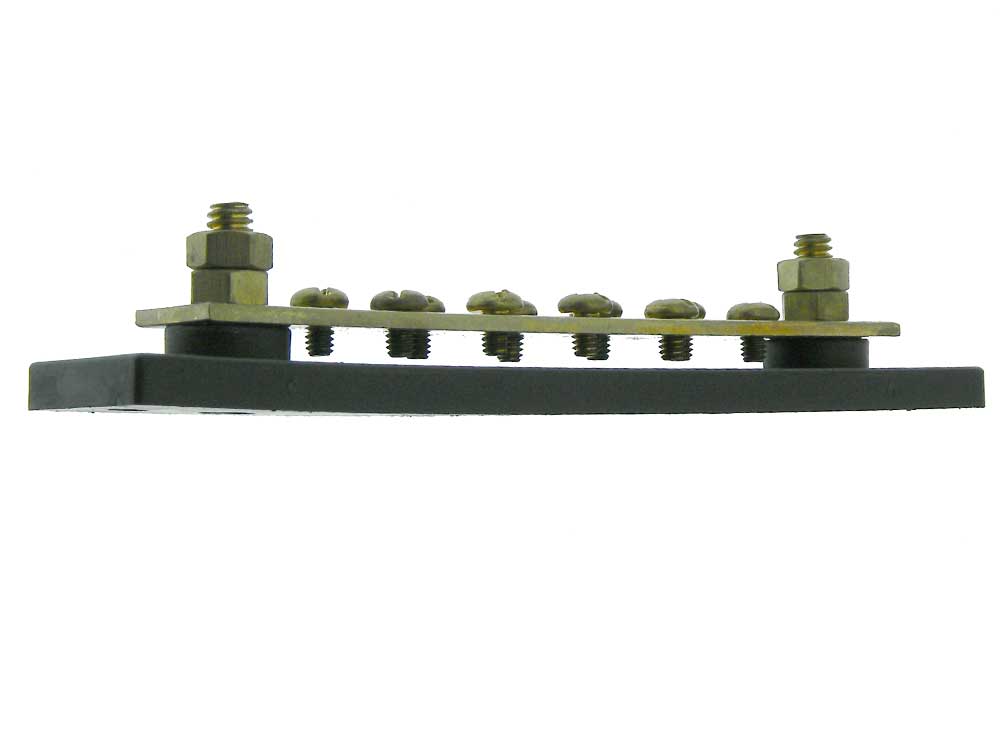

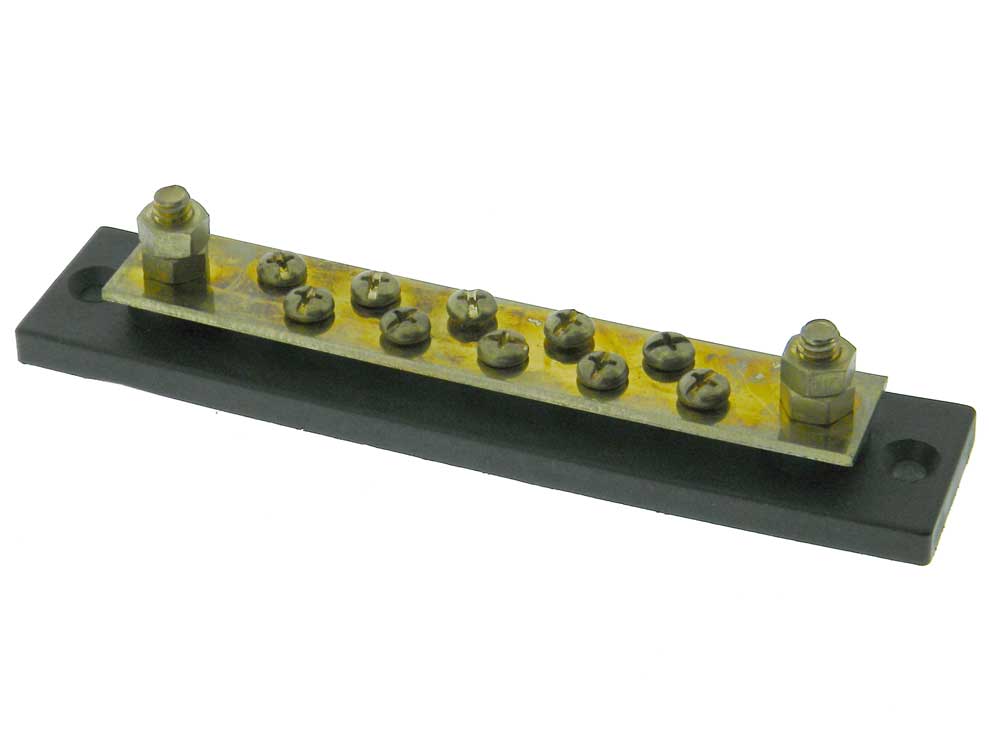

Insulated Brass Buss Bar for power or ground distribution.
Rated: 100A @ 48VDC/300VAC
Terminals: Dual 1/4-20 Main studs
10 #8-32 Distribution screws
Mounting: 2 holes 5-1/4 C/C L: 5-3/4 W: 1-1/4 H: 1-1/16 O/A WT: .28
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Remove large nuts
Remove brass bar
Remove small screws
Go to hardware store
Buy #8 x 1/2 stainless screws, nuts and lock washers
Screw in new stainless screws
Assemble bar with screws sticking straight up
Put nuts and lock washers on.
Makes this bar super easy to fit on a lot of wires safely without fumbling to start a screw.
This is an excellent conversion without peer.
