Battery Tester - State Of Charge - 0-100VDC

Battery Tester - State Of Charge - 0-100VDC
Stock Number: 37216 ME
  Be the first to review this item

Availibilty: In Stock   Units: 3

     Email this to a friend

Detailed Description

View PDF Data Sheet

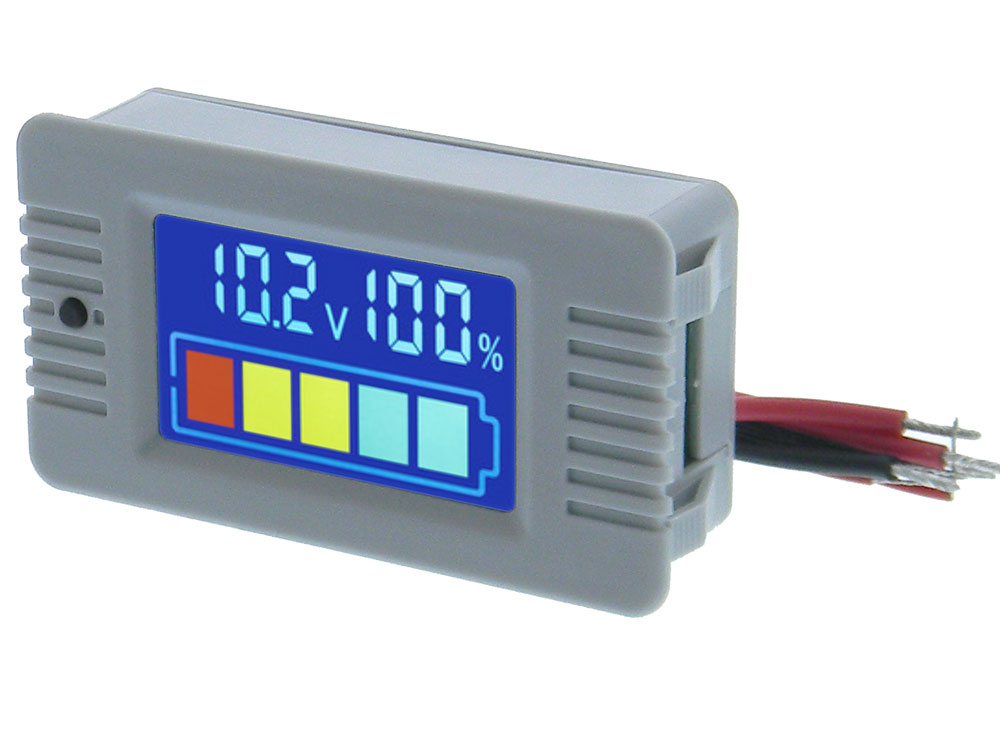

Panel mount State of Charge (SOC ) meter for batteries.
Color Graphics with backlight. LCD display shows % Charge, Voltage and "Fuel Gauge" segmented Battery Outline.
NOTE: you must Set High & Low Limits for the Battery you are using.
Retains Settings when OFF

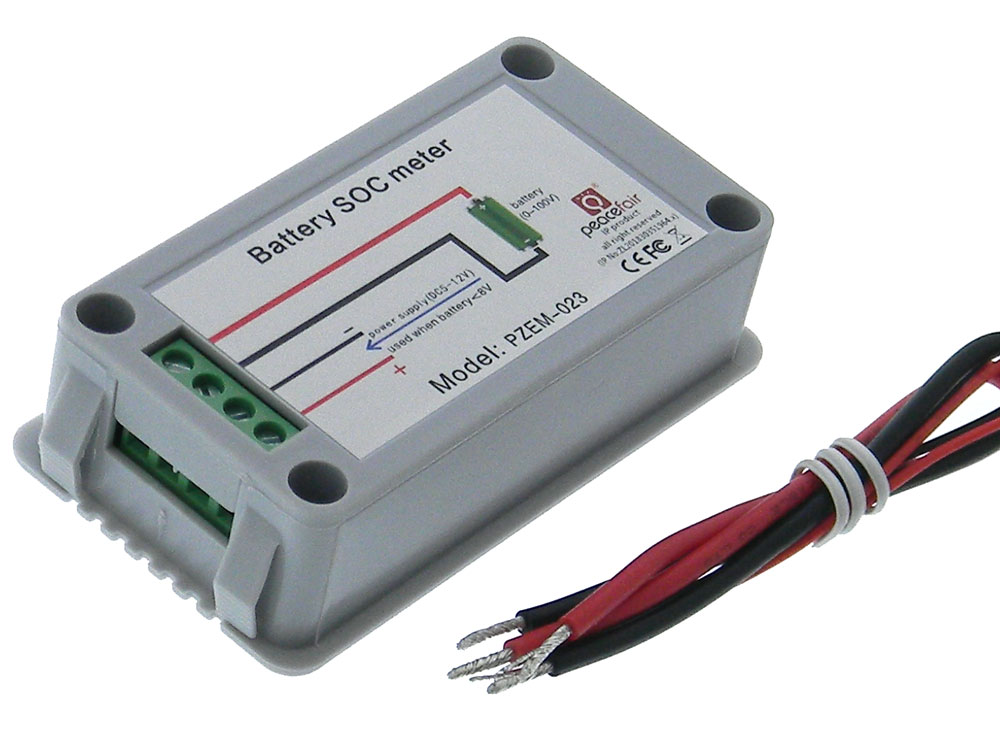

Direct Power supply:
Measurement range: DC8-100V
Individual power supply
Individual power supply range: DC5 to 12V max
Measurement range: DC0-100V
Display: Voltage:
<10V display format: 9.99V 10mV Resolution
<100V display format: 99.9V 100mV Resolution
100V display format: 100V
Accuracy: ~1%
Display: Percent
<10% display format: 9%
<100% display format: 99%
100% display format: 100%
Display: Battery Symbol (Five section)
90% + display full cells
80% SOC <80% display four cells
60% And so on……
Cut Out: 87x 47mm
W: 89.6mm H: 49.6mm D: 24.5mm WT: .25
