Battery Monitor Voltmeter 12VDC Round with Bargraph
Unique Battery monitoring DC Volt Panel meter.
For panels up to 3/4" IP62 Rating

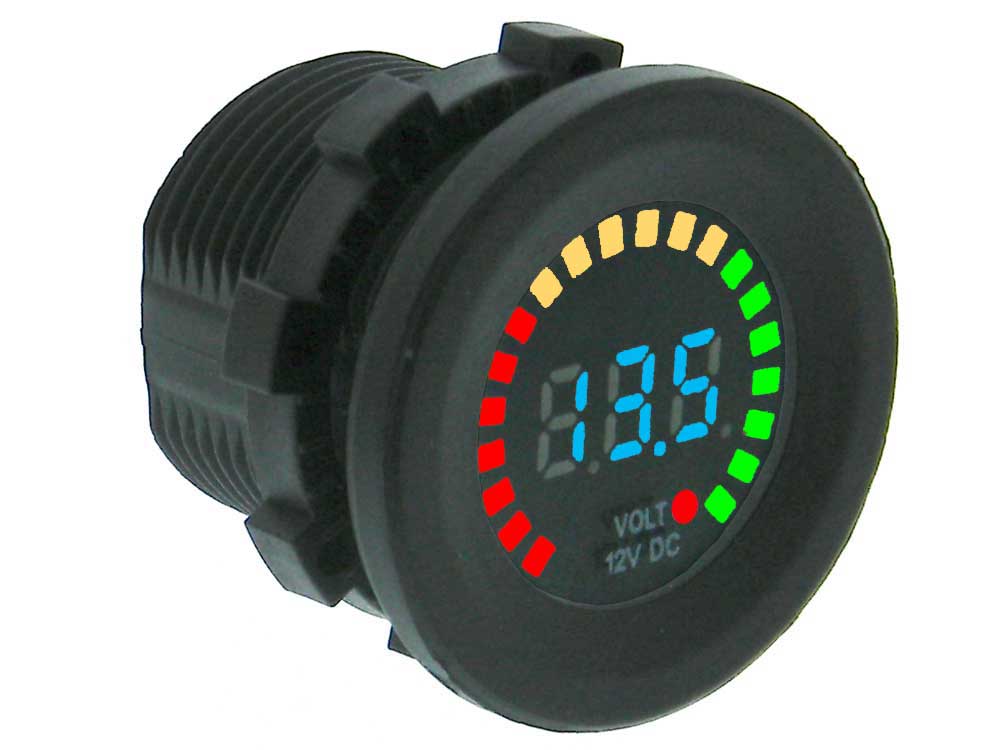

Round with a 3 digit Blue LED display and 20 segment Color Bargraph
Voltage Range: 10-24VDC 12 Nominal
Bargraph: 7 Red 6 Yellow, 7 Green segments
1 Red segment @ ~11.3V 7 Red @ ~11.9 V
1 Yellow @ ~12V 6 Yellow @ ~12.5V
1 Green @ ~12.6V 7 @ ~13.2V
All Flash @ ~15.0V
Character Height: ~.25"
Temperature: -25"C"~ +65"C"

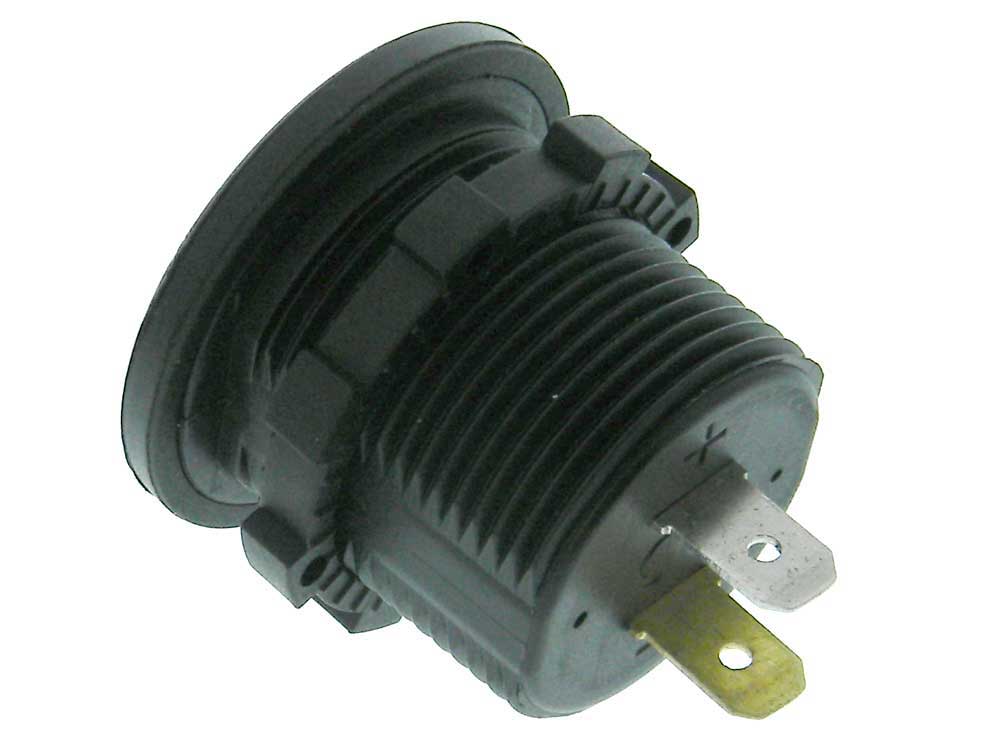

Terminals: 0.250" (6.35mm) Quick connect
Mounting Hole: 29mm Dia: 1-1/2" D: 1-1/4" Body/ 1-5/8" O/A WT: .05
