Battery Capacity Indicator, Lead Acid/LiPO


Battery Capacity Indicator, Lead Acid/LiPO
Stock Number: 35668 ME
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$7.95


Availibilty: In Stock   Units: 81
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

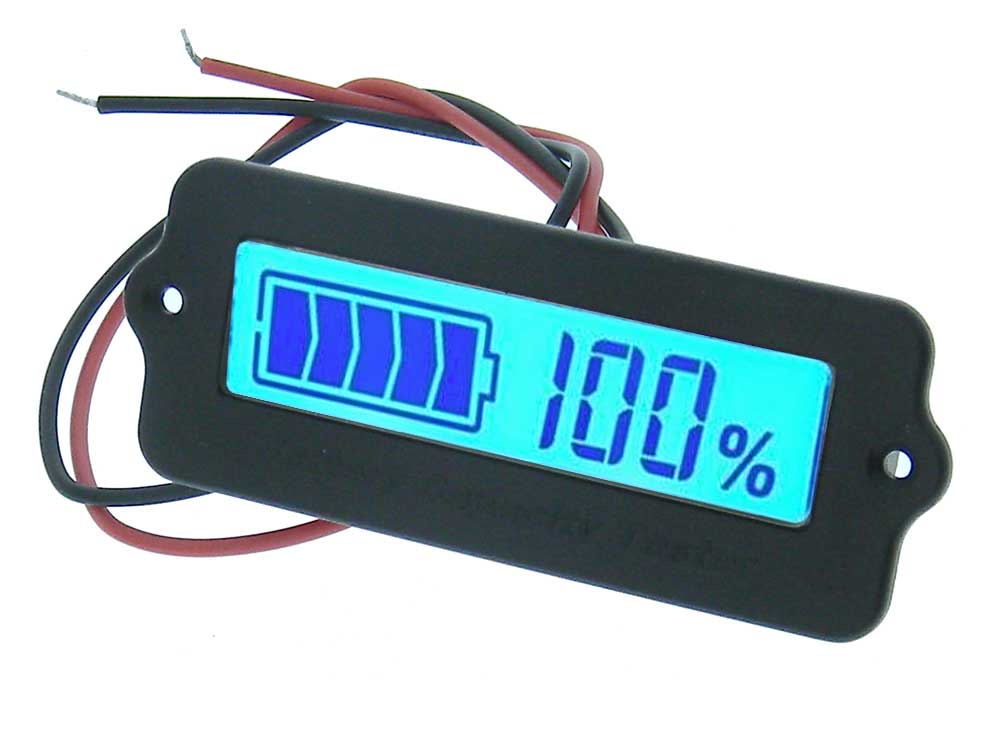

Panel mount charge meter for Lead Acid or Lithium batteries.
Blue backlight LCD display shows % Charge/Voltage and segmented Battery Outline
Select:
NOTE: Retains Settings when OFF
3-15 cell 3.2V Cell Lithium
3-15 cell 3.7V LiPO
or
12/24/36/48 Volt Lead Acid
Input: 8-60VDC
Micro connector with 7in. pigtail leads.
W: 2-3/8" H: 15/16" T: 5/8" O/A WT: .04


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Works well on LiFePO4 batteries
We bought a dozen of these to monitor the LiFePO4 batteries in parade floats. Monitoring capacity with voltage, as opposed to current, is imperfect, but these meters do a pretty good job of it. They're "damped", so use an average of a few seconds voltage to estimate capacity, and only use about 10mA at 12v. My only complaint is that I'd like the bezel/flange to be wider. Cutting a rectangular hole to mount them needs to be pretty precise. We built secondary bezels....
- Dave Parade Guy, CA
