Auto Forward - Reverse Cycling Motor Control - 12VDC

Auto Forward - Reverse Cycling Motor Control - 12VDC

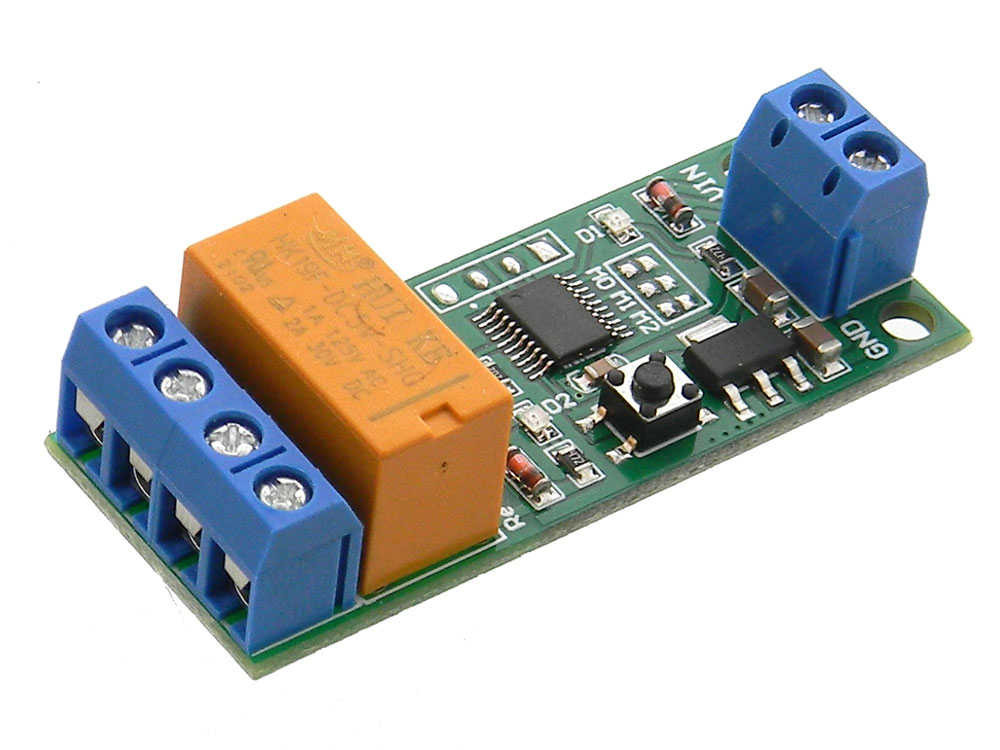

37217-large.jpg    California Proposition 65 Warning
Stock No: 37217 RL

Be the first to review this item
$8.95


Availibilty: In Stock   Units: 20
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

View PDF Data Sheet
DATA SHEET


Programmable timed control for motors & other cyclic uses. Set Forward & Reverse running time. Isolated Relay wired to reverse the polarity of the relay DPDT contacts. Cycles Forward/Reverse as long as Board is Powered. NOTE: Load Power must be removed to Stop motion, Removing Circuit Power stops the timmed cycle leaving motor running continous in one direction.
Load Power/Circuit Power are isolated
Circuit Working Voltage: DC 5-13V
Working Current: 5V: Forward: ~4ma/Reverse: ~36ma
12V: Forward: ~6ma/Reverse: ~44ma
Relay Load Rating: 30VDC @ 2A max or 125VAC @ 1A max.
Recommend 5-12VDC Motor <2A
Run time set by programming & 3 jumper selections for X1 to X8 running. X multiplier is same for both directions Forward & Reverse base time are independent
Forward time: up to ~5000 sec. (X1) to ~40000 (X8)
Reverse time: up to ~5000 sec. (X1) to ~40000 (X8)
Terminal Strips for Circuit (Board) Power, Load Power & Load
L: 2-1/8" W: 7/8" H: 5/8" WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
