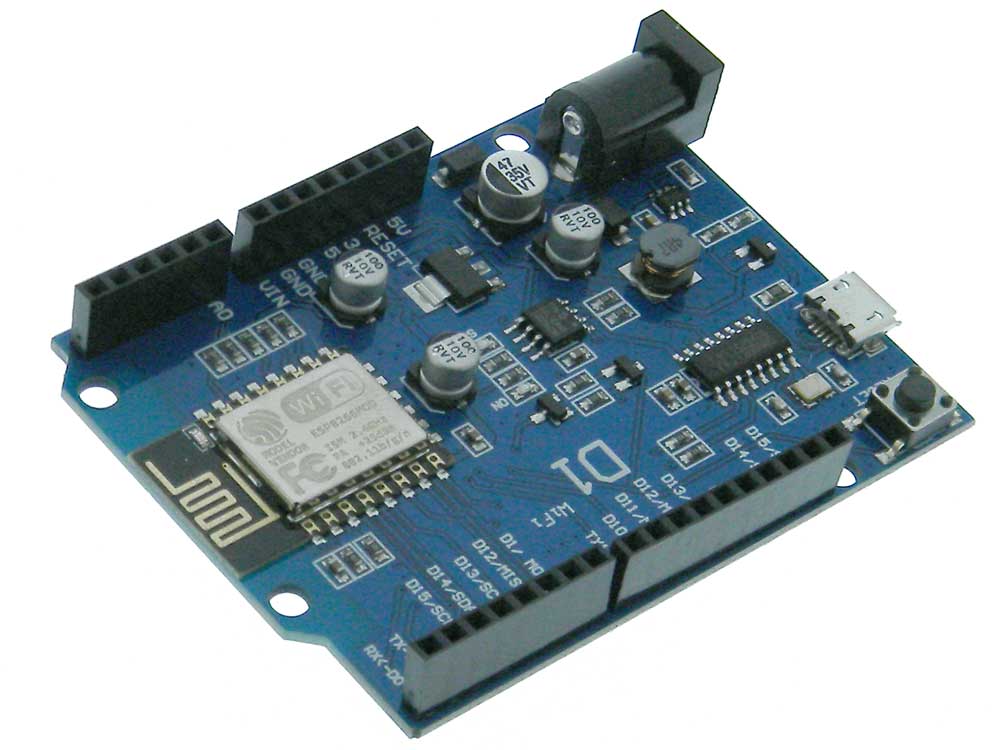

Arduino UNO Clone with WiFi

Arduino UNO Clone with WiFi

35097-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35097 MP
 Review Average:
 Number of Reviews: 4
 View ReviewsReview this item
$12.95


Availibilty: In Stock   Units: 71
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


WeMos D1 Arduino UNO-R3® WiFi (802.11 b/g/n) enabled compatiable controller. Same size & shape as UNO
Accepts most Plug-in modules for the Arduino controller.
NOTE: Programs using free Arduino IDE available from www.arduino.cc
Power: 9-24VDC Not included
Processor: 80Mhz ESP8266 RISC CPU
Digital I/O: 11 with PWM available on all
Analog Input: 1 (A0) (3.2V max) A1-5 not available
Memory: Flash: 4Mb
SRAM: 96Kb
EEPROM: 64Kb
USB Bridge: CH340G USB/TTL (Driver available from many sites)
.1in. Pitch female headers for direct connection to functions
USB port: Micro Type B female
Power Port: 5.5mm X 2.1mm Jack
L: 3” O/A W: 2-1/8” H: 3/8” WT: .04

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
difficult for beginners
finally found a site that could help me with the installing the ESP8266 software -https://randomnerdtutorials.com/how-to-install-esp8266-board-arduino-ide/
William

An ESP8266 dressed like an Arduino Uno
This board saves time when connecting to an ESP8266, all the work is done. It can be programmed from the Arduino IDE when the ESP8266 is added as an additional board under Preferences. Just search online and you can find advice on how to do it. I had success using the NodeMCU 1.0ESP-12E Module board selection and using 115200 baud on the serial connection. The native ESP8266 baud is 74880 if you want to see the boot message in serial monitor. The Generic ESP8266 board selection also worked on the Arduino IDE. Running a sensor and website on the board with no problem.
- Jerry Bowen, FL

Verified Purchase
good part good price fast shipping fast shipping 5 star
eBay

clone is junk!
This unit did not work from the get-go. The drivers are there but it will not communicate for downloading programs. Checked all the sites to see if I could learn anything, most said, get the real thing!
- William, MI
