Arduino ProMini Clone with Bootloader, ATMEGA168

Arduino ProMini Clone with Bootloader, ATMEGA168

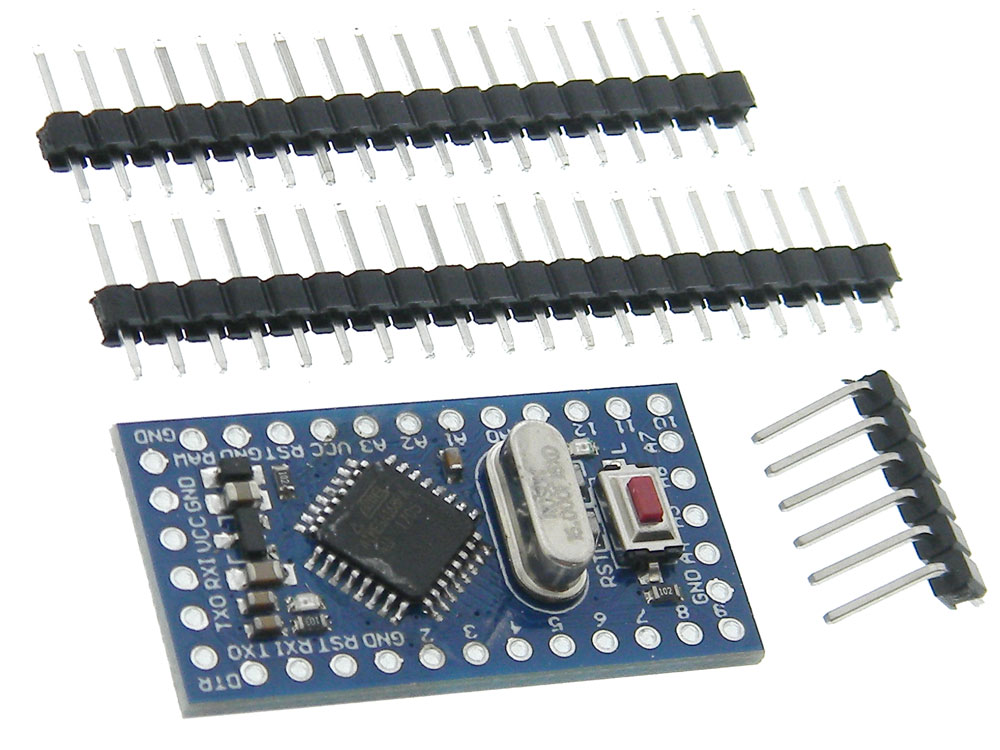

35040-large.jpg    California Proposition 65 Warning
Stock No: 35040 MP
Be the first to review this item

Availibilty: In Stock   Units: 6

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

href="http://www.mpja.com/download/35040mp2.pdf" border=0 target=new>View PDF Data Sheet

Arduino PRO MINI AVR Core Development Board with
Installed Bootloader for projects requiring Less Memory

Arduino ProMini Clone - Get the same power as the UNO, or Nano in a low cost and small footprint. Features an Atmega168, 8bit, 16mHz processor, built in 3.3V regulator, 8 analog inputs and up to 14 digital I/O pins. This module does not have a USB connector. There are 5 dedicated 100 mil spaced pads for connecting the FTDI cable (DTR,TXO,RXI,VCC,GND) or a USB/TTLconverter module. The ProMini is ideal for use after you have perfected your idea on a Nano or Uno and want to embed it in the final project. Intended for advanced users. 1st. time Users should take advantage of the Arduino Nano to gain skills. Header pins not included. Code libraries, applications and schematics, Information & Freeware available through www. arduino.cc.en and others on-line.
The pre loaded Bootloader, allows Programming with an (off board) USB to TTL converter (our Stock # 31573) or a FTDI smart cable
Processor: Atmega168 @ 16mHz
Power: 5-12VDC On-Board 5V Regulator
Note: for 5V input Use the Vcc Pin
for 5-12V input Use the RAW pin NOT BOTH
Supply Current 4 – 9mA (no load on I/O)
Analog Inputs 8 (10-bit ADC)
Digital I/O: 14 (with PWM available on 6)
Memory: Flash: 16K (-2K for bootloader)
Ports: Arduino I/O Pins
6 Pin header for direct wiring to off Board USB connector (Not Supplied)
Manual Reset Button
Connections: 0.1in. pitch holes for I/O headers (Supplied) or direct connection to functions.
L: 1-3/8” W: 11/16” H: 1/8” (No Header) WT: .03

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
