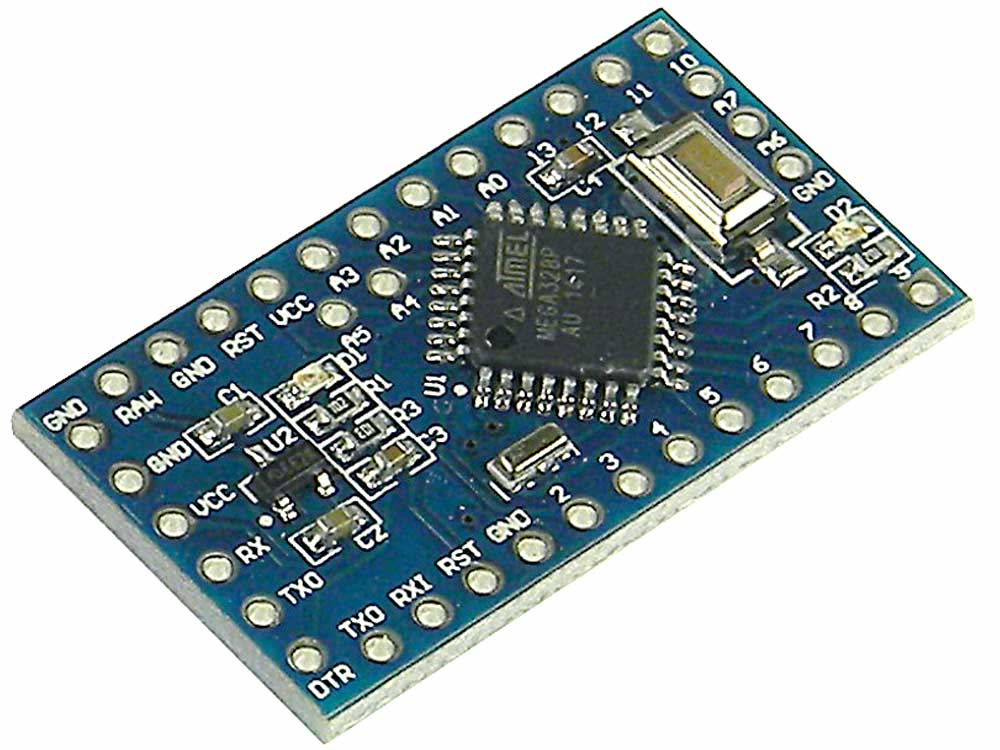

Arduino Pro Mini Microcontroller with Bootloader

Arduino Pro Mini Microcontroller with Bootloader

31811-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 31811 MP
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item

Availibilty: In Stock   Units: 8

Email this to a friend

 Detailed Description
Arduino PRO MINI AVR Core Development Board with
Installed Bootloader

Arduino ProMini Clone - Get the same power as the UNO, or Nano in a low cost and small footprint. Features a Atmega328, 8bit, 16mHz processor, built in 3.3V regulator, 8 analog inputs and up to 14 digital I/O pins. This module does not have a USB connector. There are 5 dedicated 100 mil spaced pads for connecting the FTDI cable (DTR,TXO,RXI,VCC,GND) or a USB/TTLconverter module. The ProMini is ideal for use after you have perfected your idea on a Nano or Uno and want to embed it in the final project. Intended for advanced users. 1st. time Users should take advantage of the Arduino Nano to gain skills. Header pins not included. Code libraries, applications and schematics, Information & Freeware available through www. arduino.cc.en and others on-line.
The pre loaded Bootloader, allows Programming with an (off board) USB to TTL converter (our Stock # 31573) or a FTDI smart cable
Processor: Atmega328 @ 16mHz
Power: 3.3-6VDC On-Board 3.3 V Regulator
Note: for 3.3V input Use the Vcc Pin
for 4-6V input Use the RAW pin NOT BOTH
Supply Current 4 – 9mA (no load on I/O)
Analog Inputs 8 (10-bit ADC)
Digital I/O: 14 (with PWM available on 6)
Memory: Flash: 32K (-2K for bootloader)
Ports: Arduino I/O Pins
6 Pin header for direct wiring to off Board USB connector (Not Supplied)
Manual Reset Button
.1in. pitch holes for I/O headers (NOT Supplied) or direct connection to functions
L: 1-5/6” W: 11/16” H: 1/8” WT: .01

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)

 Product ReviewsClick here to review this item
Drop Down Resistor
A 9V battery is perfect for my application. It seems that a 470 ohm resistor between the battery and RAW brings voltage to within range for the built-in regulator to do its work.
- Dirk DeRose, OK
I have bought several, and am going to buy more! These are every bit as useful as the Uno, but so much smaller! With an external USB programming board, which MPJA also sells, I can save $$ by buying these and building them into permanent projects. Whats not to LOVE about such a tiny, low-cost, yet powerful Arduino?
- William Barnett, CT
Tthis board is a great value
This product is great value! I soldered six pins on the end for programming and plugged it in to Sparkfuns dev-09716 FTDI basic, pulled up the Arduino IDE selected the new com port and set the board to arduino duemilanove. It programmed just like a full sized board. This board also gives you access to 8 analog pins instead of just 6. The eight analog pins can be used as digital pins by referencing them as pins 14-thru- 21.
John Kain
