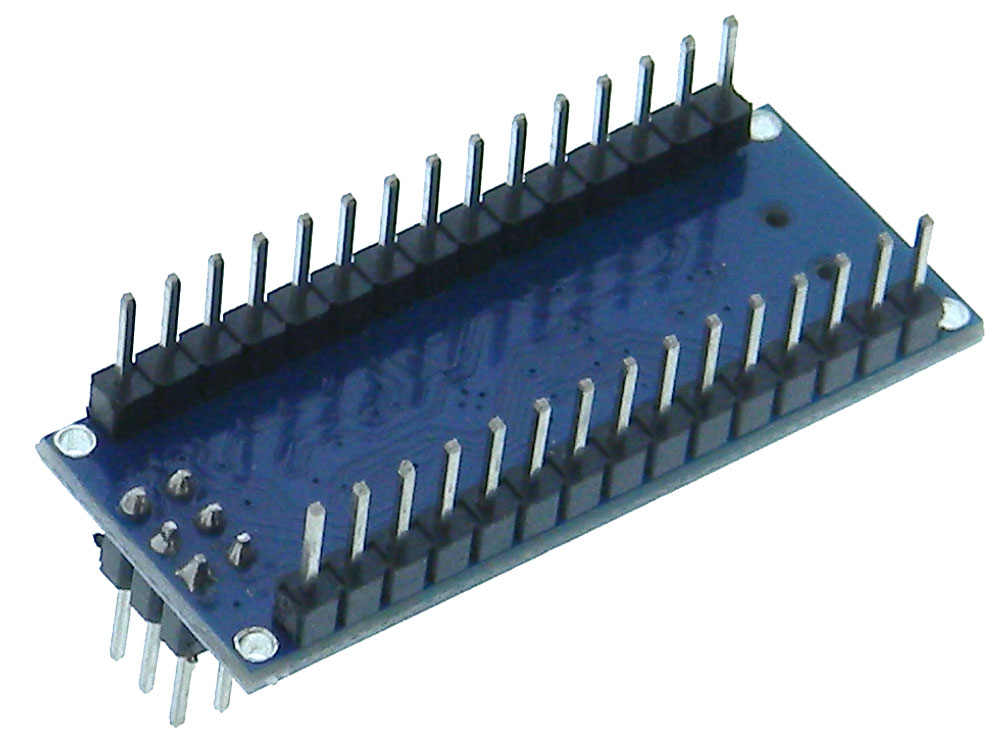

Arduino NANO V3 compatible
Full featured Arduino NANO V3® compatible controller. Features: a low profile Mini USB connector: 1in. pitch 6 pin header for I2C connection. Auto Reset on Download, Information & Freeware available through www. arduino.cc.en and others on-line
Processor: 16 MHz ATmega328
Power: 7-12VDC (Operating 5VDC)
Digital I/O : 14 (with PWM available on 6)
Analog Input: 8
Memory: Flash: 32K-2K for bootloader
Ports: Arduino I/O Pins
I2C 6 pin header
USB port:CH340 C/G Interface Chip
Type Mini B Connector
Power: 5V from USB, 6-20V Unregulated via Pin 30, +5 regulated via Pin 27, Auto select.
Manual Reset switch.
.1in pitch holes for headers or direct connection to functions
Includes 30cm USB Power Cable (A Male to Mini B) L: 1.7 O/A W: 0.7 H: .45 O/A WT: .05
