Arduino Compatable MEGA 2560 R3-2014 16MHz Upgrade


Arduino Compatable MEGA 2560 R3-2014 16MHz Upgrade
Stock Number: 35705 MP
  Be the first to review this item
$25.95


Availibilty: In Stock   Units: 9
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

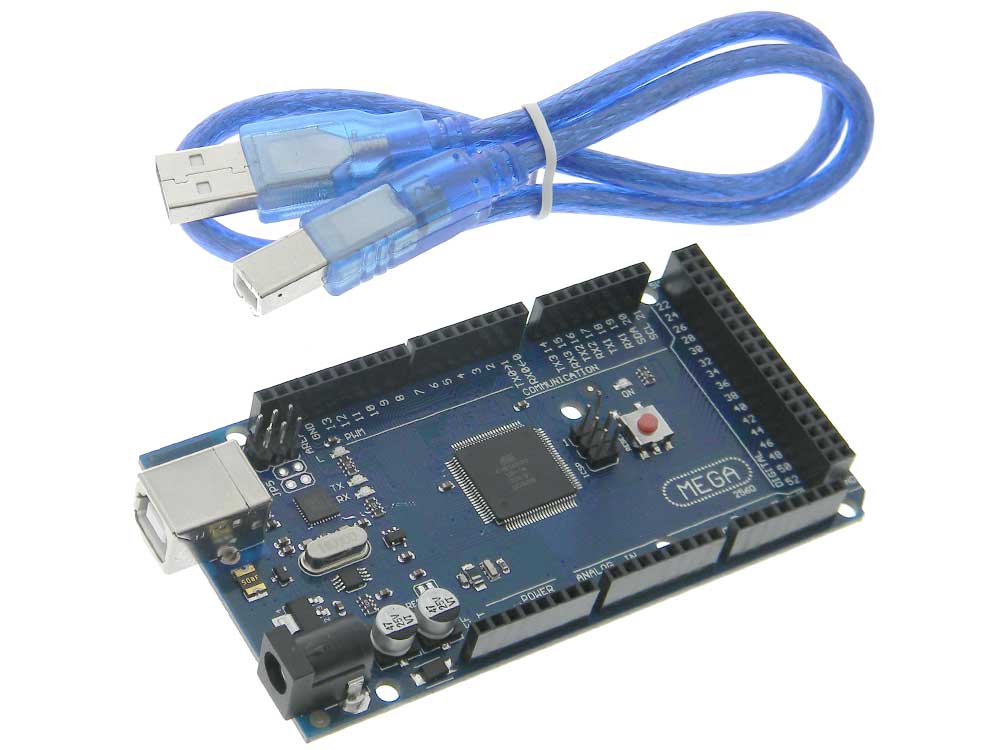

The Mega 2560 R3-2014 Clone is a updated version microcontroller board based on the ATMEGA 256016u and the MEGA16U2 USB communication chip.
Board can be programmed with the Arduino Software (IDE)
It has 16 analog inputs, 4 uarts (hardware serial ports), 16 MHz crystal oscillator, a USB connection, a power connector, an ICSP header and a reset button. Contains everything necessary to support the microcontroller; Simply connect it to a computer with the USB cable or power it with an AC-DC adapter. The Mega is compatible with most of the shields designed for the Duemilanove or Diecimila.
ATMEGA2560-16u microcontroller
Flash Memory: 256 KB (8 KB used by bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock speed: 16 MHz
Operating Voltage: 5 V
Input Voltage (recommended) 7-12 V
Input voltage: 6-20VDC
Digital I/O: 54 (15 provide PWM output)
Analog Inputs: 16
I/O Pin Current: 40 mA
Current for 3.3 V pin: 50 ma
USB port: Type B Female
Power Port: 5.5mm X 2.1mm Coaxial Power Jack
Includes 18in. USB cable
L: 4-3/8” O/A W: 2-1/8” H: 1/2” WT: .15
