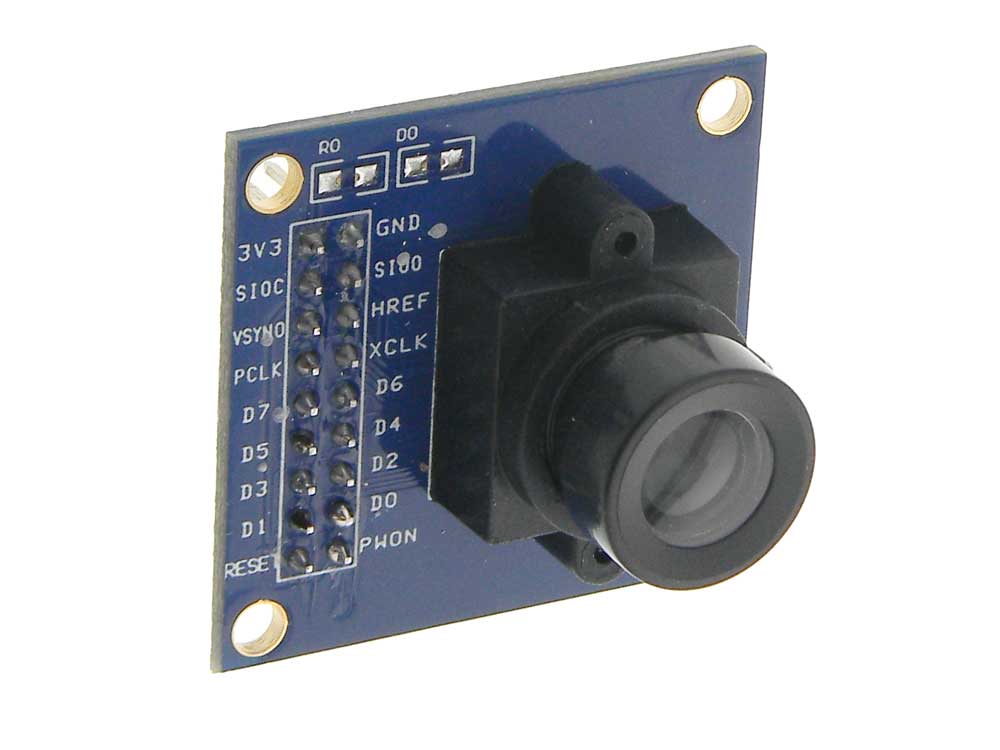

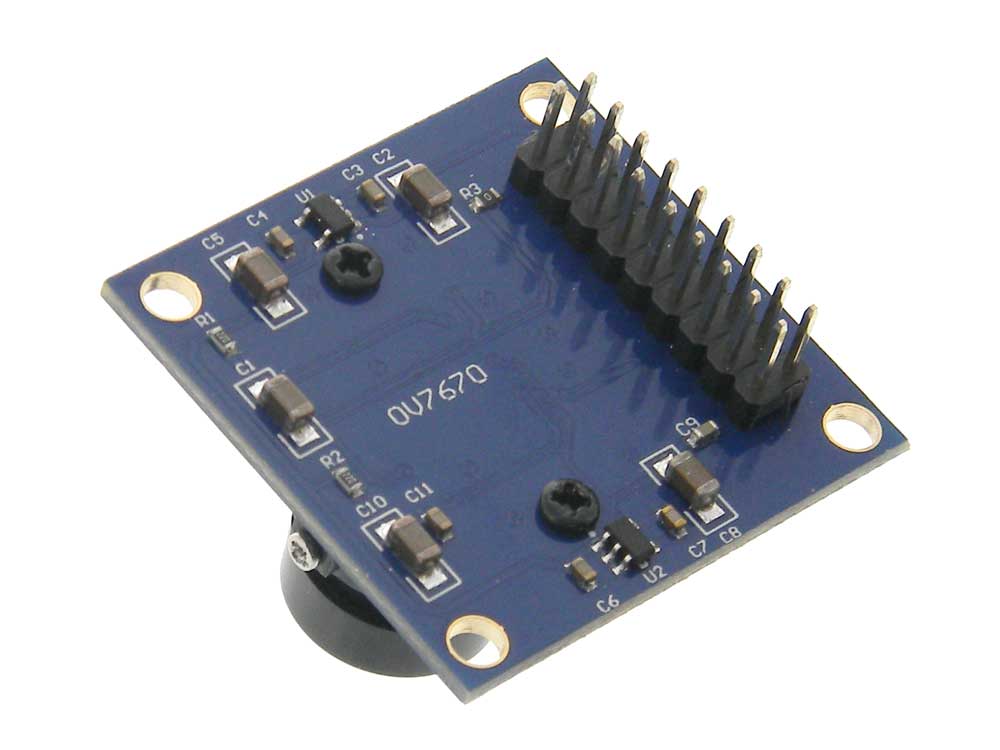

Arduino ArduCam OV7670 Camera

Arduino  ArduCam OV7670 Camera

35594-large.jpg  35594-1.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35594 MP

Be the first to review this item
$5.95


Availibilty: In Stock   Units: 18
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET


Small Color camera for the Arduino microcomputers with a high quality F1.8 / 6mm lens. High sensitivity for low-light operation.
Can be used in Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA platforms.
NOTE: Camera requires you to Write or Locate & download software Drivers for your host microcontroller
Power: 3.3VDC
Sensor: 1/6 inch
Resolution 640×480 VGA
Image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
Standard SCCB interface compatible with I2C interface
VarioPixel® method for sub-sampling
Automatic Functions including:
Automatic Exposure Control (AEC), Automatic Gain Control (AGC),
Automatic White Balance (AWB), Automatic Band Filter (ABF),
Automatic Black-Level Calibration (ABLC)
Image Controls: color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
ISP includes noise reduction and defect correction
Supports LED and flash strobe mode & scaling
Lens shading correction
Flicker (50/60 Hz) auto detection
Saturation level auto adjust (UV adjust)
Edge enhancement level auto adjust
De-noise level auto adjust
Connection 2x9 (18) Pin 0.1" Pitch Header
SQ: 1-3/8" T: 1" WT: .02
ALSO AVAILABLE: Acrylic Mounting Stand: 35499 HD

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
