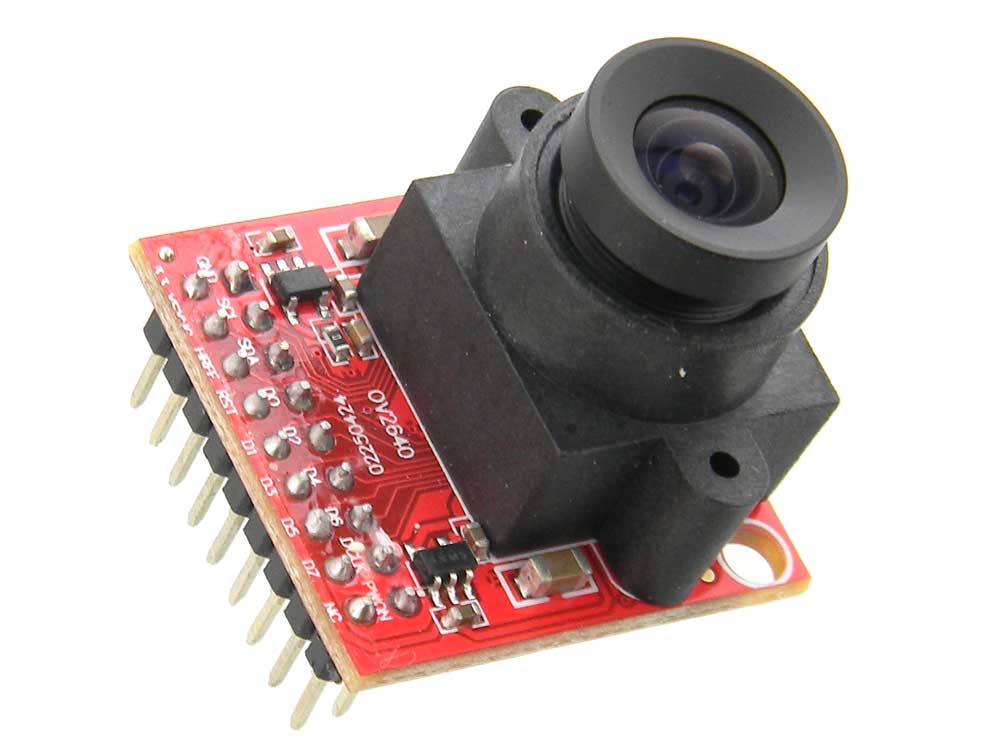

2 M Pixel camera for Arduino, Raspberry-Pi & others. High sensitivity, low voltage for embedded applications.
Built-in embedded microprocessor
Power: 3.3VDC @ ~ 40mA Integrated LDO Regulator
Sensor: OV2640
Sensor size: 1/4 inch.
Lens: 3.6mm/F2/78deg. View Angle
Pixels: 1600 * 1200 (200W).
Output Format: RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)
Supports: UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and up to 40×30 sizes
Control: SCCB interface, compatible with I2C interface
Supports automatic exposure control, automatic gain control, auto white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, color
Phase, gamma, sharpness, ANTI_BLOOM, etc.
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data

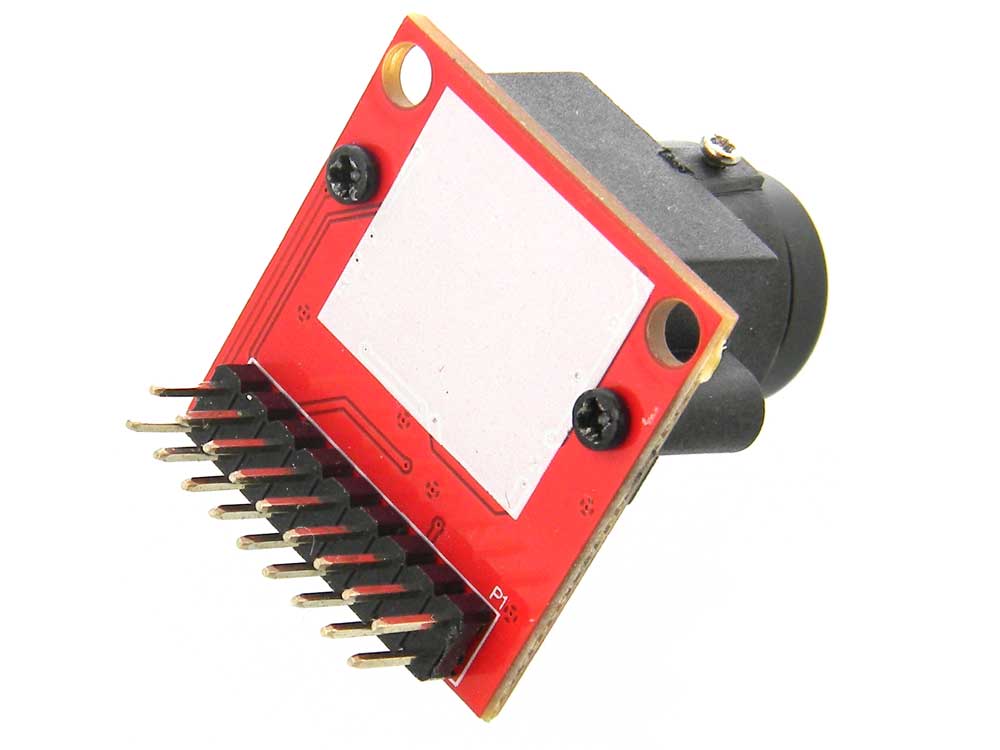

Connections: 2x9 0.1" pitch Male header SQ: 1-1/8" D: 1-3/8" O/A WT: .02
