Altera CPLD/FPGA Blaster USB Downloader

Altera CPLD/FPGA Blaster USB Downloader
Stock Number: 32701 MP
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 5

     Email this to a friend

Detailed Description

Compatable USB-Blaster™ Download Cable interfaces a USB port on a host computer to an Altera® FPGA/CPLD mounted on a printed circuit board. The cable sends configuration data from the PC to a standard 10-pin header connected to the FPGA/CPLD. You can use the USB-Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production. Ideal for protyping dedicated controllers etc.
Altera CPLD/FPGA Devices series: MAX, FLEX, APEX, EPC
NOTE: See Support Files (Blaster Support Table, Device Support) for list
Supply V: 5.0 V from the host USB cable
Between 1.5 V and 5.0 V from the target circuit board

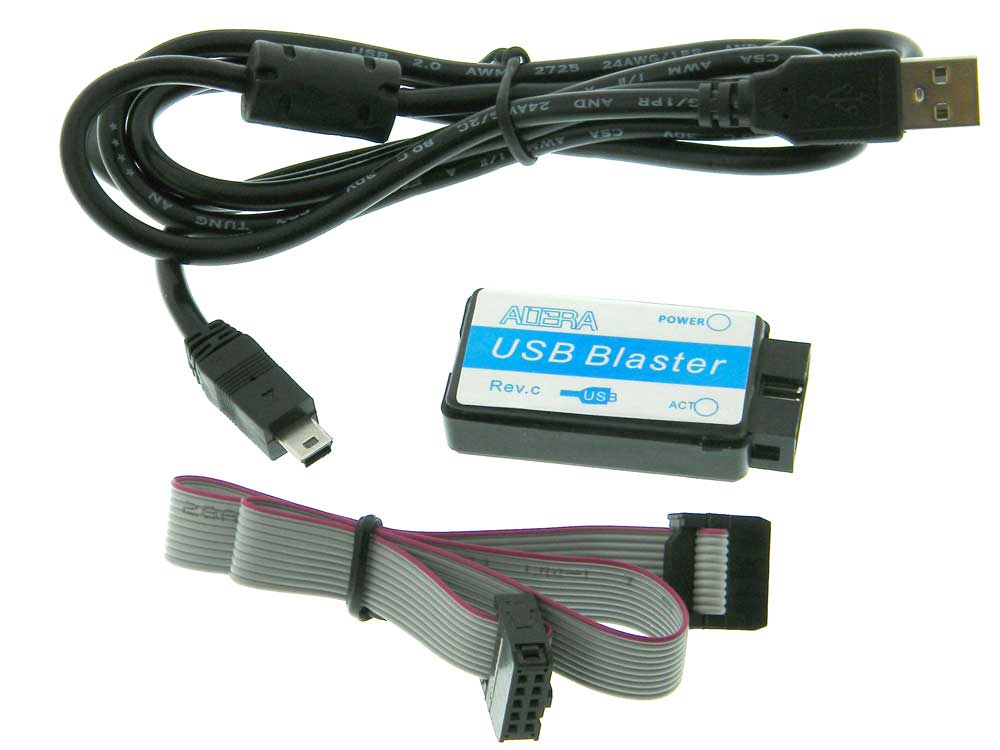

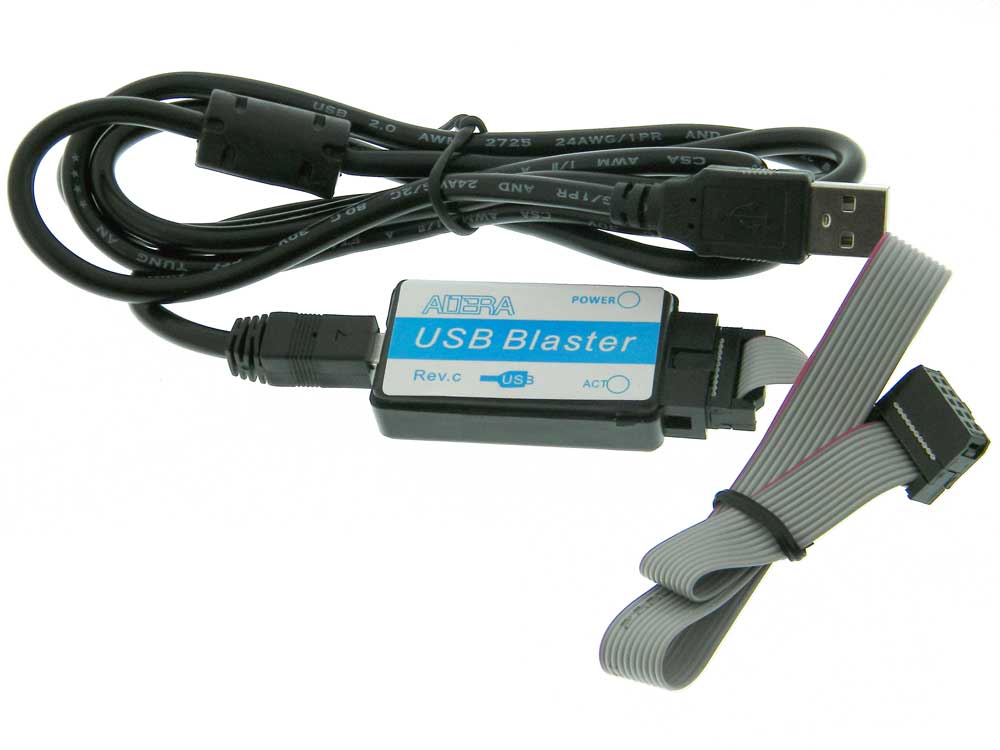

Includes: USB Blaster, 11in. 10pin Target cable, 4ft. USB Host Cable
NOTE: NO Documentation supplied with this unit.
This is a logic arrray programmer that requires you to download Software (Recommend free Quartus II) from Altera (Blaster Support Table Downloads) link on
We cannot help you with this item.
WT: .2

View PDF Data Sheet

View PDF Data Sheet

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to

 Product ReviewsClick here to review this item
Able to Resurrect Old Altera University Program UP1
Was a bit leery since price is $5-10 less that other sites and feared being obsoleted due to Windows 10, but was able to resurrect an old Altera CPLD/FPGA University Board for some limited/targeted R&D on semi phased-out Altera chips. The secret is to get the version of Quartus II that supports your legacy device before Intel/Altera disappears it - then simply follow the driver installation at Would give 5 stars but not 100% repeatable on downloads - sometimes fails in verification - possibly a JTAG loading/termination issue ...
Dr. Mike
