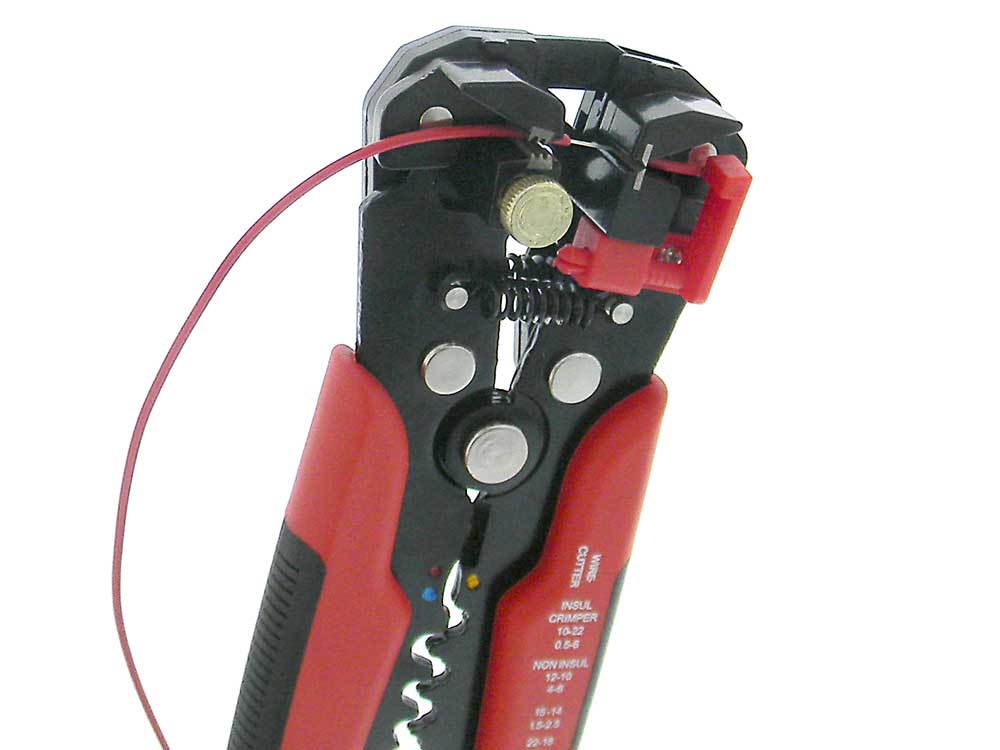

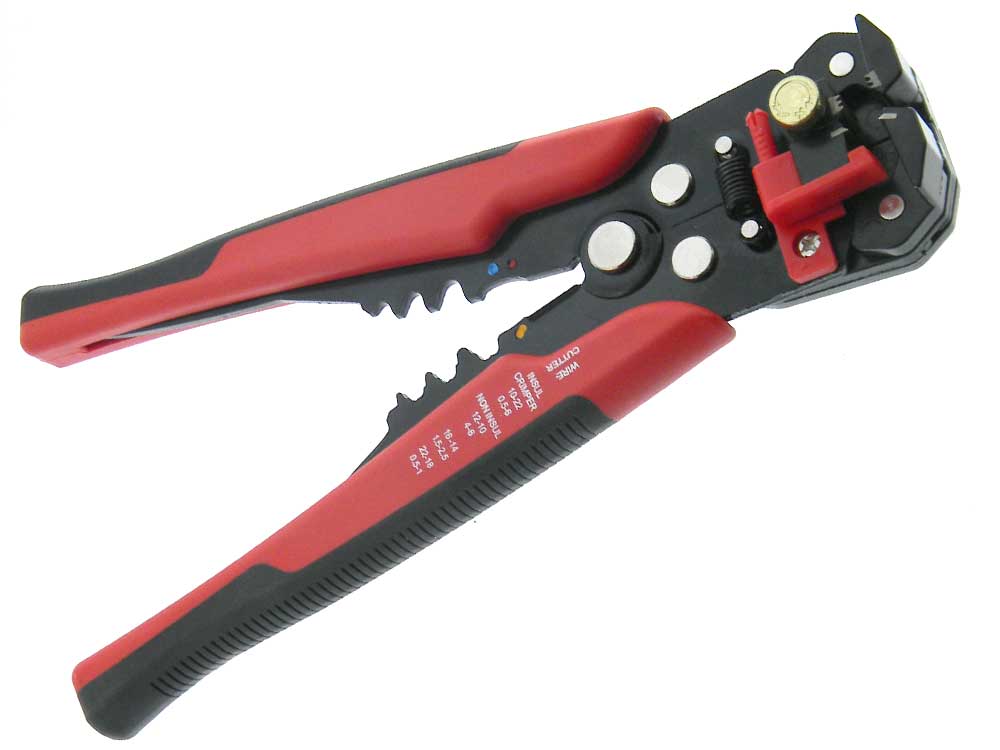

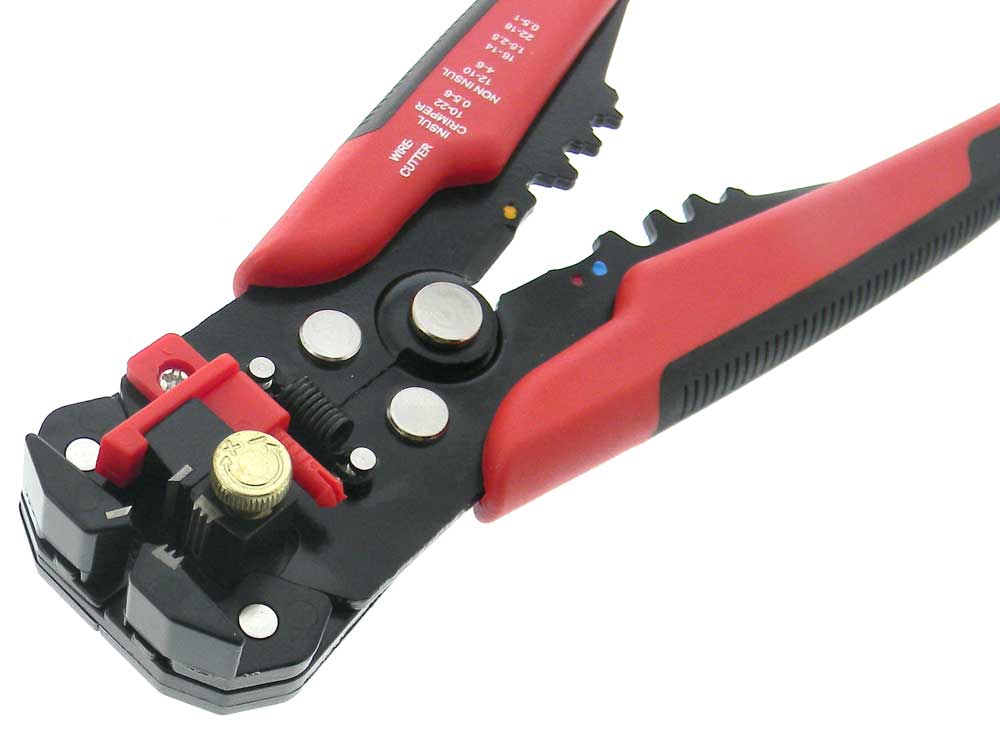

Multi function tool made of high quality steel for cutting, stripping and crimping. Easy stripping with strip length adjustment.
Strips wire from AWG24-10 (0.2~6.0mm˛).
Cut Aluminum & soft copper wire AWG10-22
Insulated terminals: AWG10-22AWG (0.5-6.00mm).(Red/Blue/Yellow)
Non-insulated: AWG10 to 22 (0.5-6.0mm).
Auto ignition terminals: 7-8mm.
Blade material: SS41
Handle material: ABS+TPR soft grip
Strip Blade hardness (HRC): 52 ~57
Body hardness: HRC 88 ~ 90
Cutter hardness: HRC 55 ~60 L: 8-1/4" W: 4-1/8" T: 1-1/8" WT: .8
