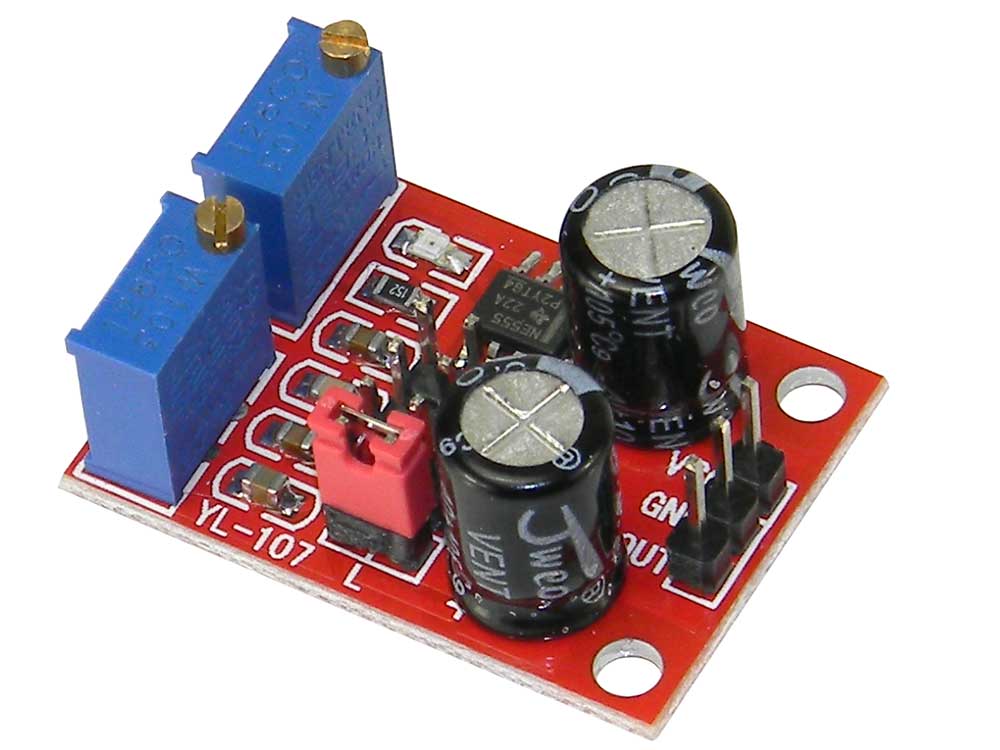

Adjustable Pulse Generator Board for Arduino

Adjustable Pulse Generator Board for Arduino

31070-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 31070 MI
 Review Average:
 Number of Reviews: 6
 View ReviewsReview this item

Availibilty: In Stock   Units: 90

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
Compact PC board Pulse generator utilizing the 555 IC. Features: 5-15VDC input power, 15mA output drive @ 5VDC; 35mA @ 12V Power. 4 jumper selectable frequency ranges: 1Hz-50Hz, 50-1KHz, 1KHz-10KHz & 10KHz-200KHz. Controls for Frequency Adjust & Duty Cycle. 3Pin I/O header.
Note: Freq. & Duty Cycle interact with each other.
L: 1-1/4” W: 7/8” H: 9/16” WT: .02

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Super utility circuit to have around
I have used a couple dozen of these things since they became available. From driving a relay to control lights flashing on a 60 antenna foot to one driving an .mpg of a screech owl in my barn to keep out pests. I simply change the caps to get any range I want. Big time saver.
- Jim Schings, KY
Works, but dont believe the documentation
I have an old pdf that has reference designators, and the current one that doesnt. Both have errors. I was modifying it for a limited freq. range, and it was way off. Found out that the 1uF cap on J3 was really 4.7uF. Other values are suspect too. If youre going to use this with any modifications, take the schematic with a grain of salt.
- Electronics Guy, NC
Verified Purchase
Fast Shipper, as advertised.
Pulse Generator 31070MI
Too bad you cant read the component values on the schematic
Pulse generator +/-
Ive used 6 or 8 of these for a 1-2 hz application. As the note indicate, you have to repeatedly cycle between the pots to get the pulsewidth and Hz you need.It takes patience at 1 hz. Also I have had 3 early failures, they lock up and then go dead.
- Alan, KS
PI metal detector
Good base unit PI metal detector.
