We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

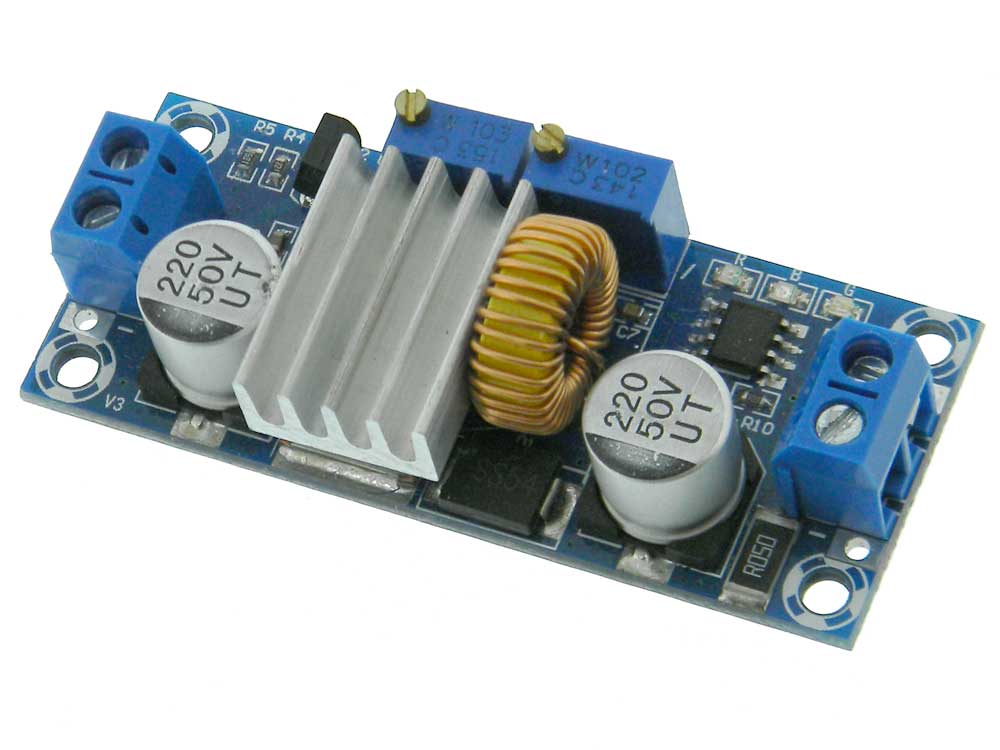

Non Isolated, adjustable DC/DC Buck (Step Down) constant current, Driver, Charger.
Adjustable compliance Output Voltage and adjustable Constant Current output for charging batteries or driving LEDs
Input Voltage: 5-38VDC
Output Voltage: 1.5-36VDC
Min. Input/Output Voltage Differential: <1V.
Input Voltage must be higher than required output voltage
Rated Current: 3A (Fan needed above 3A)
Max Current: 5A
Current Adj.: sets the available charging/driving current.
NOTE: Depending on In/Out Voltage difference & Load Current Unit can get hot L: 2-1/2" W: 1-1/16" H: 5/8” WT: .04
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
