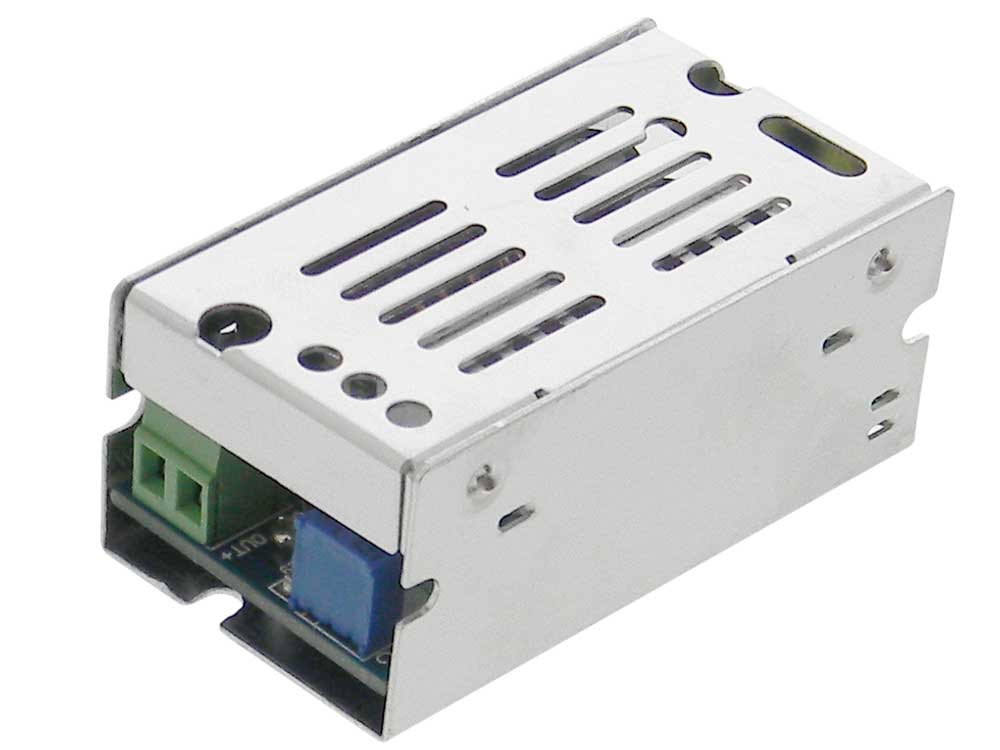

Adjustable 1-36V DC/DC - 200W - 10A Buck Converter


Adjustable 1-36V DC/DC - 200W - 10A Buck Converter
Stock Number: 36626 PS
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$10.95


Availibilty: In Stock   Units: 52
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Non Isolated, adjustable DC/DC Buck (Step Down) constant voltage converter.
Input Reverse Polarity Protected
Input Voltage: DC 8-55V (60V max)
Input/Output Voltage Differential: 2Vmin
(Input must be higher than required output)
Output Voltage: DC 1-36VDC
Rated Current: 10A, 15A Max.
NOTE: Wattage Limited 200W Max. (V x I x Eff.=W)
(Fan Recommened above 100W)
Efficiency: 94% max (Nominal 85%)
Operating Temperature: -10C to 75C
Working frequency: 180KHZ
Terminal Strips for Input & Output
L: 2-3/4" W: 1-1/2" H: 1-3/16 WT: .18

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
88% efficient

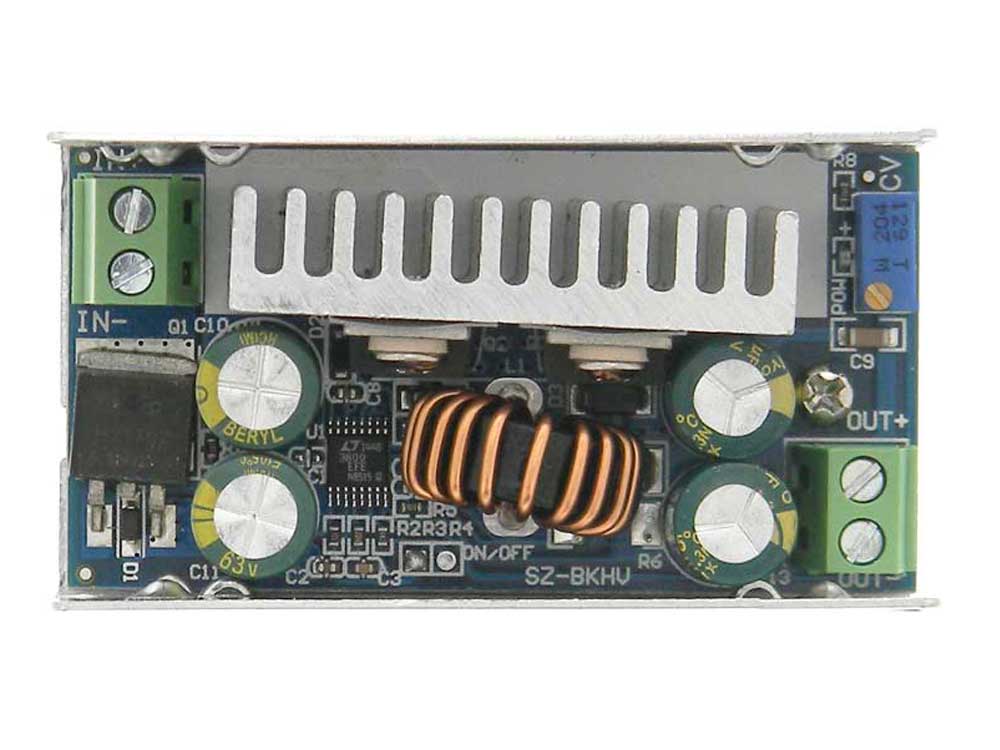

Efficiency with 12Vin and 5Vout measured 88% across tested output currents from 0.6A to 2.66A. Input idle current is under 1mA at 12Vin (no load connected). Inductor is significantly smaller than shown in web and datasheet images. IC logos on units I received had been scraped off, so it is not possible to tell if it uses a Linear Technologies chip.
- H Bustani, NV
