AC Panel Meter, LCD Display - 400 AC Volts, 100Amps, 22KWatts &0-1PF


AC Panel Meter, LCD Display - 400 AC  Volts, 100Amps, 22KWatts &0-1PF
Stock Number: 37213 ME
  Be the first to review this item
$18.95


Availibilty: In Stock   Units: 34
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

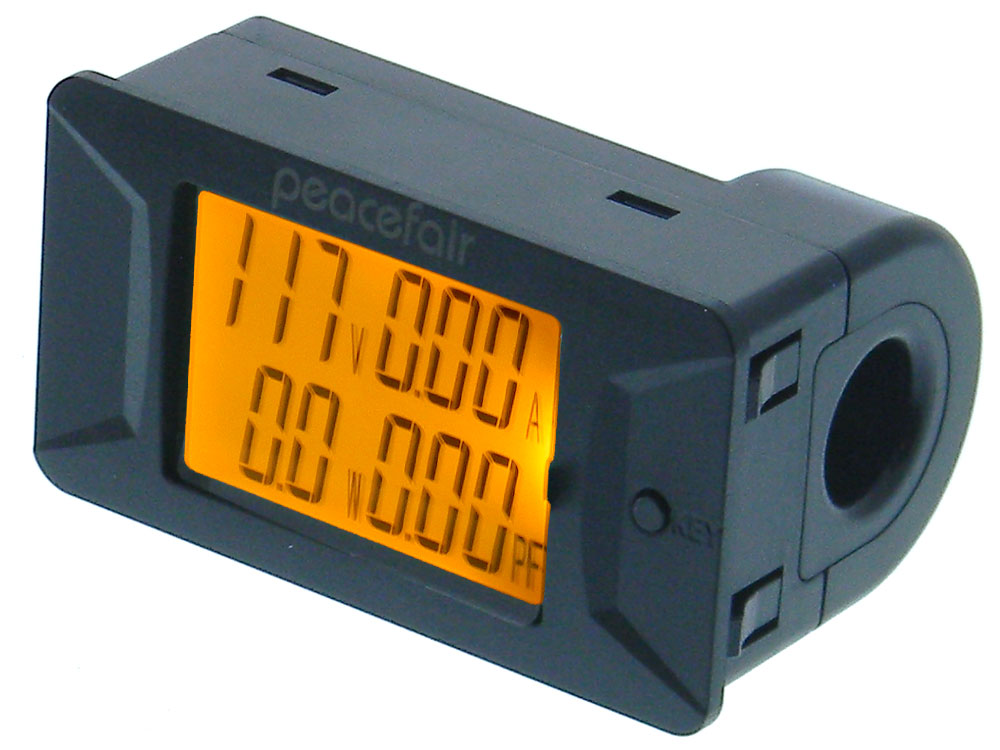

Snap-in, panel mount AC Multifunction meter with: Volts, Amps, Watts & Power Factor
LCD Display with Orange Backlight.
Character Height: ~12mm
Input Voltage: 40-400VAC 50/60Hz SINE WAVE ONLY
Resolution: <100V: 0.1V / > 100V: 1V
Accuracy: +-1% +-2LSD
Input Amps: .02A-100A
Resolution: Amps: <10A : 01A/ <100A : 0.1A
Accuracy: +-1% +-2LSD
Power: 2.2W-22KW:
Resolution: Power: <100W : 0.1W/ <1000W: 1W/ <1KW: .01KW
Power Factor: 0-1
Resolution: .01PF
Terminal Strip for Connections

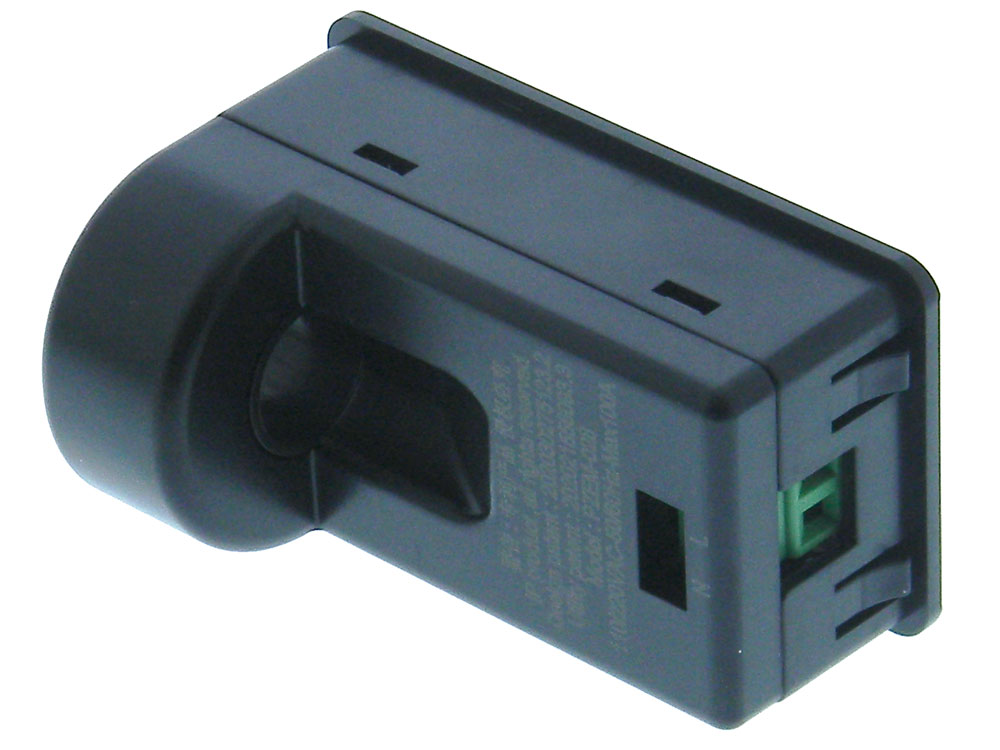

Built in Current Transformer: I/D: 14mm
Meter Cutout: 69mm X 37mm
W: 2-7/8" H: 1-9/16" D: 1-3/4" WT: .2
