AC Overload Protection Relay -12VDC


AC Overload Protection Relay -12VDC
Stock Number: 38281 RL
  Be the first to review this item
$12.95


Availibilty: In Stock   Units: 12
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

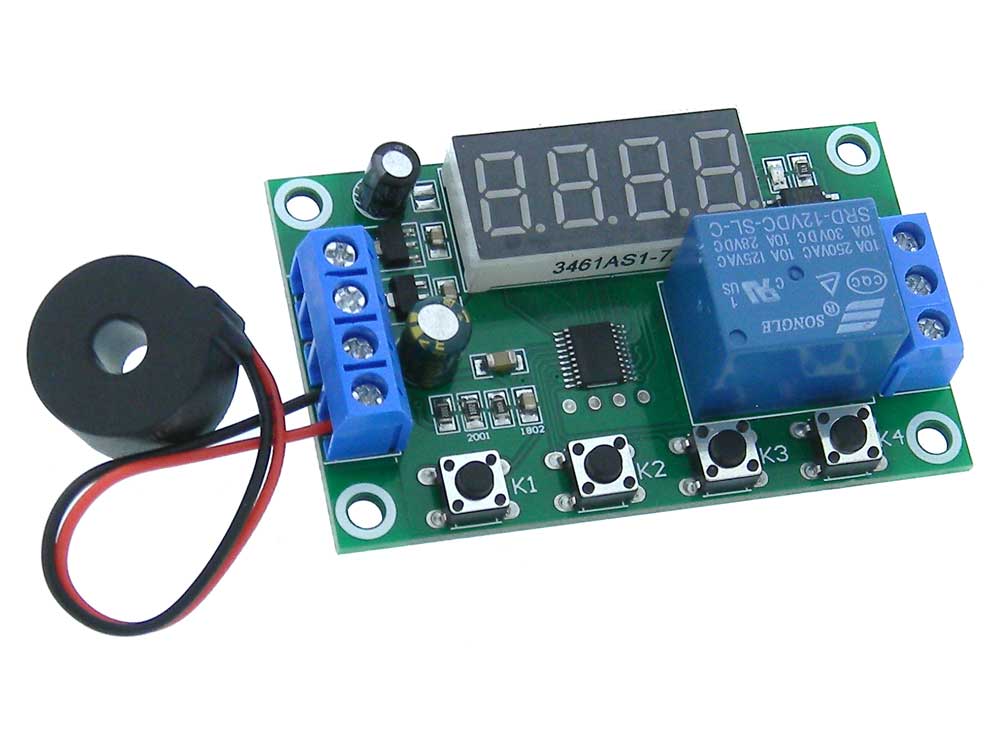

Module with toroid sensor, Detects when the 110/220V AC current is too high and too Low. 4 Digit .36" LED display for current & Settings.
10 Programmable Modes: SEE ONLINE DATA SHEET
Isolated SPDT Relay to control the load.
Module Power: 12VDC
Idle Current: < 15ma
Detection Range: 0~5AAC
Resolution: 0.01 (10mA)
Accuracy: 0.01A (10ma)
Relay: SPDT
Contacts: 10A @ 250/120VAC/28VDC
Toroid sensor:
3/4" Outer Dia. x 3/8" Thick
3/16" Inner Dia, hole (for Wire)
Connections: Terminal Strips
L: 65.8mm (2-9/16") W: 40.5mm (1-9/16") H: 20mm (11/16" WT: .08
