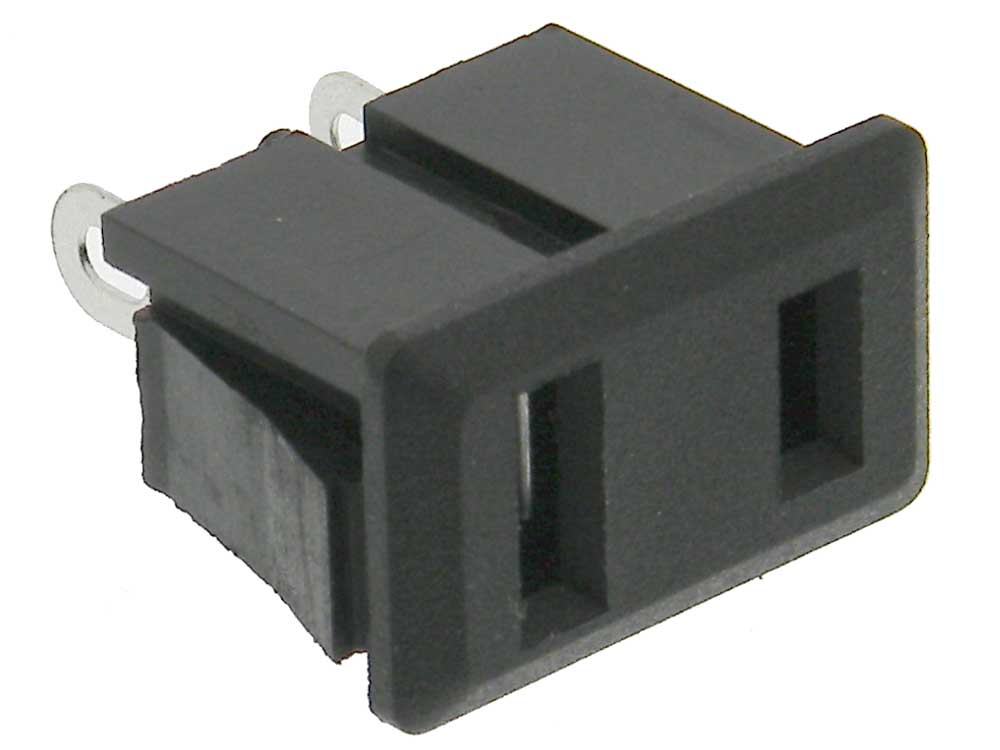

NEMA 1-15R Snap-in, Chassis mount, Black thermoplastic two wire polarized primary power connector. Rated for 70deg. "C". Solder terminals. UL/CSA listed 15A @ 125V.
Hole Cutout: .875in X .468in. W: 1-1/32" H: 5/8" D: 1-5/32" WT: .01
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
The terminals on this socket tin and solder easily. the plug hold in tangs work well, but dont expect them to work well on thicker plastic project boxes. Its more likely that these will work well with thin metal project boxes. The socket itself is very secure when you plug in an accessory. Overall this is a very reliable unit.
