8X8 Red Programmable LED Matrix

8X8 Red Programmable LED Matrix

36520-large.jpg  36520-1.jpg  36520-2.jpg    California Proposition 65 Warning
Stock No: 36520 MP

Be the first to review this item
$3.95


Availibilty: In Stock   Units: 63
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET

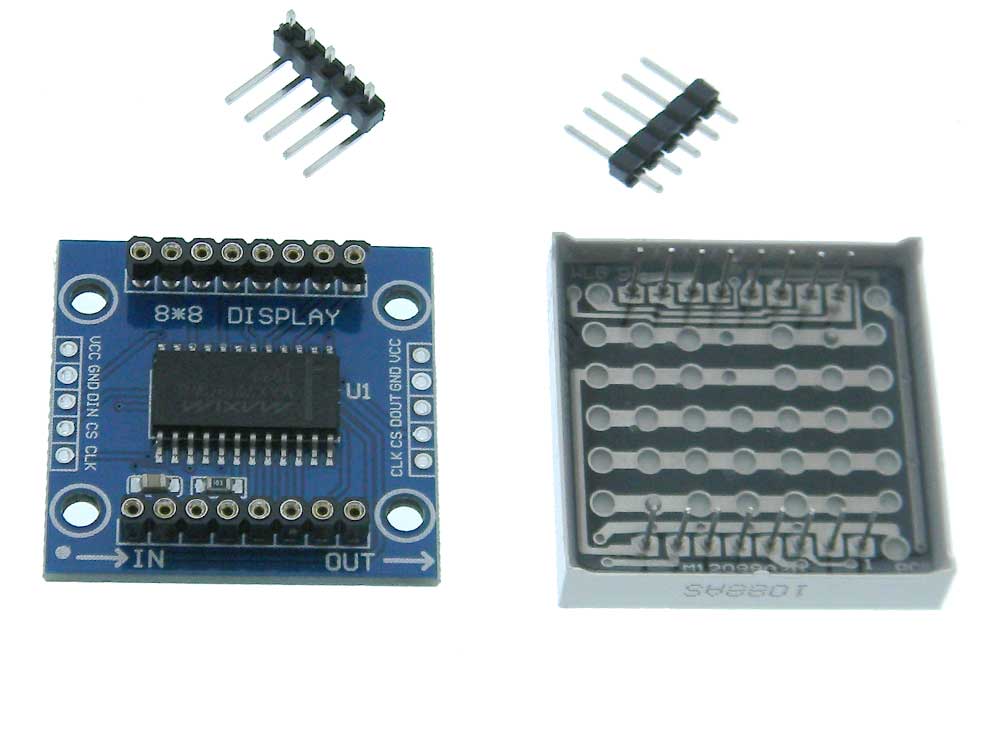

Unique 8X8 dot matrix addressable, programmable LED module using the Maxim MAX7219 IC. Cascadable for multiple modules
NOT STAND ALONE REQUIRES CPU & PROGRAMMING
(Driver on our Website for 51mcu)
Power: 5VDC
Interface: 3 line Serial input from a microprocessor (CS/Din/Clock)
Connections: Input: 5Pin Vcc/Gnd/CS/Din/Clock) from Microprocessor or
previous module
Output: 5Pin Vcc/Gnd/CS/Dout/Clock) to next Module

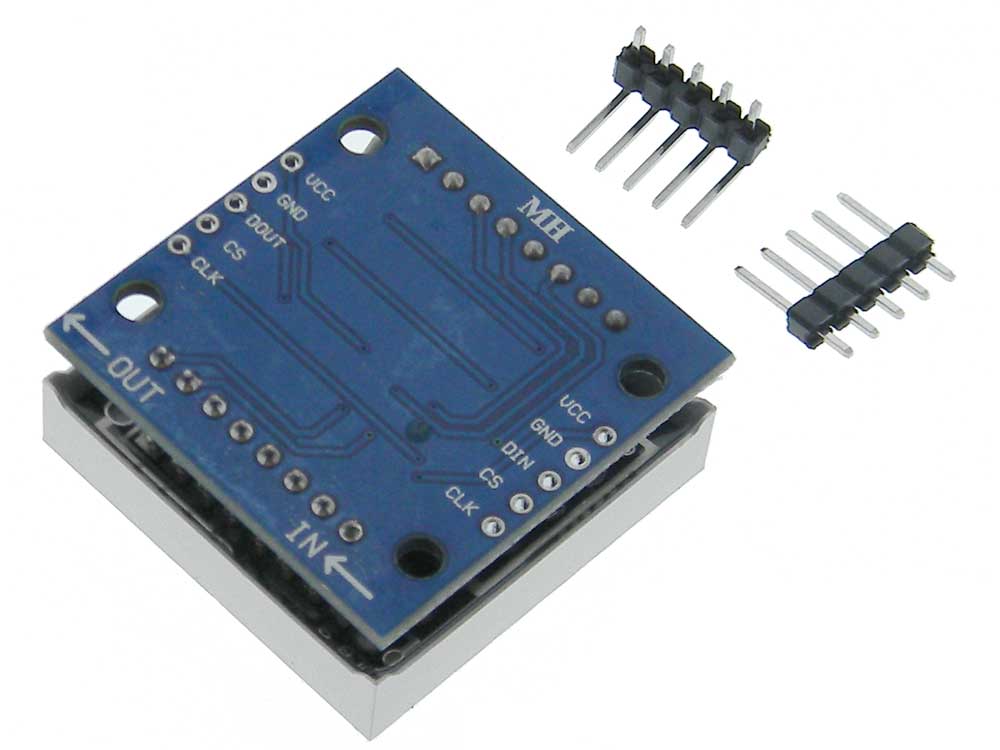

The left side of the module is the input port and the right side is the output port. When using a single module, only connect the input port to the CPU.
When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on.
Four 3mm dia mounting holes.
Includes a Right Angle and a Straight Header. Requires soldering

USEFULL LINKS
http://www.best-microcontroller-projects.com/max7219.html
http://www.instructables.com/id/16x8-LED-dot-matrix-with-MAX7219-module/
https://brainy-bits.com/blogs/tutorials/how-to-control-max7219-led-matrix
https://github.com/wayoda/LedControl/releases
SQ: 1-1/4" H: 9/16" WT: .03
