830 Tie Point Solderless Breadboard, Unmounted


830 Tie Point Solderless Breadboard, Unmounted
Images/24443-large.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 24443 TE
 Review Average:
 Number of Reviews: 3
 View Reviews | Review this item
$3.95


Availibilty: In Stock   Units: 114
Quantity



SHARE

     Email this to a friend

Detailed Description

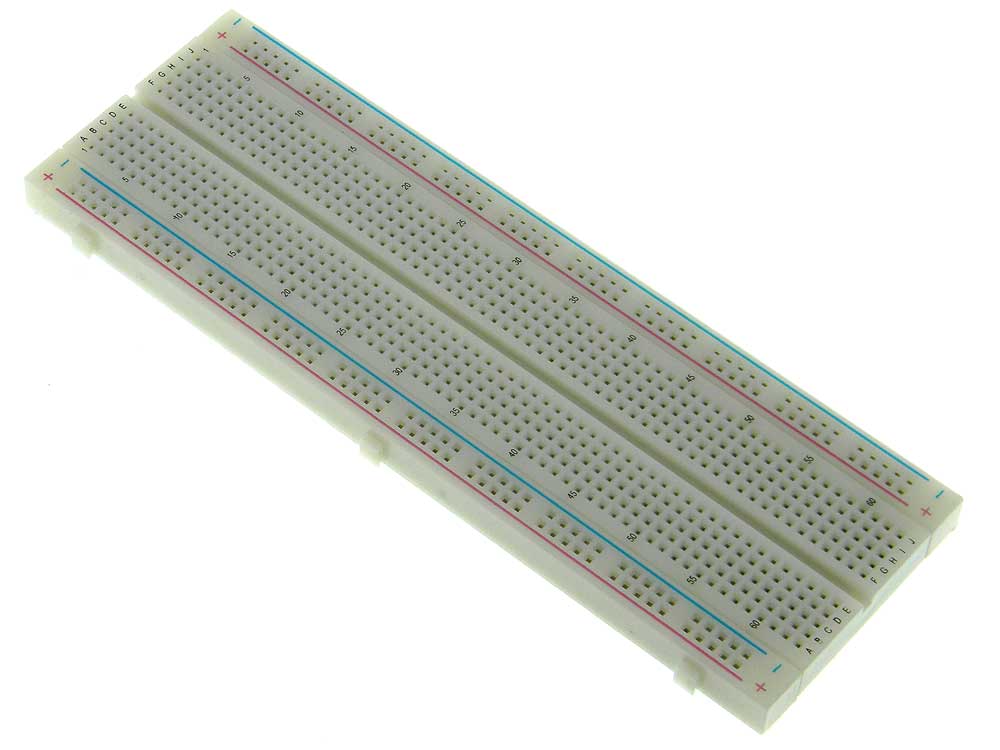

830 tie point solderless breadboard with 2 distribution strips. Features: ABS plastic body, Nickel plated contacts Rated 2A Max. Contact resistance less than 1 milliohm @ 1kHz. Tested for over 10,000 cycles. Snap lock molded dove-tail for combining multiple boards. Suitable for 19-29 AWG wire and all DIP size components.
See 32893 for the solder protoboard that matches the buss & hole patterns
L: 6-1/2" W: 2-1/8" H: 3/8" WT: .3

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
Bread board 7/14/2020
Handy little board for prototyping my circuits, would recommend.
- Toni K, VA

WARNING - Might not fit a 40-pin DIP dual in-line package 6/9/2020
Ordered 5 of these. They must have been from a mixed lot. Two were OK, but I noticed their male-female side-clips did not align with the other three and could not be side joined. The other three were longer, and their hole-to-hole spacing along the long dimension were sufficiently too long that you can cannot fit a 40-pin DIP into it without bending the end pins. In 1.9 inches the pin spacing of a 40-pin DIP the holes are off by about 1/3rd of a hole.
- Duane Becker, VT

Nice Breadboard 8/30/2017
I have several of these boards and I just now had to retire one of them because the pins just were too loose. Years-of-Use. I love the fact that this new one snaps together with my old ones. What a second blessing. Where has MPJA been all my life?
- Kris Roush, OH
