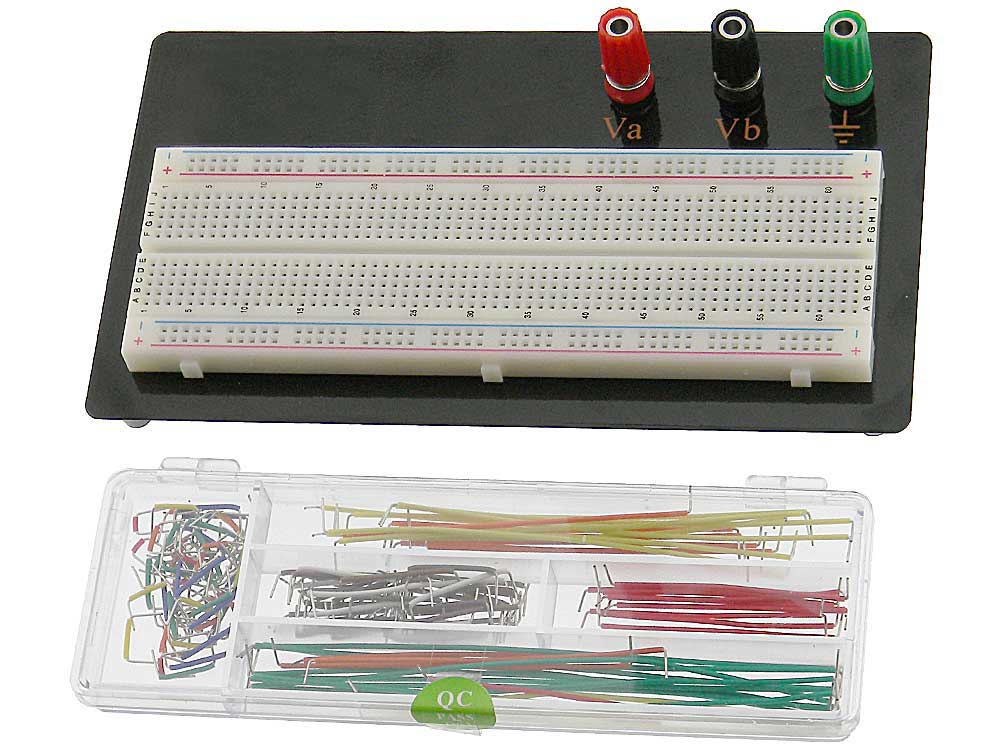

830 Tie Point Solderless Breadboard Mounted Panel with Jumpers
Detailed Description
830 tie point solderless breadboard with 2 distribution strips, 1 terminal strip & 3 binding posts. Features: Metal mounting base, ABS plastic body, Nickel plated phosphor bronze contacts Rated 2A Max. Contact resistance less than 1 milliohm @ 1kHz. Tested for over 10,000 cycles. Snap lock molded dovetail for combining multiple boards, Suitable for 19-29 AWG wire & all DIP size components. Includes plastic box containing various length pre bent jumpers. W: 7-7/8” H: 4-1/8” WT:.8
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I have several of these solderless breadboards, but this is a game changer. Heavy duty base and rubber feet keep it from wandering around. The precut jumpers are a huge bonus. Did not even know I needed these. Beware the power buses on top and bottom are split half way across, you might need to jumper these.
- RT, CO
I have used these for better than 40 years
This seemingly hobby like device can be used in complex designs to find out and perfect circuits that you come up with and to test and modify circuits. They can also be used to test TTL chips, CMOS and Op Amps. I tell my trainees about these.
- Sam Palermo, IL
