8 x Cartridge Fuse Blocks for 6 x 30mm & 1/4" x 1-1/4" Fuse
Fuse block for 8 Bussed AGC / 3AG (1/4" x 1-1/4") or 6x30mm Glass and Ceramic cartridge fuses.
Max Current: 20A

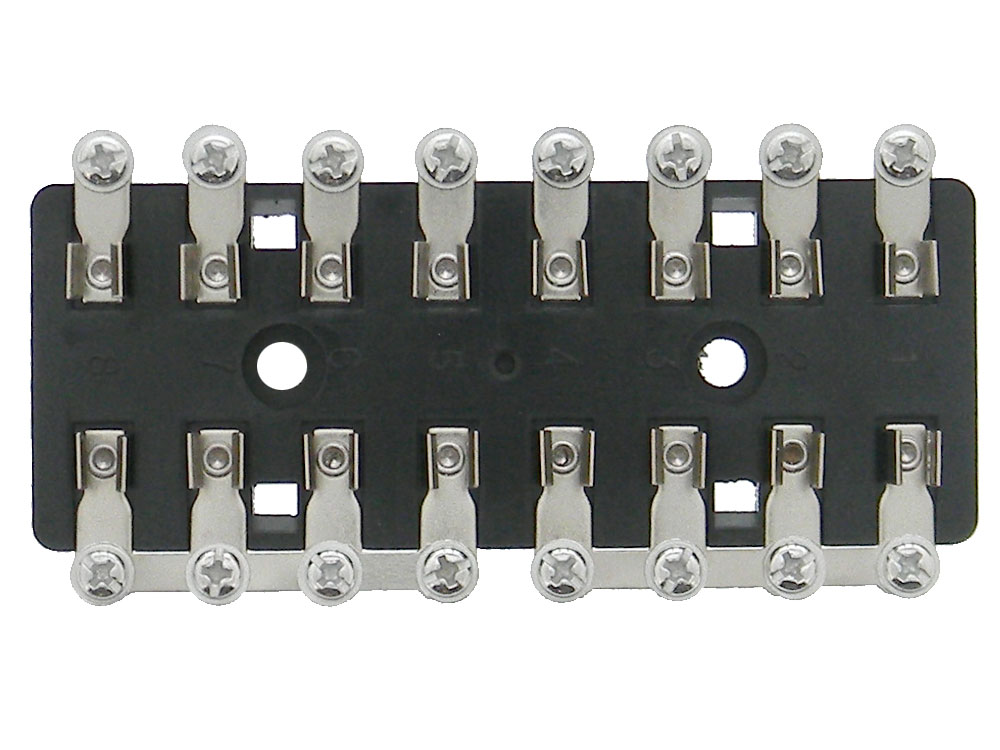

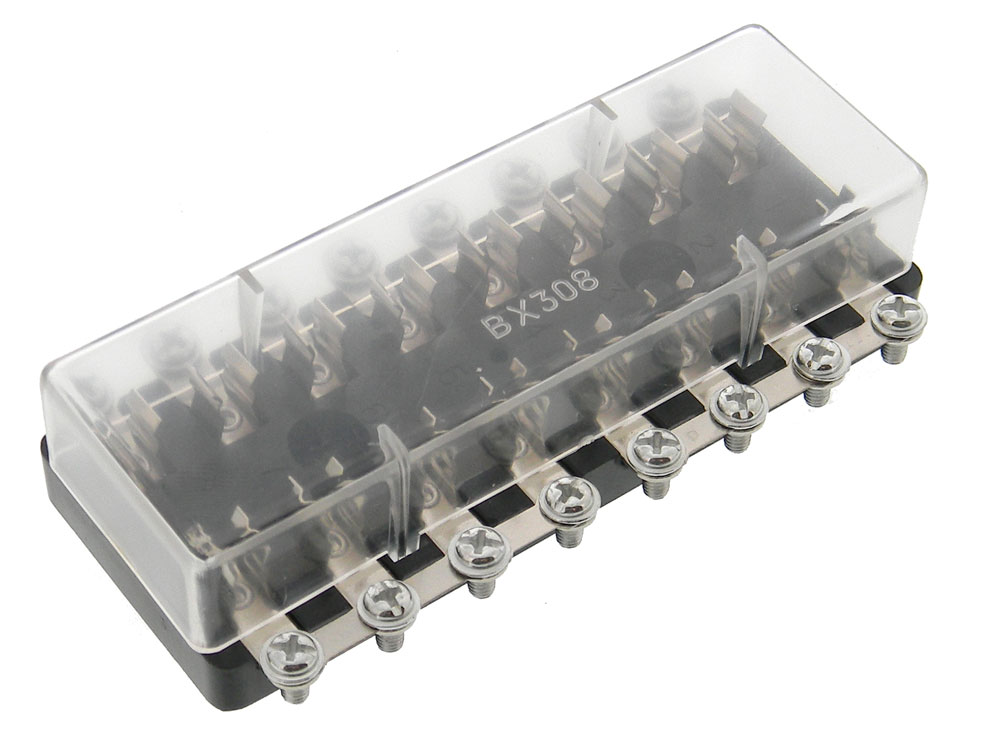

1 side has 2 groups of 4 fuses bussed together for power distribution (strip is removable). 4mm plated steel screws, Clear Polycarbonate snap on dust cover and plastic base.

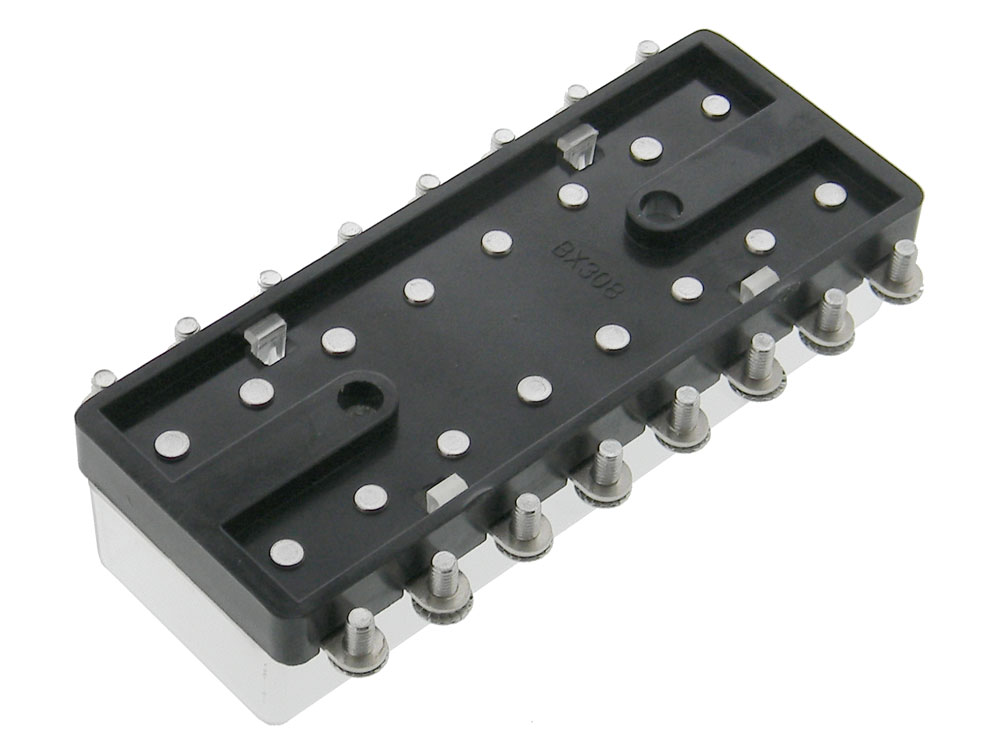

2 mounting holes 2-1/4" on center. L: 4-13/16" W: 2-7/16" O/A H: 1-1/4" WT: .35
