7 Digit, 7 Segment Display with LEDs

7 Digit, 7 Segment Display with  LEDs

19391-large.jpg  19391-1.jpg  19391-2.jpg    California Proposition 65 Warning
Stock No: 19391 OP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$1.25
$0.39


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.


SHARE
   Share
Email this to a friend

 Detailed Description
MFG: ROHM
P/N: LS-2074M2G

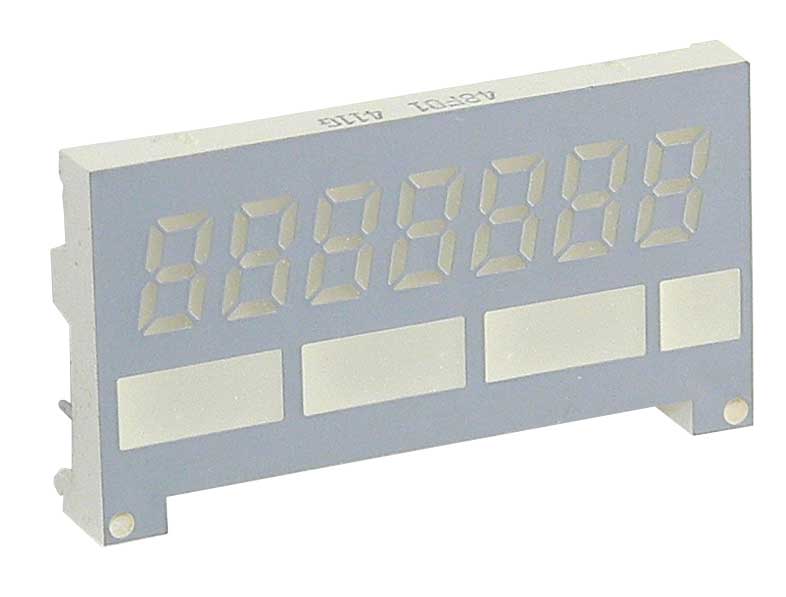

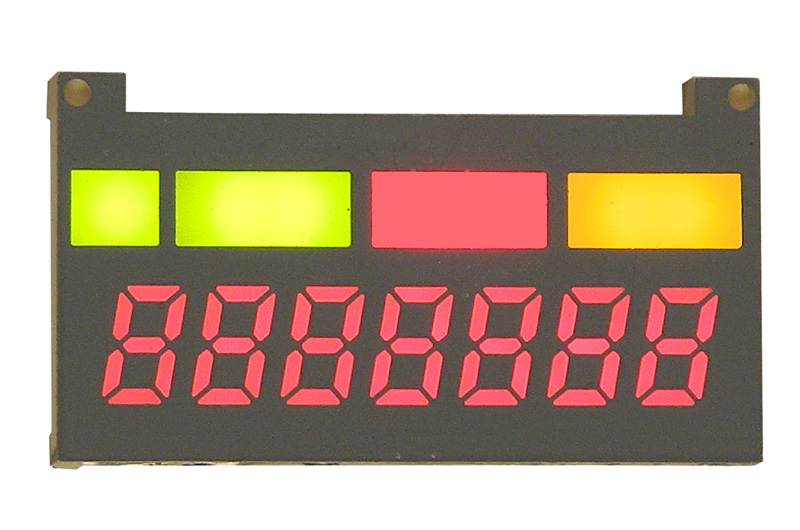

Custom displaywith 7 common Anode, 7 segment Red LED digits and 7 Independent rectanglar LEDs.
max reverse Voltage=5VDC, Max forward Current+ 20mA
W: 1-7/16" H: 13/16" T: 1/4" (Body) WT: .007

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)


 Product ReviewsClick here to review this item
Rohm 7 Digit, 7 Segment Display with LEDs
The review by Glenn in Texas was accurate and helpful. However, the unit works well, and at the current sale price $0.29 its a steal. Note this is a multiplexed display. I used an Arduino Pro Mini to drive it. To improve contrast, I used a little piece of Duck Brand Translucent Tail Light Tape costs < $4 at WalMart. If you dont need the individual big LEDs at the bottom of the display, you only need to plug the top pins into a standard 0.1 inch pitch breadboard. I hooked mine up to a DS3231 real-time clock, and wrote code to create a scrolling date/time display. Works great!
- NV1T, TN

Data sheet not quite complete

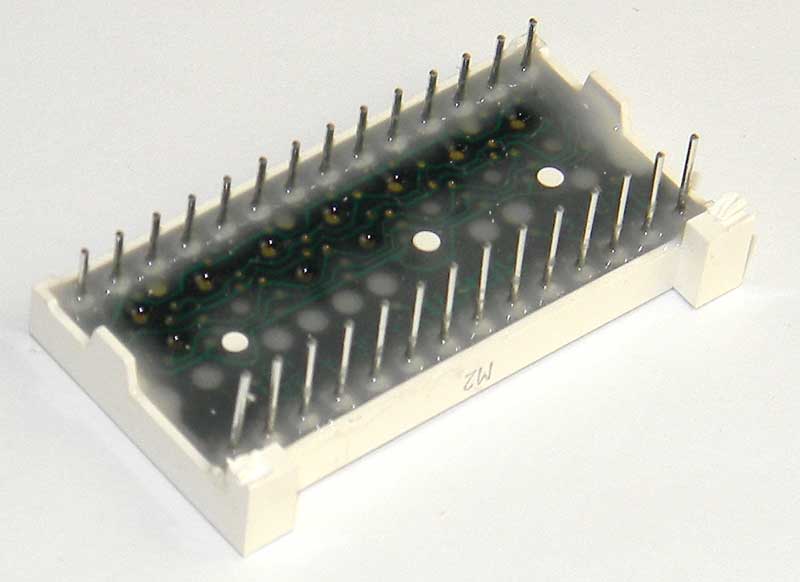

The data sheet is accurate for what is reported, however here are some stats that are not included: Digits are approx. 5.8mm H x 3.3mm W - they are small. Useable forward current is about 5.0 mA - any more and the segments bleed over to adjacent segments. The pins in a given row are on 2.54mm centers, however, the distance between the upper and lower rows is not a factor of 2.54mm - so dont expect these displays to plug into a proto-board or breadboard without bending a full row of pins. The pins on the bottom row are approx. 6mm long while the pins on the top row are approx. 3.5mm long. Still a lot of digits and LEDs to tinker with.
- Glenn, TX
