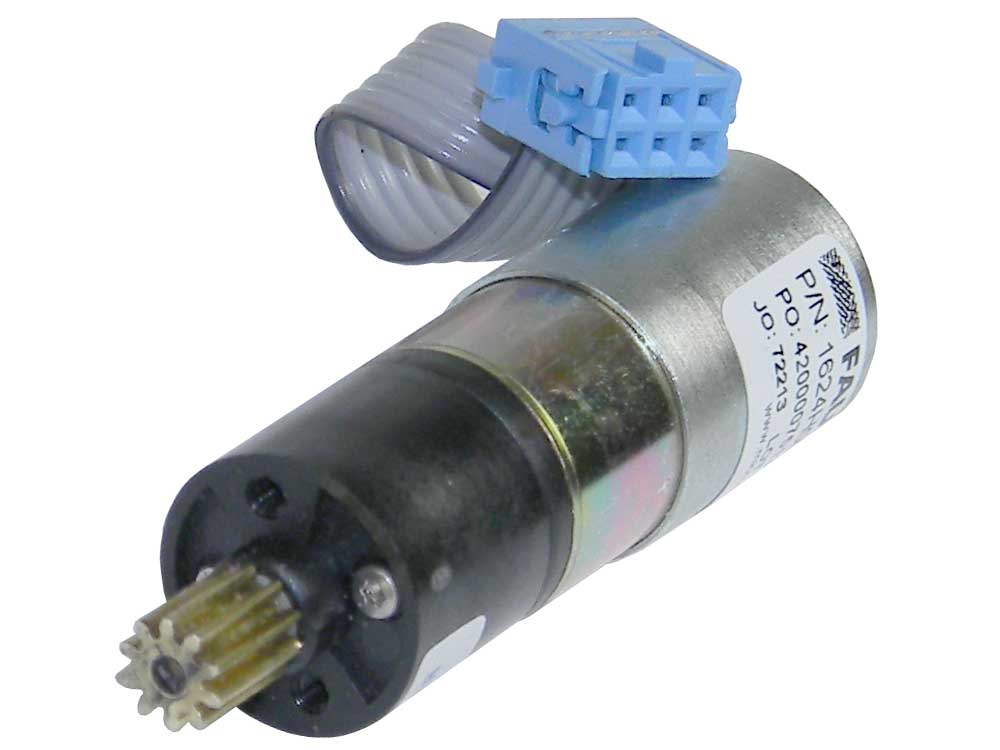

MFG: FAULHABER P/N: 1624H0013 Voltage: 6VDC RPM: ~66 RPM @ 6VDC/30mA No Load; 1.5A Stall
Instrument grade gearhead motor with 2 channel, 16 Pulse/Rev. encoder. Metal & plastic multi stage 141:1 gearhead. 3mm diameter X 8mm long shaft with a 10 tooth, 6mm dia. Brass gear. 2in. flat cable with a 0.1in pitch 2 X 3 header socket. Two 2-56 threaded mtg. holes. L: 1-15/16in. Body Dia: 5/8in. WT: .08
