6V Mini Pump - Air

6V Mini Pump - Air
Stock Number: 36683 MI
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item

Availibilty: In Stock   Units: 21

     Email this to a friend

Detailed Description

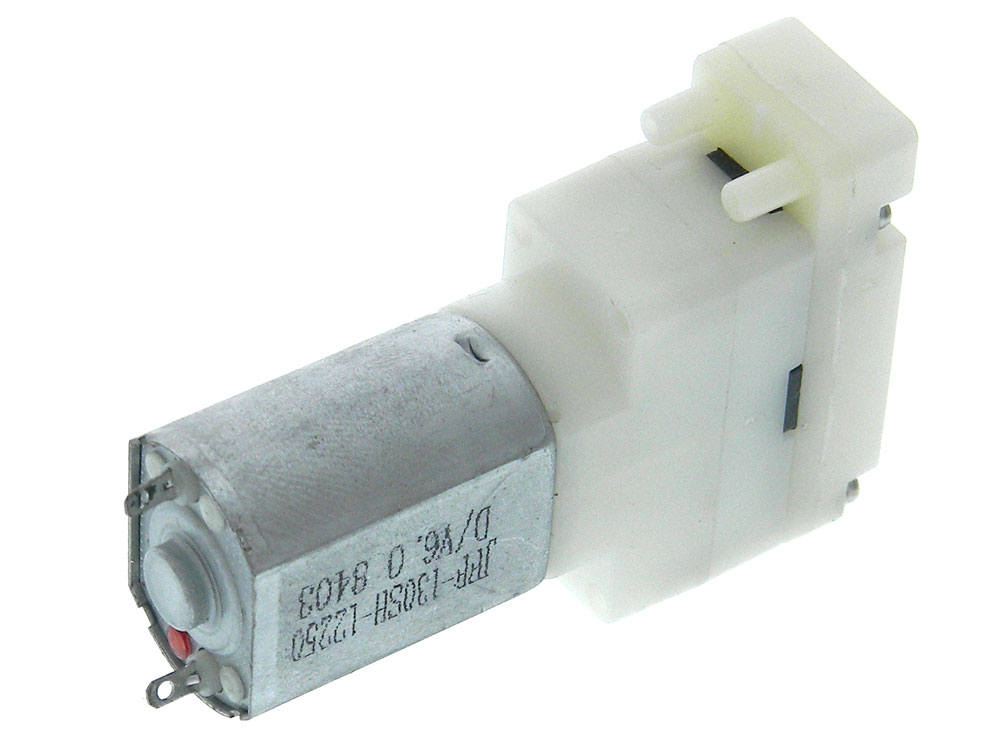

Mini pump. with Plastic body. For use in lab equipment
Model: HT1304PM
Power: 6VDC nom <850mA
Media: Air
Volume: ~5L/m (Freeflow)
Pressure: >130kpa (~18.8PSI)
Vacuum: <-55kpa (-8 PSI/-16"Hg)
Ports: 3mm O/D - 1.25mm I/D s mooth hose bib
Noise: ~65db @ 30cm
Solder Terminals
Red Dot: + Plus
No Dot: - Minus

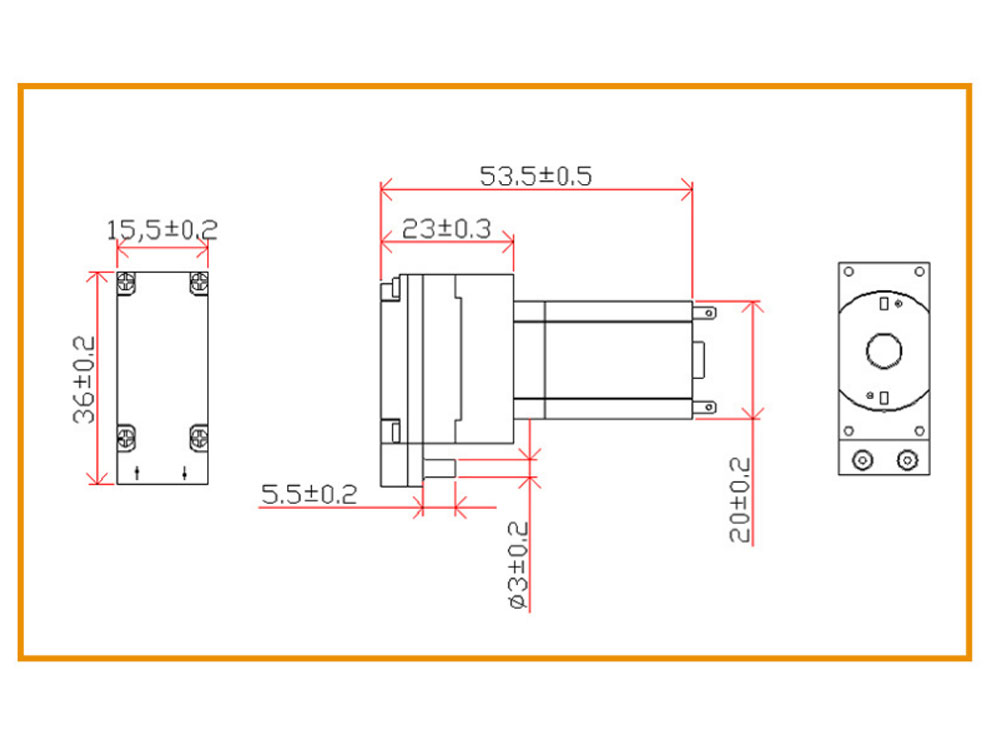

L: 2-1/8" Body H: 1-7/16" T: 5/8" WT: .07

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
does not work
Bought one just to test for future applications. Unfortunately, this one showed no vacuum and only 8 psi. No flow was observed. I took it apart and found that sealant on the top valve block appeared to block the flow passages.
- Doug A, NM
