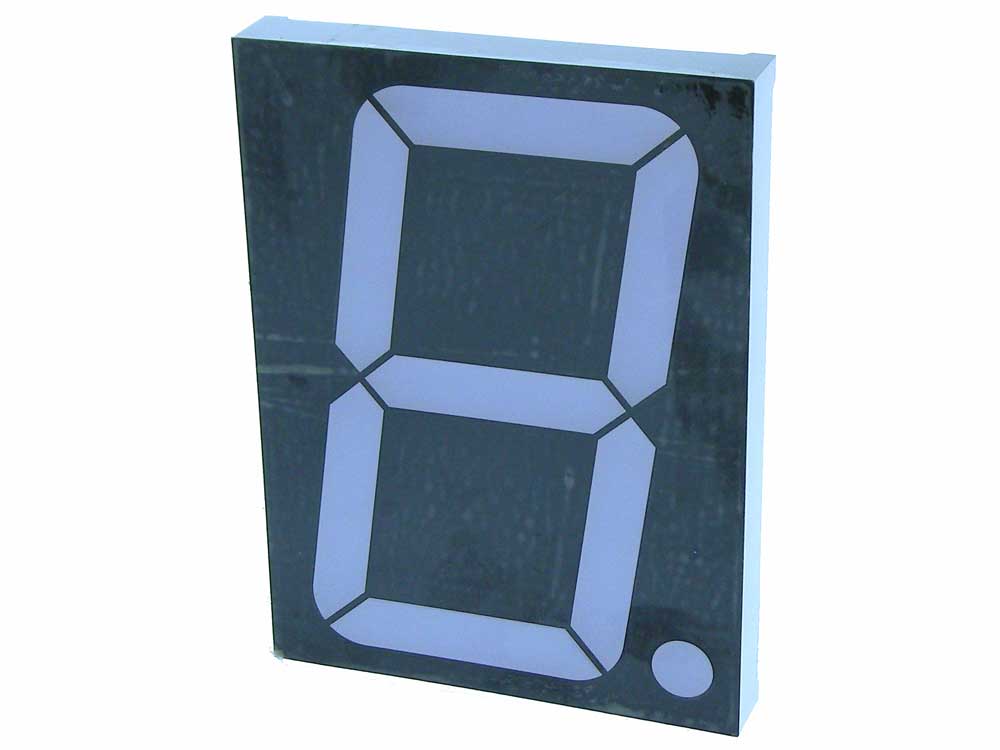

5in. Common Anode Red LED, 7 Segment Display


5in. Common Anode Red LED, 7 Segment Display
Stock Number: 38358 OP
  Be the first to review this item
$8.95


Availibilty: In Stock   Units: 56
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Super Large, 7 Segment, Common Anode LED display for signage and displays.
White Body with Black Face.
Character Height: 5in.
Segment Color: Red
NOTE: Requires a Current (20mA) Limiting Resistor for each Segment & DP
At 14 VDC use ~ 510-560 Ohm Resistor/Segment, 680 Ohm for DP
Forward Voltage Drop: ~12VDC/Segment
~7VDC/DP
Forward Current: 20mA (25max)/Segment & DP
H: 140mm (5-1/2”) W: 105mm (4-1/8”) D: 16mm (5/8”) WT: .4
