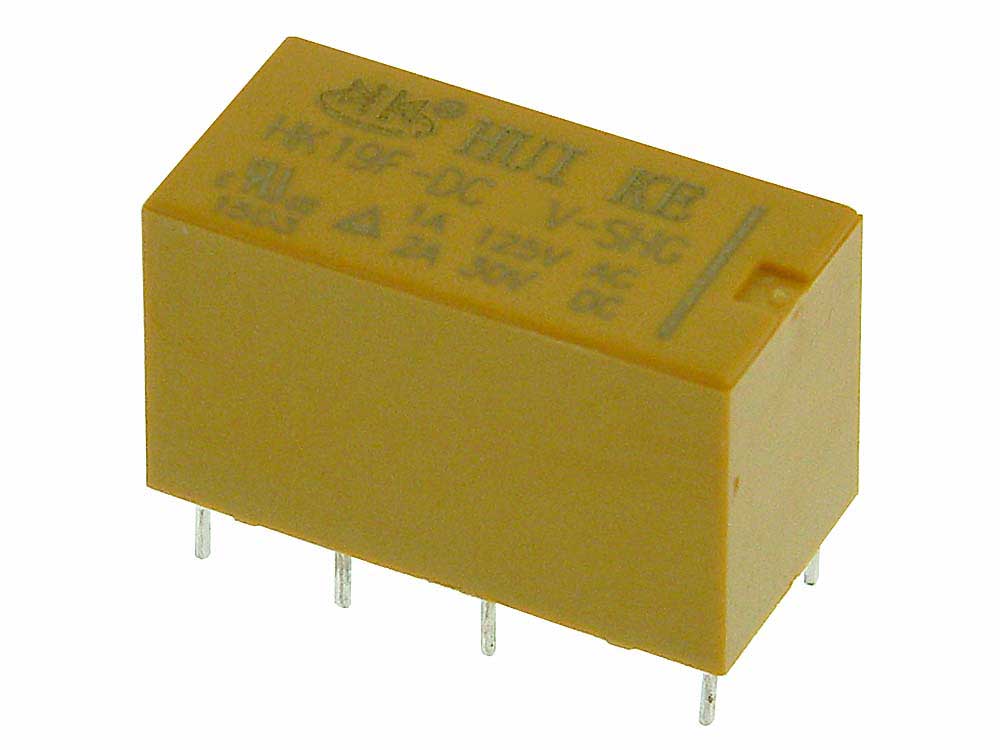

5VDC, DPDT DIP Relay

5VDC, DPDT DIP Relay

32556-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 32556 RL
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$1.29
Special Pricing
 Buy 10  for $0.99 each
 Buy 250  for $0.83 each


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

MFG: HUI-KE
P/N: HK19F-DC-5V-SHG
COIL: 5VDC/120 Ohm/0.2W
CONTACT RATING: 1A@125VAC/2A@30VDC
ACTION: DPDT
DIP Socket./PC Mount General purpose sealed relay.
uULc/VDE listed, RoHS compliant
L: 5/8” W: 3/8” H: 1/2” WT: .01

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
Check the pinout
Low cost, high reliability, consistent product. I bought a couple of these for prototyping, and then bought a few more to keep on hand because they fit my needs so perfectly. Check the pinout on the provided datasheet, because the common is the pin closest to the coil, as opposed to between the contacts like most relays of this form factor.
- Steven Gann, FL
