5M Medium White LED Lighting Strip, 12VDC, Indoor/Outdoor

5M Medium White LED Lighting Strip, 12VDC, Indoor/Outdoor

33111-large.jpg  33111-1.jpg  33111-2.jpg  33111-3.jpg    California Proposition 65 Warning
Stock No: 33111 OP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item

Availibilty: In Stock   Units: 22

Email this to a friend

 Detailed Description

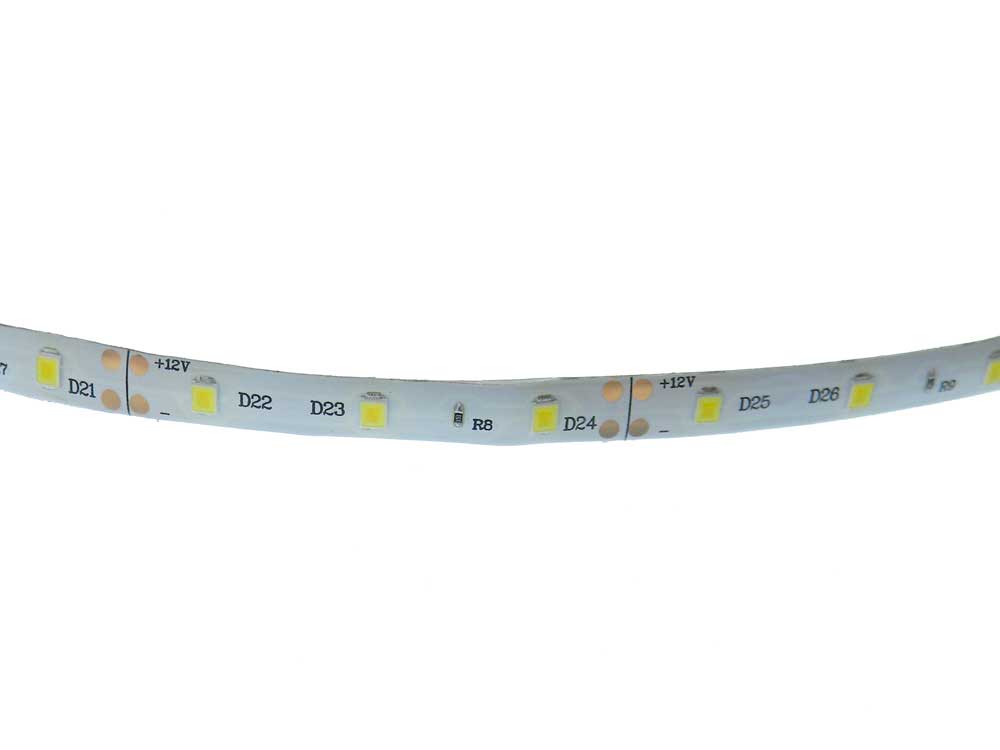

5m long, Weather resistant IP-65, PVC encapsulated, flexible strip of LEDs on 17mm C/C (300 Total LEDs).120 deg. view angle. 3in. leads on one end with 5.5/2.1mm Coaxial Jack. Can be cut every 3 LEDs (50mm)
Input: 12VDC @ <1.0A
Individual LED Intensity: ~800mcd
Luminous Flux/1m: ~600 lumens
CCT: ~3500-4500K Medium White
Peel-N-Stick Backer. CE/RoHS
L.: 5m W: 8mm T: 2mm WT: .22

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Medium White Light Quality - Yellow Shift Solved
Good prior comment on color uniformity at the far end. I ran a test, powering the strip at one end with 12.0VDC and here is what we found: Strip consumed 0.91 amps. Uniformity at the far end was more yellow than at the near end. As a test, I split the strip into 10 sections 19.5 long at the solder bridges. Putting these 10 strips in parallel resulted in 1.55 amps of current draw and no uniformity problem. The strips were adhered to a 0.100 x 3 x 20 piece of aluminum. I did have one segment of 3 leds that failed after about 30 seconds of power-up, and the last led was curled too tightly on the real creating a kink in the silicone elastomer causing it not to stick down well. Some clear RTV should solve this. Later I ran it up to 12.6VDC and it consumed 1.84 amps. Running it for a few hours more yielded no additional failures in the LEDs. Be aware, the aluminum plate heats up, so make sure to have some way to dissipate the heat. After two hours of sitting on a counter no air circulation from the back, it was very warm to touch. The LEDs are powered in groups of 3, so a lost of one segment is only about 1% of the light output. Net: Powering up the strip from both ends or using it as shorter segments works pretty good. Running several strips in parallel minimizes the impact of a loss of a section of LEDs.
- Dr Joe Fatula, CA
Inconsistant lighting
The first few feet of the strip has more of a yellow color then it changes to white. One segment of LEDs or 3 lights does not work.
- Brian Heale, NJ
