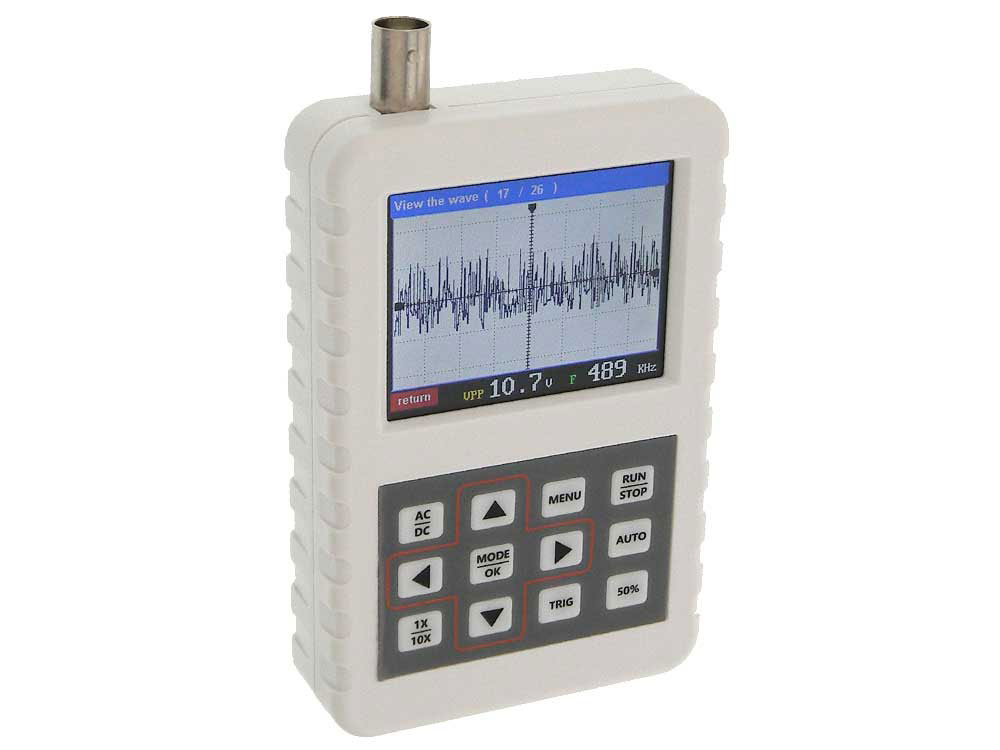

Full function, high performance handheld mini oscilloscope with high resolution 2.4 inch 320x240 LCD screen.
3hr. run time on charged battery
One button AUTO, the waveform can be displayed without complicated adjustments. Waveform file manager supports thumbnail browsing, viewing, detail view, delete and other functions.
Day mode (White Background) and Night mode (Black Background)
Measures up to 11 parameters:VPP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Time
Analog bandwidth: 5MHz
ADC precision: 8bits
Maximum real time sampling rate: 20MS/s
Vertical sensitivity: 50 mV/div ~ 200 V/div
Input: BNC Jack
Input impeadance: 1Mohm
Horizontal time base range: 50S/div ~ 250nS/div
Trigger: Single, Normal or Automatic
Trigger Edge: Selectable Rising or Falling
Coupling: AC or DC
Maximum Input Voltage: 40V (1X probe), 800 V (10X probe)
AC, DC or DC+AC)
Memory: 16M storage space, 500 waveform pictures max
Power supply: 1200 mAh lithium battery

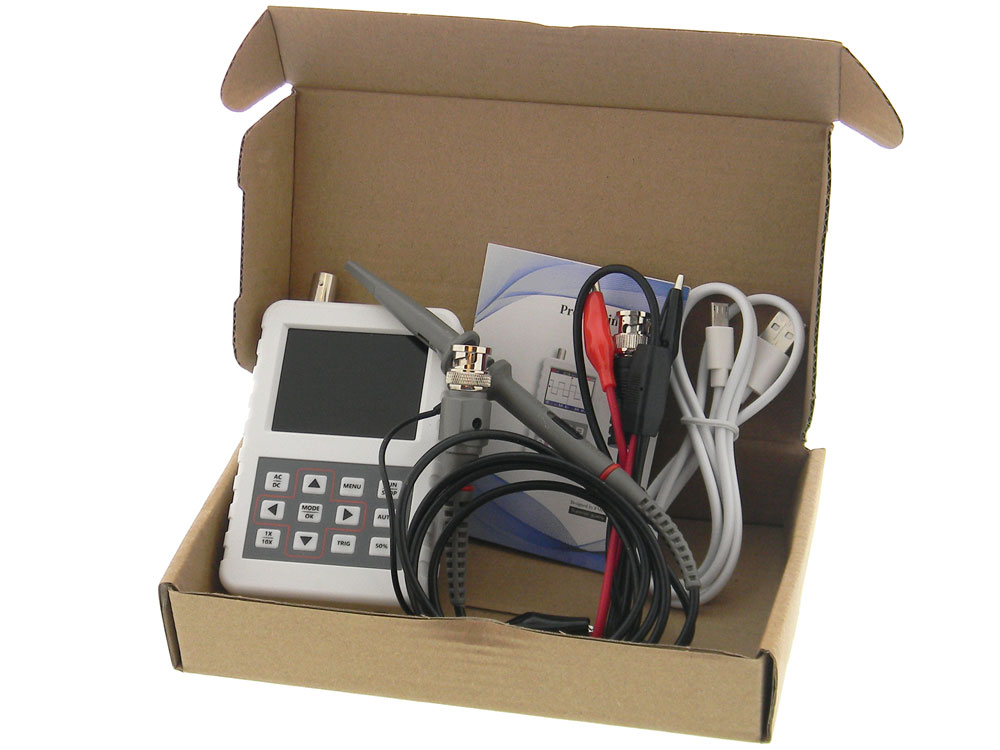

Includes 5ft. USB Charger cable & 20in. Alligator Clip cable H: 4-3/4" O/A W: 2-7/8" T: 1" WT: .6
