5 MHz Handheld Mini DSO Oscilloscope with 1-10x Probe

5 MHz Handheld Mini DSO Oscilloscope with 1-10x Probe

35906-large.jpg  35906-1.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35906 TE

Be the first to review this item
$79.95


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

View PDF Data Sheet
DATA SHEET

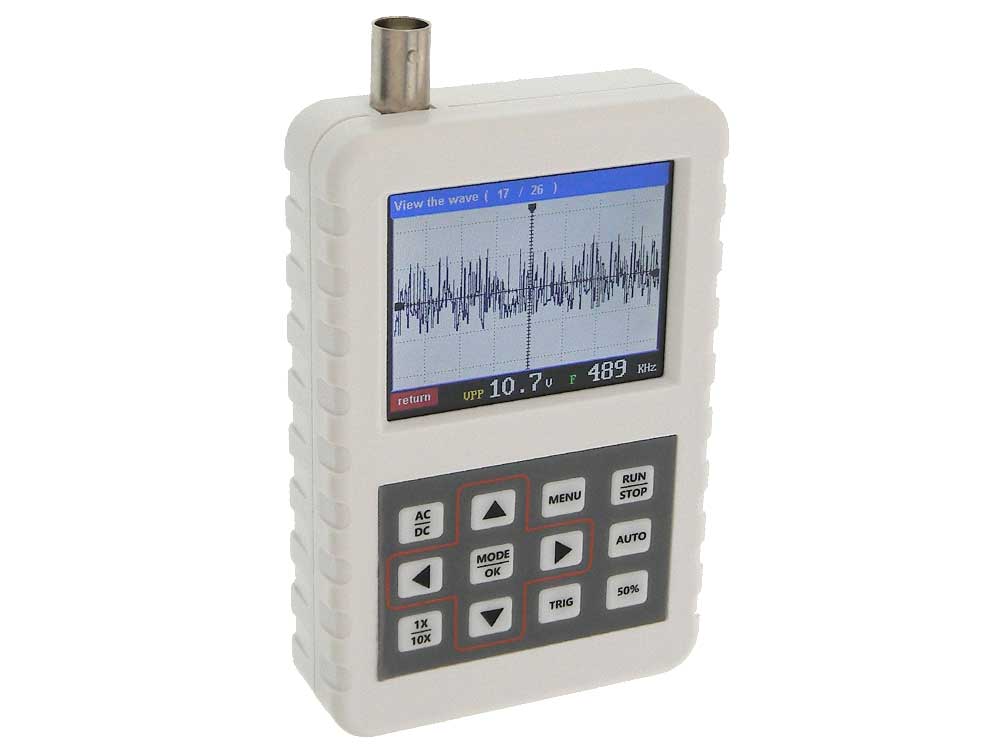

Full function, high performance handheld mini oscilloscope with high resolution 2.4 inch 320x240 LCD screen.
One button AUTO, the waveform can be displayed without complicated adjustments. Waveform file manager supports thumbnail browsing, viewing, detail view, flip, delete and other functions.
Day mode (White Background) and Night mode (Black Background)
Measures up to 11 parameters:VPP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Time
Analog bandwidth: 5MHz
ADC precision: 8bits
Maximum real time sampling rate: 20MS/s
Vertical sensitivity: 50 mV/div ~ 200 V/div
Input: BNC Jack
Input impeadance: 1Mohm
Horizontal time base range: 50S/div ~ 250nS/div
Trigger: Single, Normal or Automatic
Trigger Edge: Selectable Rising or Falling
Coupling: AC or DC
Maximum Input Voltage: 40V (1X probe), 800 V (10X probe)
AC, DC or DC+AC)
Memory: 16M storage space, 500 waveform pictures max
Power supply: 1200 mAh lithium battery

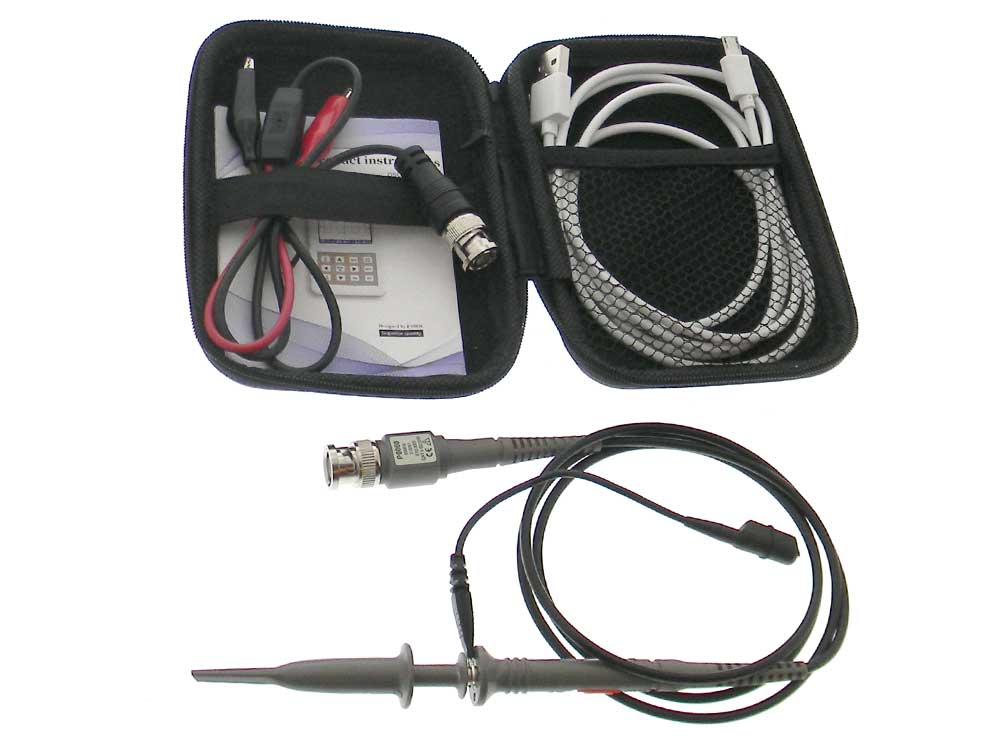

Includes 5ft. USB Charger cable, 20in. Alligator Clip cable
Padded Plastic Storage Case
H: 4-3/4" O/A W: 2-7/8" T: 1" WT: .6

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
